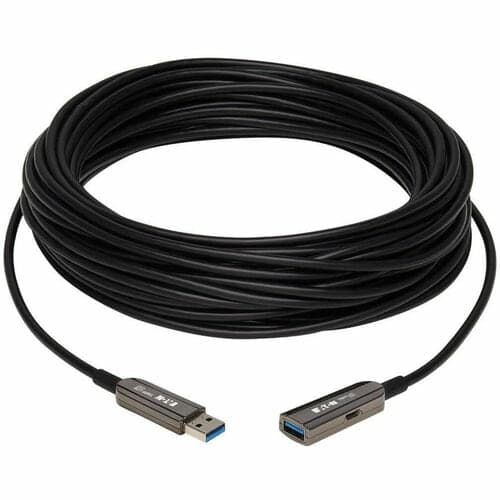

30M USB-A FIBER ACTIVE OPTICAL CABLE EXTENSION REPEATER M/F
30M USB-A FIBER ACTIVE OPTICAL CABLE EXTENSION REPEATER M/F
Key Features
- Adds 30 m (98 ft.) to your existing connection to provide flexibility in placing devices
- Fiber optic construction ideal for long-distance connections not supported by copper
- Supports USB 3.2 Gen 1 speeds up to 5 Gbps to ensure fast data transfers
- CL3-rated PVC cable jacket meets required standards for commercial in-wall installation
- Slim, flexible cable easily installs around corners and through hard-to-reach areas
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Active Optical Cable Extension Connects Servers, Hard Drives and Other USB Components

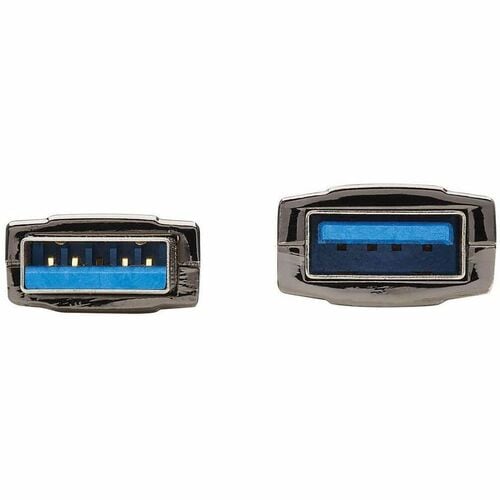

This USB 3.2 Gen 1 extension/repeater cable (M/F) attaches to your current USB cable to extend your USB connection by 30 meters (98 feet). The U330F-30M-G1 connects computers, servers, external hard drives, surveillance cameras and other devices with a USB-A port. Note: You must first connect the USB- A male connector, then the USB-A female connector.
Supports USB 3.2 Gen 1 Speeds for Reliably Fast Data Transfers
This cable supports USB 3.2 Gen 1 data transfer rates up to 5 Gbps, which is 10 times faster than USB 2.0. If you need an extra signal boost, connect the cable's USB Micro-B port to a laptop, hub or USB wall charger with the included cable. Note: This USB cable is not backward compatible with USB 2.0 or USB 1.1 devices.
Active Optical Cables Are Easier to Install than Copper
Because the fiber cable is slimmer and more flexible than standard copper USB cables, the U330F-30M- G1 is easier to install around corners and in hard-to-reach spaces behind equipment. It also transmits
USB signals over longer distances than copper with no signal loss.
30 m (98 ft.) Cable Lets You Design an Application to Your Custom Specifications
This long cable allows you greater flexibility in placing your USB components. For instance, your desktop computer may be connected to a security camera or a server located in a different room away from your office or in a central location where others have access to it.
Premium Construction for Superior Performance
The PVC jacket carries a CL3 rating, making it suitable for in-wall cable installation in residential or commercial settings. Gold-plated contacts provide maximum conductivity and minimum data loss to guarantee a clear transmission free of interference. The plug-and-play U330F-30M-G1 supports all major operating systems, including Windows, macOS and Linux
Tech Specs
| Features | Signal Booster |
|---|---|
| Brand Name | Tripp Lite series |
| Cable Type | Fiber Optic |
| Jacket Type | CL3 |
| Cable Length | 98 ft |
| Jacket Color | Black |
| Manufacturer | Eaton Corporation |
| Product Name | U330F-30M-G1 Fiber Optic Extension Data Transfer Cable |
| Product Type | Data Transfer Cable |
| Product Model | U330F-30M-G1 |
| Shipping Width | 9.65" |
| Connector Color | Light Gray |
Show all 31 specsShow fewer
| Contact Plating | Gold |
|---|---|
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shipping Height | 2.56" |
| Device Supported | Server |
| Package Contents | <ul> <li>U330F-30M-G1 Fiber Optic Extension Data Transfer Cable</li> <li>USB Micro-B to USB-A booster Cable, M/M, 3 ft</li> </ul> |
| Connector Plating | Nickel |
| Country of Origin | Vietnam |
| Data Transfer Rate | 5 Gbit/s |
| American Wire Gauge | 24 AWG |
| Cable Characteristic | Extension Cable |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | U330F-30M-G1 |

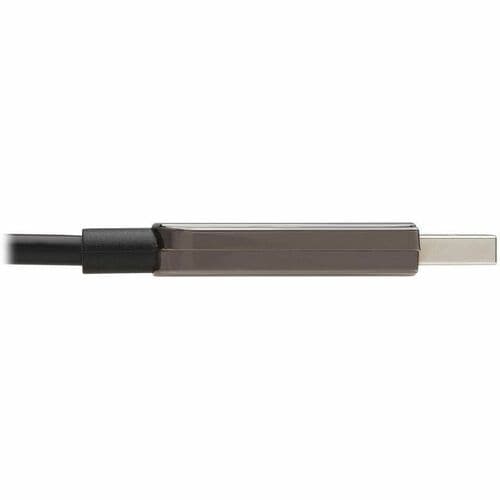

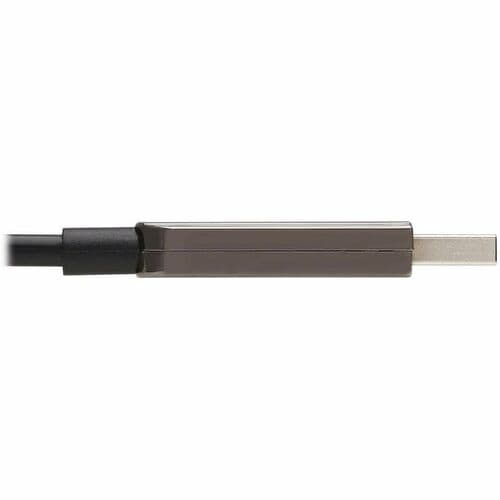

| Connector Type on First End | USB 3.2 (Gen 1) Type A - Male |
| Connector Type on Second End | Micro USB Type B - Female |
| Manufacturer Website Address | http://www.eaton.com |
| Shipping Weight (Approximate) | 2.21 lb |
| Connector on First End Details | 1 x USB 3.2 (Gen 1) Type A - Male |
| Connector on Second End Details | 1 x Micro USB Type B - Female |
