2POST RELAY RACK SHELF 13IN VENTED ADJ FLANGES CONFIGURABLE

SKU: E93431VPN: 2USHL-020HALF-13V

Out of Stock

$59.95

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

CONFIGURABLE MOUNTING OPTIONS: Shelf position is adjustable along the center mounting bracket for custom placement
REMOVABLE EQUIPMENT STOPS: Easily adjust or remove the flanges for equipment stability or versatility
VENTED DESIGN: Allows for optimal airflow to prevent equipment overheating
HEAVY-DUTY SUPPORT: Holds up to 150 lbs (68 kgs) of equipment, ideal for large electronics
UNIVERSAL FIT: Compatible with round, threaded, or square holes in any standard EIA 19” 2Post relay or telecom rack

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

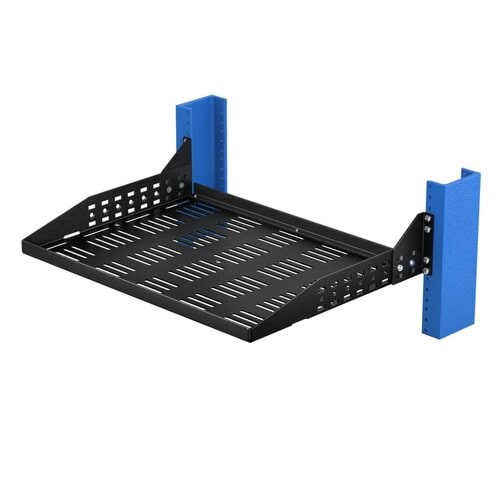

The RackSolutions 2U 2Post Adjustable Center Mount Shelf offers a fully configurable design, making it the perfect choice for mounting a wide range of equipment in standard EIA 19" 2Post relay and telecommunications racks. With a shelf depth of 13 inches and a weight capacity of 150 lbs (68 kgs), this shelf provides strong support while allowing custom configuration along the mounting bracket. The flanges can be adjusted in 1" increments or removed for added flexibility, and the vented design ensures efficient airflow to keep your equipment cool. The shelf also includes slots for equipment straps and is compatible with 3” to 8” uprights, as well as round, threaded, or square hole racks.

Tech Specs

2POST RELAY RACK SHELF 13IN VENTED ADJ FLANGES CONFIGURABLE specifications
Depth	13"
Width	17.5"
Brand Name	Rack Solutions
Rack Width	19"
Rack Height	2U
Color Family	Black
Manufacturer	Innovation First International, Inc
Product Name	Relay Rack Shelves
Product Type	Rack Shelf
Compatibility	<ul><li>EIA-310</li></ul>
Product Color	Black
Package Contents	<ul><li>12-24 and 10-32 screws</li><li>Relay Rack Shelves</li></ul>

Show all 17 specs

Product Material	Steel
Additional Information	<ul><li>Flanges Installed Up</li><li>The equipment can be deeper than the rack mount shelf as long as the equipment is installed on the opposite side of the flanges</li><li>The flanges are used to increase the load bearing capacity of the rack mount shelf or used to prevent equipment movement</li><li>Rack Shelves can mount up-side-down</li><li>Vented, Adjustable Flanges</li><li>Hole-to-Hole spacing is 18-5/16in</li><li>Shelf depth is measured from front to rear excluding flanges</li></ul>
Maximum Weight Capacity	150 lb
Manufacturer Part Number	2USHL-020-HALF-13V
Manufacturer Website Address	http://www.racksolutions.com
