EATON TRIPP LITE SERIES CONNECTIVIT

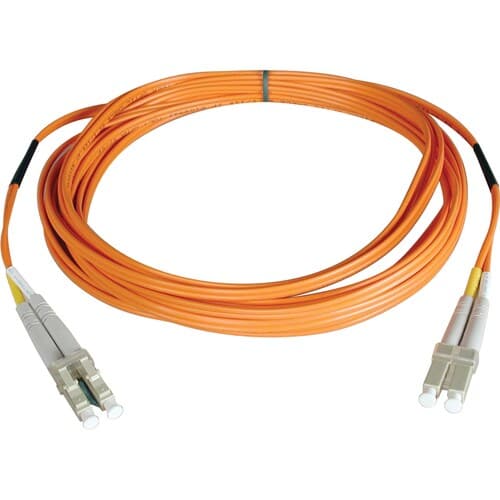

25M FIBER OPTIC/FIBRE CHANNEL CABLE LC/LC 50/125 DUPLEX MMF

SKU: F62064VPN: N520-25M

25M FIBER OPTIC/FIBRE CHANNEL CABLE LC/LC 50/125 DUPLEX MMF

Key Features

  • Perfect for use with Fibre Channel Controller Cards and Switches
  • Attenuation loss meets or exceeds the latest industry standards
  • Higher bandwidth, optimized for gigabit and 10Gbps networks
  • Backward compatible with 62.5 micron fiber
  • Built-in headroom for future applications
  • Premium PVC multimode patch cables
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Tripp Lite's 25-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 30, and 50 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-" , and for SC-SC, search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Tech Specs

25M FIBER OPTIC/FIBRE CHANNEL CABLE LC/LC 50/125 DUPLEX MMF specifications
Brand NameTripp Lite series
Cable TypeFiber Optic
Jacket TypePlenum
Cable Length82 ft
ManufacturerEaton Corporation
Product NameDuplex Fibre Channel Patch Cable
Product TypeNetwork Cable
Product ModelN520-25M
Shipping Width8"
Shipping Height10"
Package Contents<ul><li>Duplex Fibre Channel Patch Cable</li><li>25M Duplex MMF Cable LC/LC 50/125 Fiber</li></ul>
Country of OriginChina
Show all 23 specs
Cable CharacteristicPatch Cable
Additional Information<ul><li>Fiber type: all glass graded index</li><li>Core diameter: Two 50+/-3 microns</li><li>CLAD diameter: 125+/-2 microns</li><li>Primary coating diameter: 245+/-15 microns</li><li>Primary coating material: acrylate</li><li>Secondary coating diameter: 900+/-50 microns</li><li>Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum</li><li>Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum</li><li>Proof test level: 100,000 PSI</li><li>Insertion loss testing performed on every connector (0.2db typical) and provided with cable</li></ul>
Manufacturer Part NumberN520-25M
Certifications & Standards<ul><li>FDDI</li><li>OFNR rated</li></ul>
Connector Type on First EndLC - Male
Connector Type on Second EndLC - Male
Manufacturer Website Addresshttp://www.eaton.com
Shipping Weight (Approximate)4.64 oz
Connector on First End Details2 x LC - Male
Connector on Second End Details2 x LC - Male
Fiber Optic Cable Core/Cladding Specification50/125 µm
