240V EXTENDED BATTERY MODULE SELECT EATON 9PX G2 UPS SYSTEMS 3U

SKU: SN0123VPN: 9PXEBM240RTG2

240V EXTENDED BATTERY MODULE SELECT EATON 9PX G2 UPS SYSTEMS 3U

240V EXTENDED BATTERY MODULE SELECT EATON 9PX G2 UPS... Key Features

  • Solution for a battery that is about to expire, so you can replace it whenever needed
  • Valve-regulated/User Replaceable battery characteristics provide optimal charging results with added usability
  • In terms of cost per watt hours, it is an inexpensive choice providing efficient power
  • With 240 V DC battery, never run out of power and keep your UPS operational at all times
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

240V EXTENDED BATTERY MODULE SELECT EATON 9PX G2 UPS... Overview

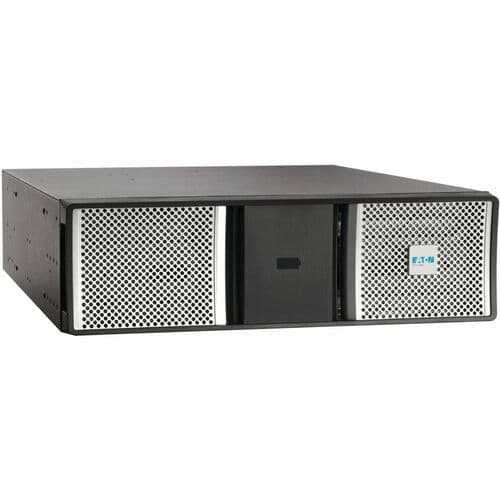

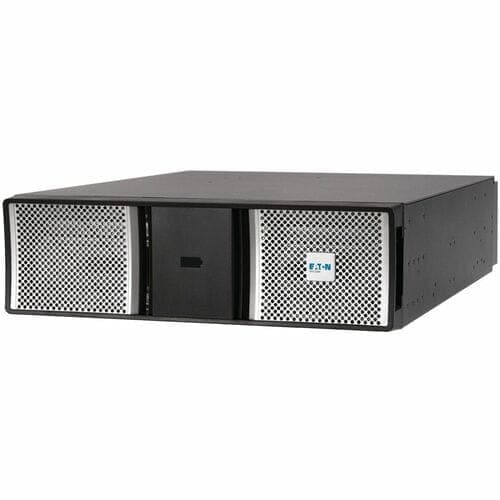

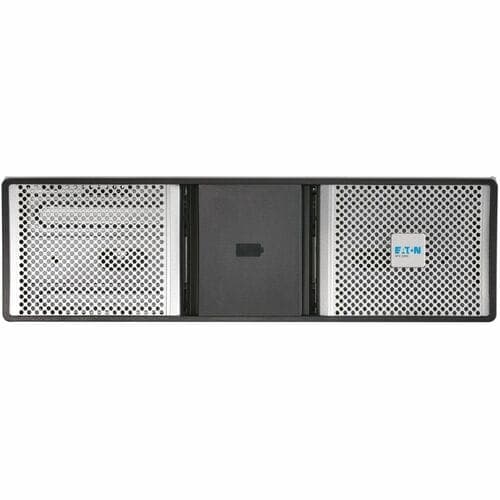

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

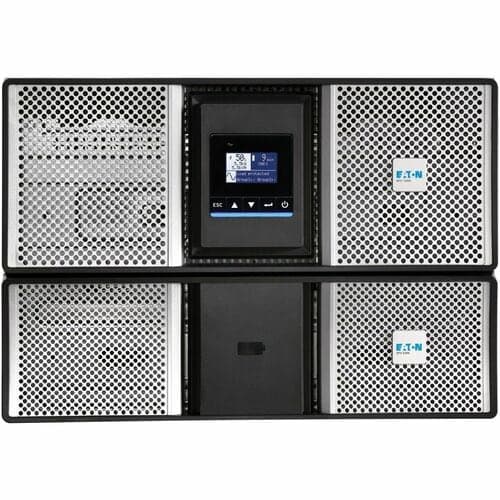

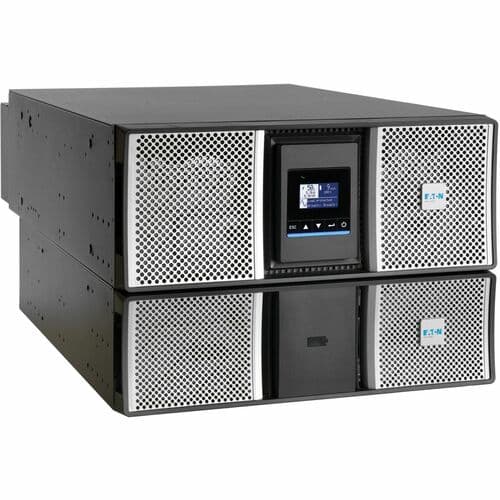

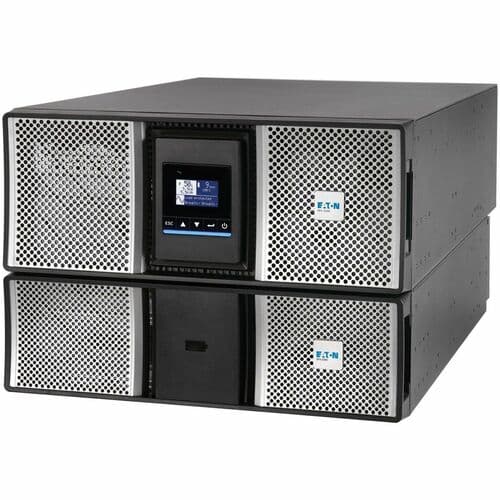

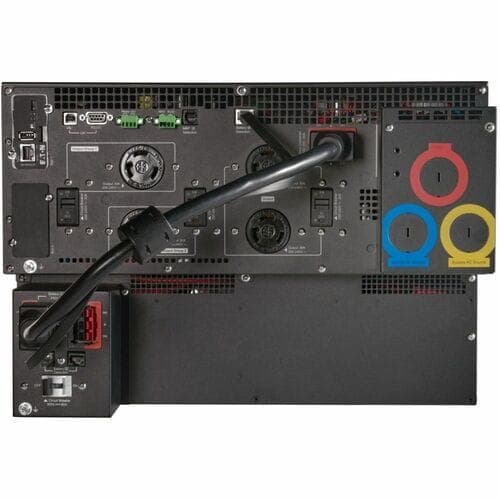

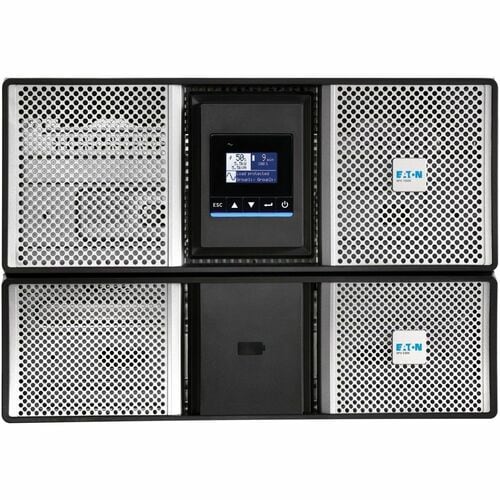

The 9PXEBM240RTG2 offers extended battery runtime when used in conjunction with Eaton's 9PX8KG2, 9PX8KTF5G2, 9PX11KG2, 9PX11KTF11G2, 9PX11KTF11MG2, and 9PX11KTF5G2 9PX UPS systems. It can also be daisy-chained for a maximum of 12 auto-detected battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

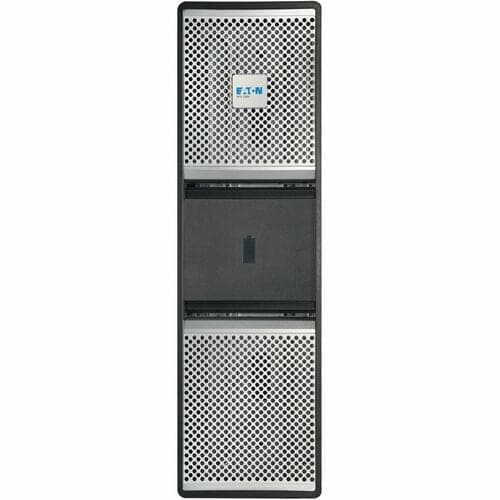

Supports 3U Rack or Tower Installation

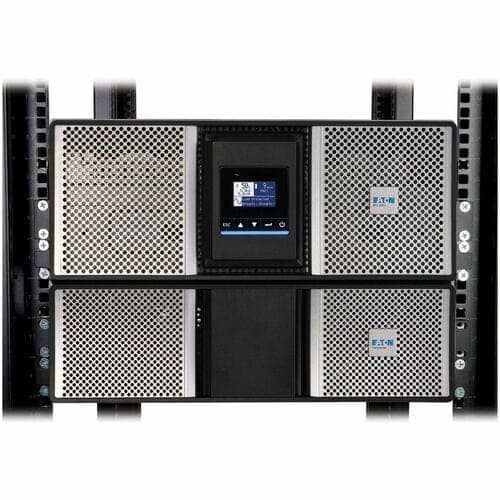

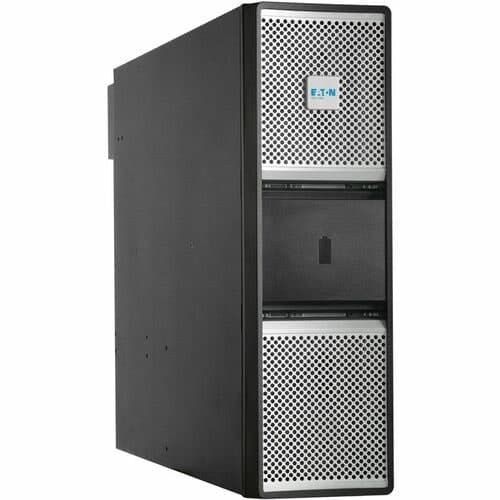

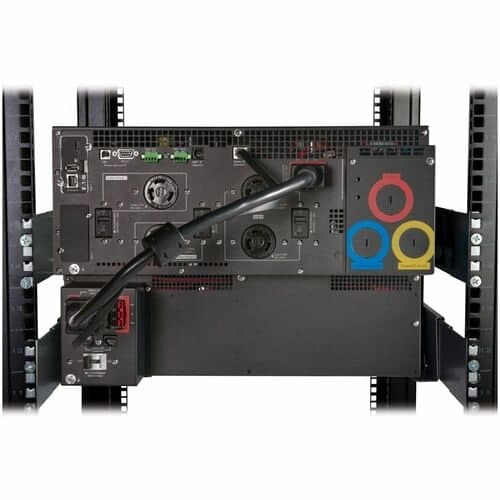

This backup battery pack's multi-use form factor supports mounting in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands. For installation in 2-post racks, one RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.

240V EXTENDED BATTERY MODULE SELECT EATON 9PX G2 UPS... Tech Specs

240V EXTENDED BATTERY MODULE SELECT EATON 9PX G2 UPS SYSTEMS 3U specifications
Depth26.4"
Width17.3"
Height5.1"
Brand NameEaton
Energy StarYes
Battery SizeProprietary Battery Size
ManufacturerEaton Corporation
Product Name9PXEBM240RTG2 Battery Unit
Product TypeBattery Unit
Compatibility<p><strong>Eaton's 9PX G2 UPS Systems:</strong></p><ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX8KG2 </li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX8KTF5G2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX11KG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX11KTF11G2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX11KTF11MG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX11KTF5G2</li></ul>
Hot SwappableYes
Product Model9PXEBM240RTG2
Show all 24 specs
Output Voltage240 V DC
Package Contents<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PXEBM240RTG2 Battery Unit</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>External Battery Cable, 1 ft. (0.3 m)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Tower Support Stands</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Rack-mounting Hardware</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Quick Start Guide</li></ul>
Battery ChemistryLead Acid
Country of OriginPhilippines
Weight (Approximate)143 lb
Battery CharacteristicsValve-regulated/User Replaceable
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Manufacturer Part Number9PXEBM240RTG2
Certifications & Standards<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>NOM (Mexico)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>cUL Listed</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>EN 62040-2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>CE (Europe)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>FCC (USA)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>FCC Part 15 Class A (USA)</li></ul>
Manufacturer Website Addresshttp://www.eaton.com
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
