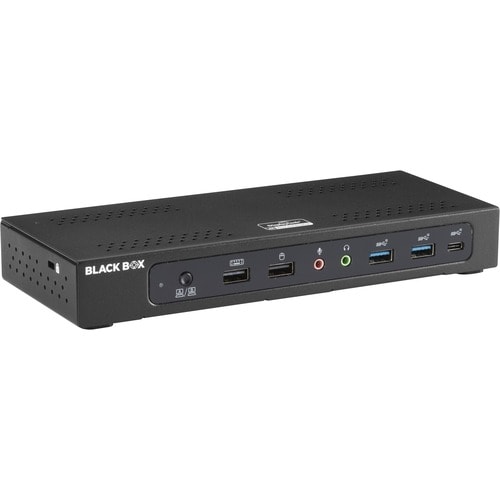

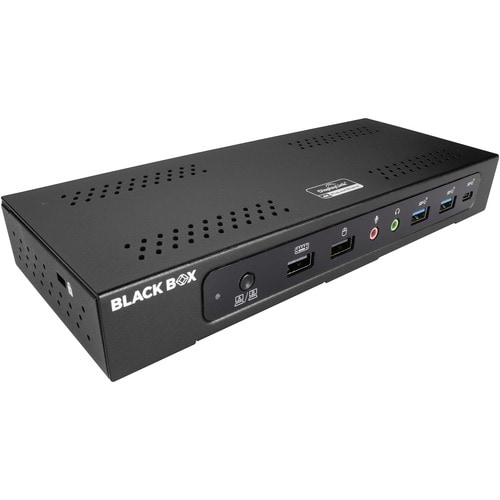

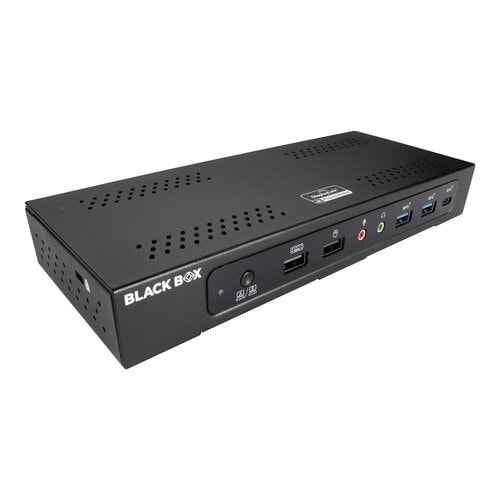

230W USB-C 4K DUAL DOCKING STATION

SKU: 08TG30VPN: USBC2000-4KDUAL

In Stock

$320.24

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Supports DP resolution up to 4K x 2K at 60 Hz and HDMI resolution up to 4K x 2K at 60 Hz (source needs to support DP1.4, otherwise, 4K 30 Hz only); also backward-compatible with HD 1920 x 1080
Includes 2 USB C host ports and cables
2 super-speed USB 3.2 Gen2x1 Type A ports and 1 super-speed USB 3.2 Gen2x1Type C port for peripherals support data transfer speeds up to 10 Gbps
High-speed USB supports charging up to 200 W (100 W per USB-C host port)

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

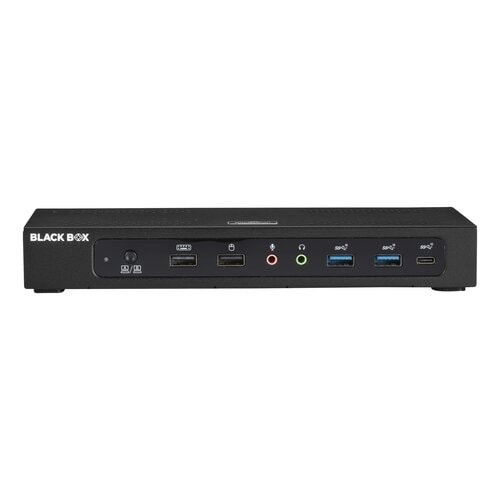

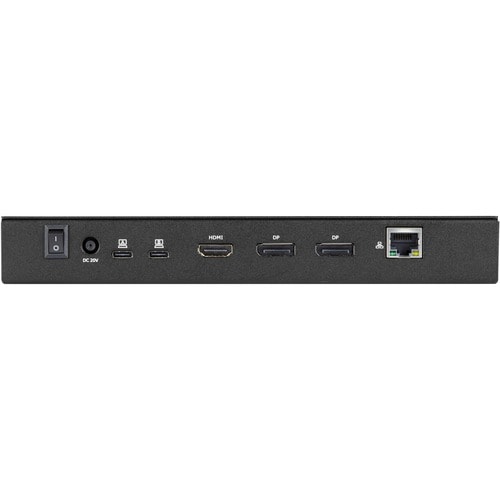

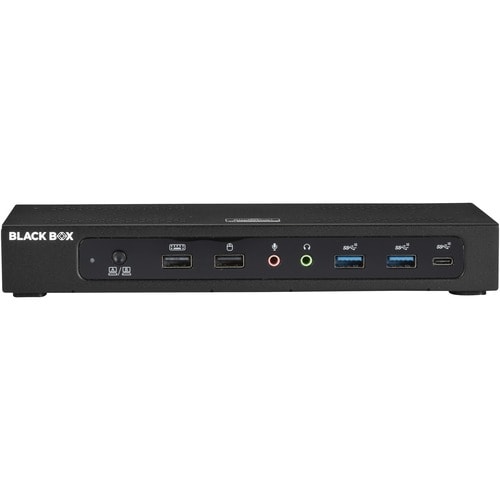

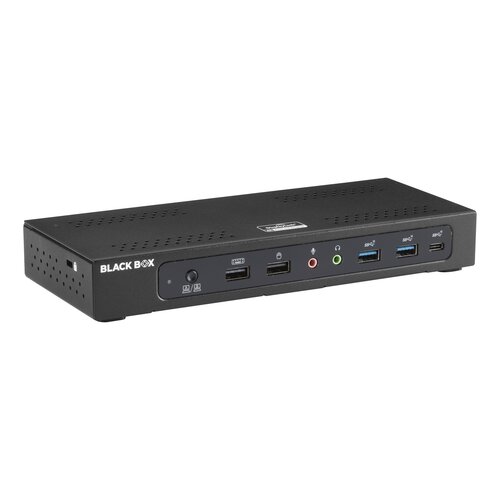

Portable, mini USB-C docking station with dual ports and KM sharing The Black Box USB-C Docking Station - 4K Dual (USBC2000-4KDUAL) with PD/Alt/KM sharing for laptops merges cutting-edge technology and high-quality hardware with innovative design elements. Connect two 4K DisplayPort monitors and one 4K HDMI monitor while sharing one keyboard and mouse with two MacBook Pro or Windows laptop hosts with this multi-port adapter. The docking station includes two USB C host ports and cables one audio-in and one audio-out port for the switched host one 4K HDMI and two 4K DisplayPort video ports a LAN port two super-speed USB 3.2 Gen2x1 Type A ports and one super-speed USB 3.2 Gen2x1 Type C port for peripherals one keyboard port and one mouse port. Supports Dual Host and Screen-Sharing With the KVM sharing features add on the docking station allows the user to switch the display (HDMI/DP/DP) monitors/USB-peripherals via multi-switch mode with a dual host (desktop/laptop/tablet) at the same time. With the KM sharing feature the USBC200-4KDUAL enables the user to move the mouse/touchpad cursor between different hosts. Super-Fast and Backward-Compatible The USB-C docking station supports USB 3.2 Gen2x1 (10 Gbps) data transmission. Even better it's backward-compatible with USB 3.0 and 2.0 so you aren't limited by legacy hardware. Includes USB Host Charging Ports USB-C host 1 and host 2 ports can charge device 1 and device 2 at the same time. Each device draws 100 W power for a total of 200 W maximum for both host ports.

Tech Specs

230W USB-C 4K DUAL DOCKING STATION specifications
HDMI	Yes
Depth	1.30"
Width	8.60"
Height	3.50"
Brand Name	Black Box
USB Type-A	Yes
USB Type-C	Yes
DisplayPort	Yes
Color Family	Black
Manufacturer	Black Box Corporation
Product Name	USB-C Docking Station - 4K, Dual
Product Type	Docking Station

Show all 43 specs

Product Color	Black
Host Interface	USB 3.2 (Gen 2) Type C
Network (RJ-45)	Yes
Device Supported	Desktop PC
Limited Warranty	1 Year

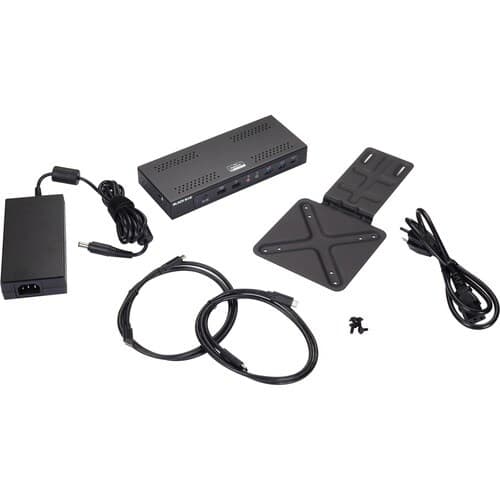

Package Contents	<ul> <li>USB-C Docking Station - 4K, Dual</li> <li>1 x USB-C Triple Video Docking Station W/PD</li> <li>2 x USB-C to C Cable</li> <li>1 x Power Adapter, 230 W (20 V/11.5 A)</li> <li>1 x Docking Station VESA Mount</li> </ul>
Country of Origin	Taiwan
Power Source Type	Power Supply
USB Type-C Detail	3 x USB 3.2 Gen 2 Type C Female
DisplayPort Version	1.4
Ethernet Technology	Ethernet
Number of HDMI Ports	1
Weight (Approximate)	1.50 lb
Number of RJ-45 Ports	1
Screen Mode Supported	4K
Supported Resolutions	4096 x 2160
Number of DisplayPorts	2
Connectivity Technology	Wired
Number of USB 2.0 Ports	2
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Kensington Security Slot	Yes
Manufacturer Part Number	USBC2000-4KDUAL
Total Number of USB Ports	7
Number of USB Type-A Ports	4
Operating System Supported	Mac OS X 10.12 Sierra
Manufacturer Website Address	http://www.blackbox.com
Maximum Power Supply Wattage	230 W
Number of Displays Supported	2
Headphone/Microphone Combo Port	Yes
Number of USB 3.2 Gen 2 Type-A Ports	2
