2-PORT SERIAL PCIE CARD - PCI EXPRESS RS232/RS422/RS485 CARD

SKU: JL9942VPN: 2S232422485-PC-CARD

In Stock

$87.41

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

2-PORT PCIE SERIAL CARD: On-board DIP switches allow each DB9 serial port to operate in its own independent mode, enabling the connection of RS-232, RS-422, and RS-485 devices; LED indicators to monitor data transmit/receive status
CONFIGURABLE POWER: Dual-Port PCI Express Serial Adapter Card features configurable power of 12V (1.5A per port), 5V (1.5A per port), or no power (RI) over pin 9 via auxiliary SATA power; Per-Port power modes are individually configurable via jumpers
APPLICATIONS: Ideal for desktops and servers, with a wide range of uses such as point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes; DB9 ports work with screw-locking cables

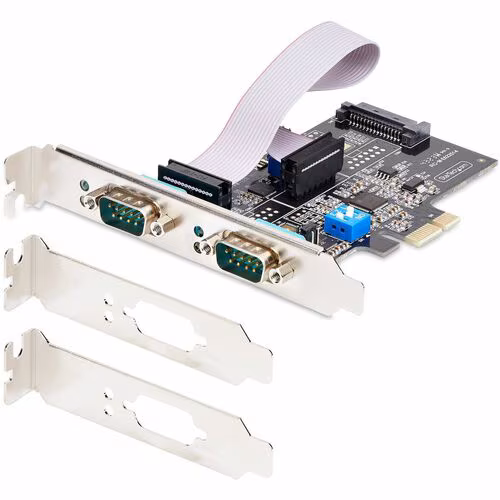

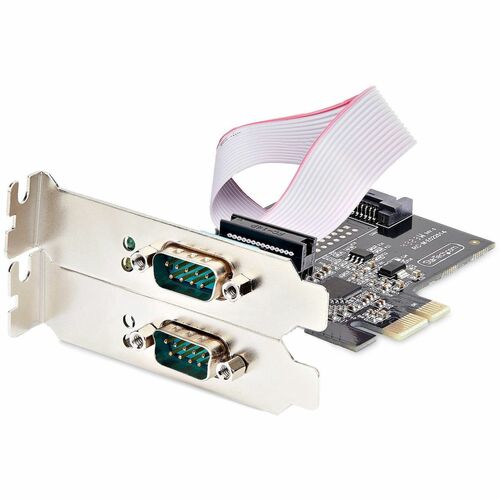

STANDARD & LOW PROFILE BRACKETS: TAA-Compliant Serial Card is equipped with a standard profile bracket (pre-installed), and includes two low-profile brackets for compatibility with small form factor desktops/servers
TECH SPECS: Asix AX99100 Chipset; 16C450 and 16C550 UART compatible; 2x 9-Pin D-Sub Ports; Max Baud 921.6Kbps per port; 256 Byte FIFO; COM Retention; Supports Windows and Linux; Odd/Even/Mark/Space/None Parity Modes; 5/6/7/8/9 Data Bits; PCIe 2.0 x1

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

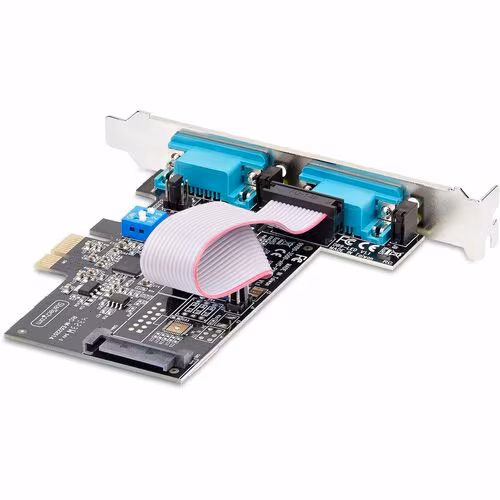

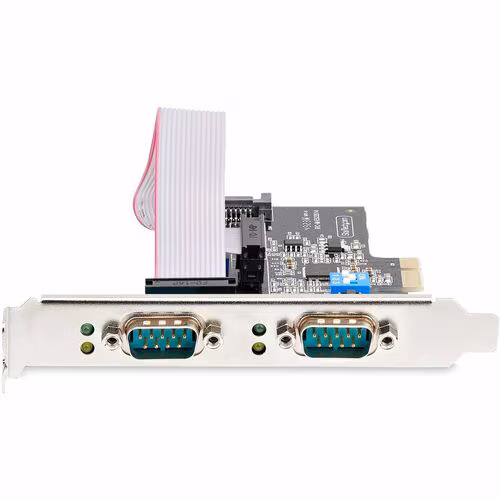

Add serial communication support to a desktop computer or Small Form Factor (SFF) system, using this 2-Port Serial PCI Express Card. The two DB9 ports can be independently configured to support RS-232, RS-422, and 2/4-wire RS-485 standards, for communication with compliant serial peripheral devices.

Per-Port Serial Configuration

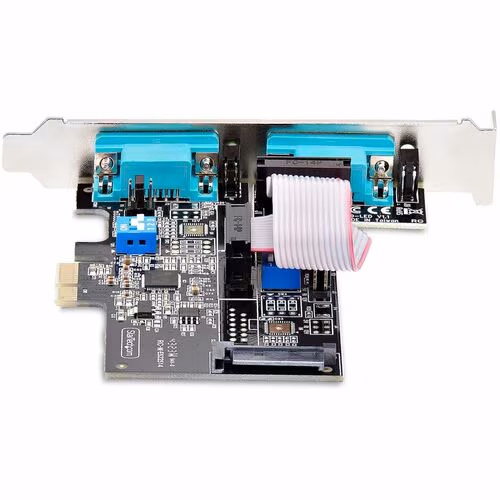

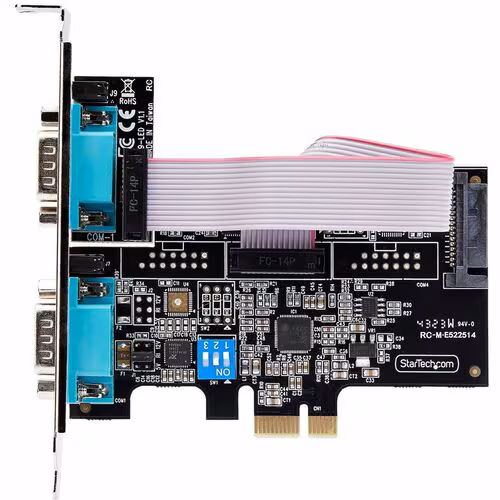

This PCIe Serial Card is equipped with on-board DIP switches, enabling each DB9 serial port to operate in RS-232, RS-422, and/or RS-485 mode(s). The card features LED indicators per port, providing real-time monitoring of port activity.

Configurable External SATA Power

The PCI Express Serial Adapter Card features three power modes that are configurable via on-board jumpers, including 12V (1.5A per port), 5V (1.5A per port), or no power (RI), over pin 9.

Legacy Connectivity

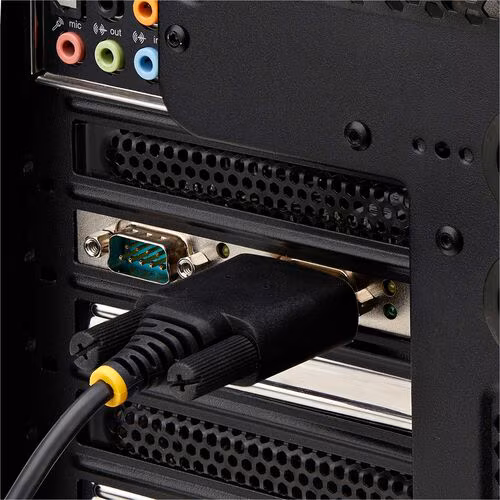

This serial card enables the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-Port PCIe Serial Card is an ideal system upgrade for a wide range of applications (e.g., point-of-sale terminals, PLCs, factory control and automation, scientific sensors, medical equipment, scanners, and oscilloscopes).

Tech Specs

2-PORT SERIAL PCIE CARD - PCI EXPRESS RS232/RS422/RS485 CARD specifications
Depth	4.1"
Width	4"
Height	0.6"
UART Type	16C550
Brand Name	StarTech.com
Form Factor	Plug-in Card
Manufacturer	StarTech.com
Product Name	2-Port Serial Card
Product Type	Serial Adapter
Product Color	Black
TAA Compliant	Yes
Host Interface	PCI Express 2.0 x1

Show all 21 specs

Package Contents	<ul> <li>2-Port Serial Card</li> <li>2 x Low-Profile Bracket</li> <li>1 x Ribbon Cable</li> <li>1 x Quick-Start Guide</li> </ul>
Packaged Quantity	1
Platform Supported	PC
Weight (Approximate)	2.01 oz
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	2S232422485-PC-CARD
Manufacturer Website Address	http://www.startech.com
Number of Serial Ports (External)	2
