2-PORT POE++ INJECTOR 30W - 802.3AF/AT 10M/100M/1000M

SKU: NS5159VPN: AF221C-POE-INJECTOR

In Stock

$65.85

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

TWO-PORT POE+ INJECTOR: Power Sourcing Equipment provides up to 30W PoE/PoE+ and 1Gbps to two Powered devices; Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI
NETWORK COMPATIBILITY: Auto-negotiation between 10/100/1000Mbps; Deliver data and power to up to two Powered Devices (PDs) up to 328ft (100m) with Cat5/5e/6/6a cabling; Surge protection up to 2kV
HASSLE-FREE INSTALLATION: Wall-mountable w/front facing mounting ears and screw holes molded into the housing; Streamline deployment without additional software; Connect the PoE injector to the network (switch/router)/remote PD via standard cabling
APPLICATIONS: Provides more power and bandwidth over 2x RJ45 interfaces to demanding PoE devices such as IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points; Compatible w/1000Base-T/100Base-TX/10Base-T Ethernet
TECH SPECS: 4x RJ45 ports (2x data input, 2x data output + power); 30W max output, 52V 0.580A output per port; Compliant with IEEE 802.3af and IEEE 802.3at; 10/100/1000Mbps & 1Gbps; 9K jumbo frames; Dimensions 3.2x1x1.8-inch(82x25x46mm)

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This 2-port multi-speed PoE+ injector serves as Power Sourcing Equipment (PSE) and enables Ethernet speeds of 10/100/1000Mbps. This mid-span inline injector can transmit network data and power up to 328ft (100m) for two Powered Devices (PD).

Versatile PoE Injector

Dual-port PoE injector supports the IEEE 802.3af and IEEE 802.3at PSE standards and delivers up to 30W output (52V/0.580A). Connect a remote PoE device to a network at a location where there is no power source, but an Ethernet cable already exists. This includes access points, IP cameras, VoIP phone systems, IPTV and access controls. The flexible design allows for either desktop or surface-mount use.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (3.2x1x1.8in(82x25x46mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation.

Tech Specs

2-PORT POE++ INJECTOR 30W - 802.3AF/AT 10M/100M/1000M specifications
Brand Name	StarTech.com
Form Factor	Desktop/Surface/Wall Mountable
Input Ports	RJ-45
Color Family	Black
Manufacturer	StarTech.com
Output Ports	PoE+
Product Name	30W PoE+ Injector
Product Type	PoE+ Injector
Compatibility	<p><b>Compatible Products:</b></p><ul><li> Access Points</li><li> IP Cameras</li><li> VoIP Phone Systems</li><li> IPTV</li><li> Access Controls</li></ul>
Input Voltage	120 V AC
Product Color	Black
Protection Type	Surge Protection

Show all 21 specs

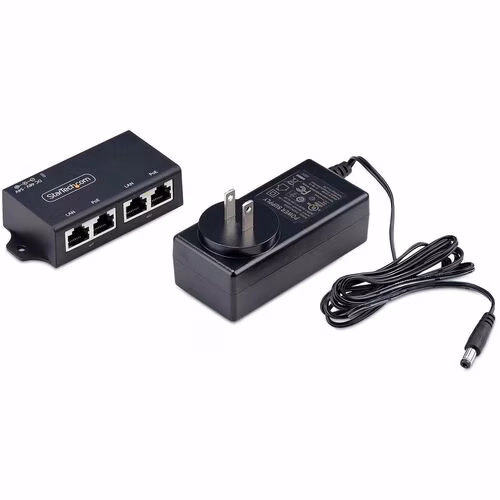

Package Contents	<ul><li> 30W PoE+ Injector</li><li> 1 x Power Adapter</li><li> 1 x Quick-Start Guide</li></ul>
Packaged Quantity	1
Maximum Output Power	30 W
Weight (Approximate)	2.10 oz
Maximum Output Current	580 mA
Maximum Output Voltage	52 V DC
Manufacturer Part Number	AF221C-POE-INJECTOR
Certifications & Standards	<ul><li> IEEE 802.3at</li><li> IEEE 802.3af</li><li> IEEE 802.3ab</li><li> IEEE 802.3u</li><li> IEEE 802.3i</li><li> IEC 61000-4-2 Level-4 ESD protection</li><li> Chipset ID IC Plus - IP802AR</li></ul>
Manufacturer Website Address	http://www.startech.com
