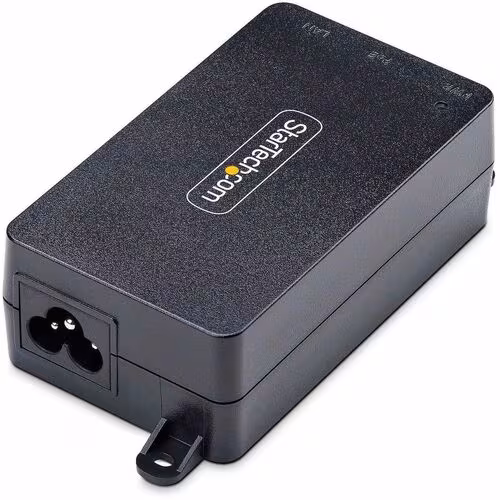

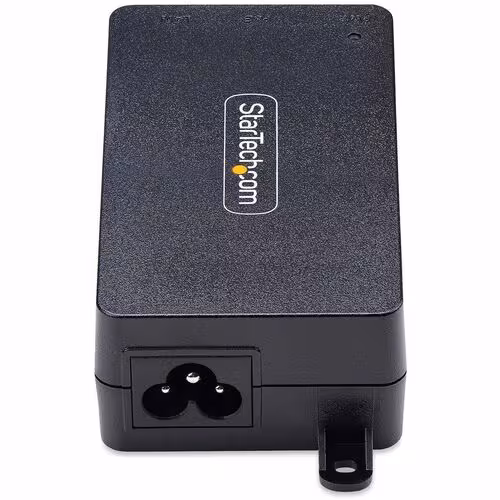

STARTECH.COM

1-PORT POE/POE+ INJECTOR 30W - 10M/100M/1G/2.5G ETHERNET

SKU: KY5960VPN: AF212C-POE-INJECTOR

1-PORT POE/POE+ INJECTOR 30W - 10M/100M/1G/2.5G ETHERNET

1-PORT POE/POE+ INJECTOR 30W - 10M/100M/1G/2.5G ETHERNET Key Features

  • 2.5GbE POE INJECTOR: Multi-gigabit single port midspan PoE+ injector supports up to 2.5Gbps with auto-negotiation; TAA-compliant Power Sourcing Equipment supports up to 30W PoE/PoE+; Features level-4 ESD protection for reliable performance and durability.
  • NETWORK FLEXABILITY: Auto-negotiation between 2.5Gbps & 10/100/1000Mbps Ethernet; Deliver data/power to PoE devices up to 328ft/100m w/Cat5/5e/6/6a cabling; Unmanaged inline injector w/built-in LAN transformer for electrical isolation; 2K surge protection
  • HASSLE-FREE INSTALLATION: Integrated anchor points for surface mounting; Streamline deployment without additional software/settings; Connect the PoE injector to the network (e.g., switch or router) & the remote PD via standard Cat5/e or Cat6/6a cabling
  • APPLICATIONS: Enable data & power over a single RJ45 connection in high end enterprise access points such as high resolution IP cameras; Maintain existing network infrastructure while adding PoE functionality to support remote devices

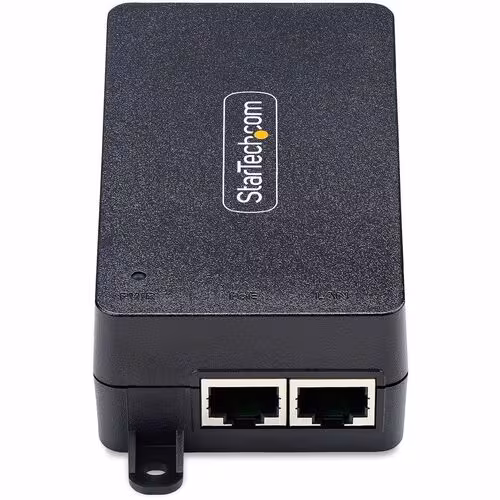

  • TECH SPECS: x2 RJ45 ports (data/data+power); 54VDC 0.6A output; 30W max output; Compliant with IEEE 802.3af and 802.3at; 10M/100M/1G/2.5G with auto negotiation; WoL/PXE/9K jumbo frames; Wall mountable; Dimensions 4x2.3x1.3-inch (100x58.4x33.4mm)
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

1-PORT POE/POE+ INJECTOR 30W - 10M/100M/1G/2.5G ETHERNET Overview

This 1-port 2.5GbE PoE+ Injector serves as a Power Sourcing Equipment (PSE) device and enables Ethernet speeds of 10Mbps, 100Mbps, 1Gbps, and 2.5Gbps. This TAA-compliant midspan inline injector can transmit network data and power up to 328ft (100m) for remote Powered Devices (PD).

Versatile PoE Injector

Multi-Gigabit single port PoE injector supports the IEEE 802.3af and 802.3at PSE standards, and delivers up to 30W output (54V DC, 0.6A). This enables seamless data and power transmission over Cat5/5e/6/6a to remote Powered Devices (PD) such as IP cameras, access control devices, remote kiosks (POSs), wireless access points (APs), PoE lighting, and digital signage. A built-in LAN Transformer reduces EMI to maintain strong, reliable signal strength across different environments.

Streamlined Cable Management

All Ethernet cables can be routed from one side of the unit for efficient and organized cable management. The compact design (4x2.3x1.3-inch-100x58.4x33.4 mm) ensures straightforward integration into existing network infrastructure, saving space and time during installation. Integrated anchor points allow for surface and wall mounting.

1-PORT POE/POE+ INJECTOR 30W - 10M/100M/1G/2.5G ETHERNET Tech Specs

1-PORT POE/POE+ INJECTOR 30W - 10M/100M/1G/2.5G ETHERNET specifications
Width2.3"
Height1.3"
Length3.9"
Brand NameStarTech.com
Mount TypeWall/Surface Mountable
Form FactorWall/Surface Mountable
Input Ports1 x PoE+
Color FamilyBlack
ManufacturerStarTech.com
Output Ports1 x RJ-45
Product NameAF212C-POE-INJECTOR
Product TypePoE+ Injector
Show all 27 specs
Input Voltage120 V AC
Product ColorBlack
TAA CompliantYes
Protection TypeSurge Protection

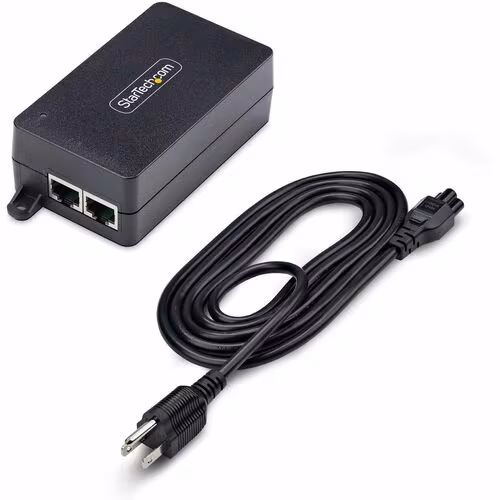

Package Contents<ul><li> AF212C-POE-INJECTOR</li><li> 1 x 6ft (1.8m) NA Power Cord</li><li> 1 x Quick-Start Guide</li></ul>
Packaged Quantity1
Maximum Output Power30 W
Weight (Approximate)3.50 oz
Maximum Input Current800 mA
Maximum Output Current600 mA
Maximum Output Voltage54 V DC
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Manufacturer Part NumberAF212C-POE-INJECTOR
Certifications & Standards<ul><li> IEEE 802.3af</li><li> IEEE 802.3at</li><li> IEEE 802.3ab</li><li> IEEE 802.3u</li><li> IEEE 802.3i</li><li> IEEE 802.3bz</li><li> IEC 61000-4-2</li></ul>
Manufacturer Website Addresshttp://www.startech.com
