2-PORT HDMI SPLITTER 1 IN 2 OUT 4K HDMI 2.0 DISPLAY/OUTPUT SPLITTER

SKU: 09WV94VPN: HDMI-SPLITTER-4K60UP

In Stock

$72.89

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

DUPLICATED HDMI DISPLAYS: 2-Port 4K 60Hz HDMI Splitter displays the same image from a single HDMI source on dual-HDMI displays; HDR; UHD; 4:4:4 chroma subsampling support; HDMI 2.0; 18Gbps (total) Bandwidth; 7.1ch Audio; HDCP 2.2/1.4
AUTOMATIC DOWNSCALING: HDMI splitter clones EDID settings from output port 1 to port 2, providing the same resolution on both displays; Built-in downscaler auto-detects the resolutions of the connected displays, enabling 1080p and 4K output simultaneously
POWER OPTIONS: 4K HDMI Splitter includes a 31inch (78cm) USB power cable to connect to the included USB wall charger; USB-A power cable can be connected to any available 5V 1A USB port; Max 5W power consumption
EXTRA-LONG CABLE: 1x2 splitter features a 20in built-in HDMI cable to connect to the source device, reducing strain on ports/connectors; Supports passive HDMI cables up to 16ft (5m) or active cables/extenders (sold separately) to reach further distances
USER-FRIENDLY DESIGN: 1 in 2 out HDMI splitter features a reset button for easy troubleshooting and EDID redetection, without the need of unplugging cables; 8kV air and 6kV contact ESD protection; Driverless and OS independent

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

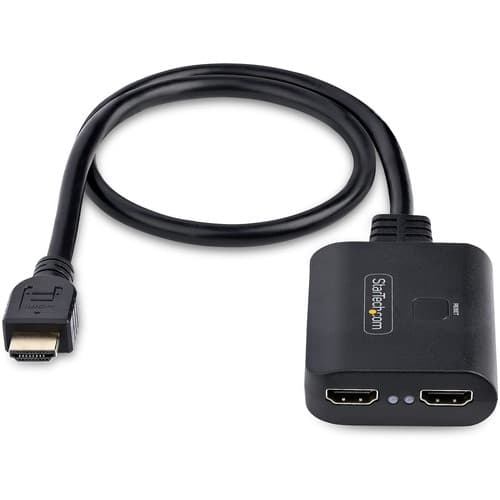

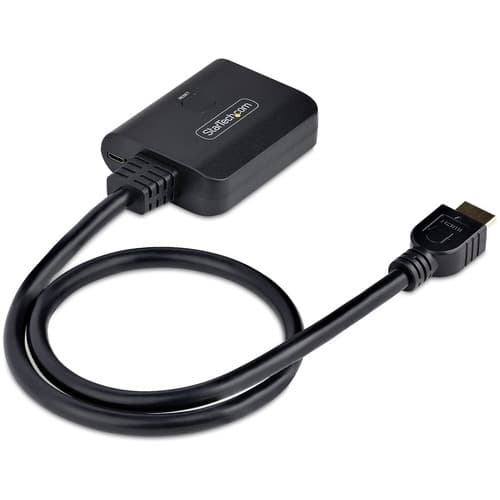

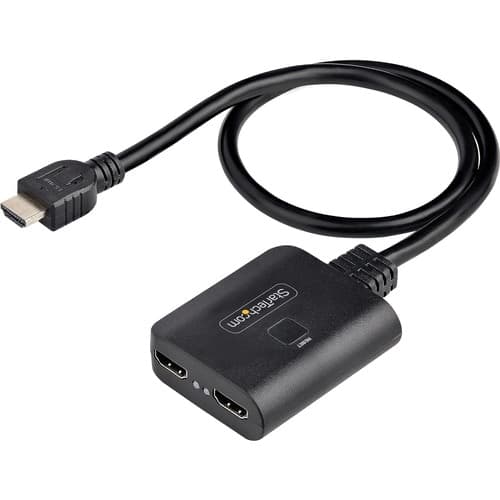

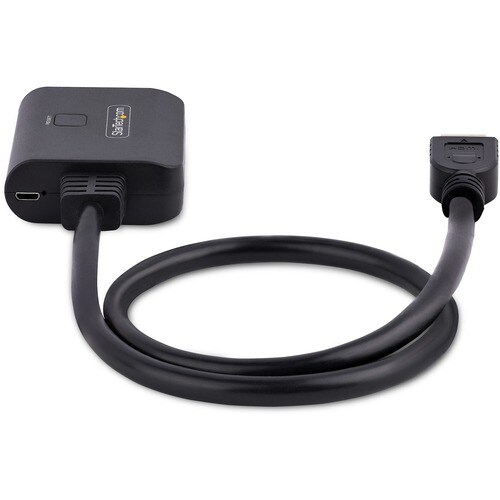

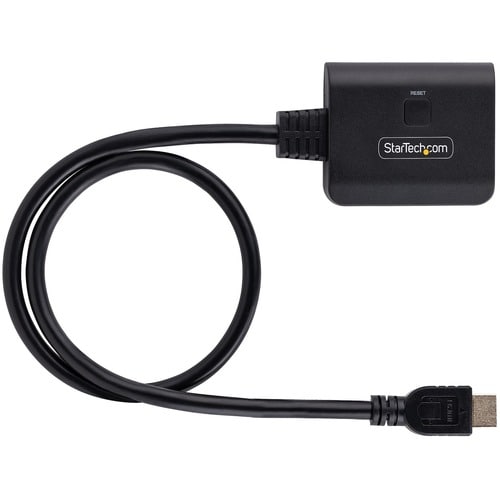

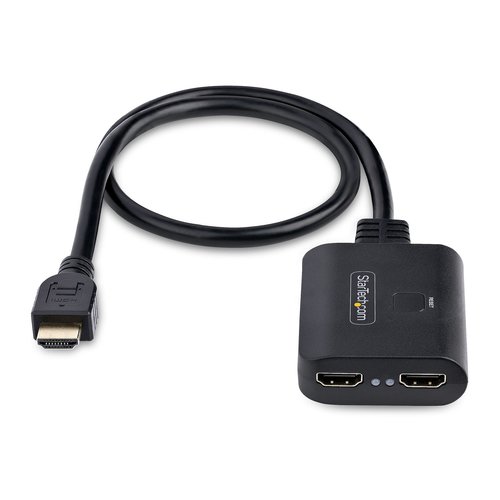

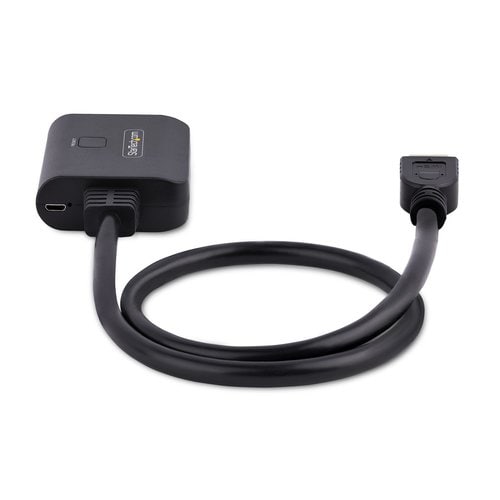

This 2-port HDMI splitter displays the same image from an HDMI video source onto two HDMI displays, with support for UHD 4K resolutions, HDR (High Dynamic Range), HDCP content, and 7.1 channel audio.

4K 60Hz Resolution

This 2-way HDMI splitter supports up to 4K 60Hz resolution and 4:4:4 chroma subsampling. Display 4K content on both your 4K displays or downscale the resolution to 1080p to support monitors with different resolutions, thanks to the built-in scaler. Ideal for environments containing displays of mixed resolutions.

USB Powered

The splitter includes a 31inch (78cm) USB Micro-B to Type-A power cable and USB wall charger. If an outlet is not available or within reach, the USB power cable can be connected to a 5V 1A USB Type-A port.

Robust Installation Options

This HDMI splitter supports active HDMI cables and HDMI extenders (sold separately), facilitating installations at a distance from the displays (e.g., within a remote AV component cabinet). The reset button enables hassle-free hot plug EDID detection, without the need of unplugging cables. The splitter features 8kV air and 6kV contact Electrostatic Discharge (ESD) protection, suitable for installation in a variety of environments.

This product is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance.

Tech Specs

2-PORT HDMI SPLITTER 1 IN 2 OUT 4K HDMI 2.0 DISPLAY/OUTPUT SPLITTER specifications
Width	2.2"
Height	0.7"
Length	2.6"
HDMI In	Yes
HDMI Out	Yes
Brand Name	StarTech.com
Manufacturer	StarTech.com
Product Name	2-Port HDMI Splitter
Product Type	Signal Splitter
Input Voltage	230 V AC
Splitter Type	2-way
Indicator Light	Yes

Show all 25 specs

Package Contents	<ul> <li>2-Port HDMI Splitter</li> <li>1 x USB Micro-B Cable</li> <li>1 x USB Wall Charger</li> <li>1 x Quick-Start Guide</li> </ul>
Product Material	Acrylonitrile Butadiene Styrene (ABS)
Country of Origin	China
Packaged Quantity	1
Weight (Approximate)	3.25 oz
Number of HDMI Inputs	1
Number of HDMI Outputs	2
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	HDMI-SPLITTER-4K60UP
Maximum Video Resolution	3480 x 2160
Maximum Operating Distance	16.40 ft
Manufacturer Website Address	http://www.startech.com
