1X4 HDMI 2.0 SPLITTER/DIST AMP W/ AUTO VIDEO SCALING 4K 60HZ HDR
SKU: 8JX677VPN: CE-H22Y11-S1
1X4 HDMI 2.0 SPLITTER/DIST AMP W/ AUTO VIDEO SCALING 4K 60HZ HDR
Key Features
- Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
- Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

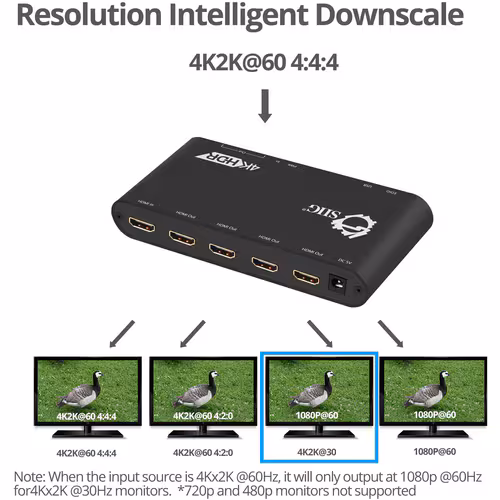

- Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.
- EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
- Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
- Easy to cascade multiple splitters for more displays. Supports up to 10 layers
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Distributes HDMI video/audio signals from one HDMI source to four HDMI displays while maintaining signal quality
- Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality
- Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
- Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
- Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
- Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs.
- EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
- Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
- Easy to cascade multiple splitters for more displays. Supports up to 10 layers
Tech Specs
| Width | 2.4" |
|---|---|
| Height | 0.9" |
| Length | 4.7" |
| HDMI In | Yes |
| HDMI Out | Yes |
| Brand Name | SIIG |
| Manufacturer | SIIG, Inc |
| Product Name | 1x4 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz |
| Product Type | Audio/Video Distribution Amplifier |
| Input Voltage | 5 V DC |
| TAA Compliant | Yes |
| Product Material | Aluminum |
Show all 23 specsShow fewer
| Country of Origin | Taiwan |
|---|---|
| Maximum Frequency | 600 MHz |
| Minimum Frequency | 25 MHz |
| Weight (Approximate) | 13.44 oz |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 4 |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE-H22Y11-S1 |
| Maximum Video Resolution | 3840 × 2160 |
| Maximum Operating Distance | 49.21 ft |
| Manufacturer Website Address | http://www.siig.com |
