EATON TRIPP LITE SERIES CONNECTIVIT

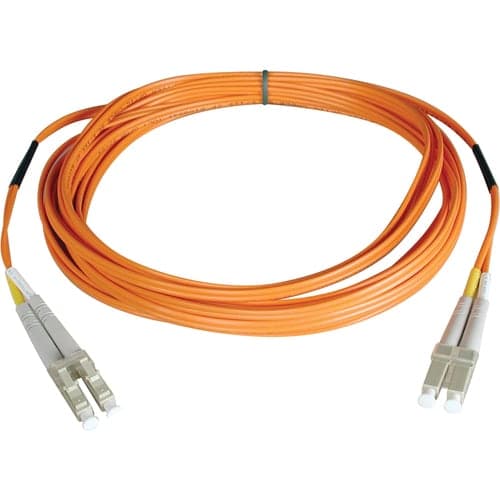

1M DUPLEX MMF CABLE LC/LC 50/125 FIBER OPTIC/ FIBRE CHANNEL

SKU: C18298VPN: N520-01M

1M DUPLEX MMF CABLE LC/LC 50/125 FIBER OPTIC/ FIBRE CHANNEL

Key Features

  • Premium PVC multimode patch cables
  • Attenuation loss meets or exceeds the latest industry standards
  • Higher bandwidth optimized for gigabit and 10Gbps networks
  • Backward compatible with 62.5 micron fiber
  • Built-in headroom for future applications
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Tripp Lite's 1-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in lengths up to 152 meters. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-" , and for SC-SC, search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Tech Specs

1M DUPLEX MMF CABLE LC/LC 50/125 FIBER OPTIC/ FIBRE CHANNEL specifications
Brand NameTripp Lite series
Cable TypeFiber Optic
Jacket TypePlenum
Cable Length3.30 ft
ManufacturerEaton Corporation
Product NameDuplex Fiber Optic Patch Cable
Product TypeNetwork Cable
Product ModelN520-01M
Shipping Width7"
Shipping Height9"
Package Contents<ul><li>Duplex Fiber Optic Patch Cable</li><li>1M duplex MMF cable LC/LC 50/125 fiber</li></ul>
Country of OriginChina
Show all 22 specs
Cable CharacteristicPatch Cable
Additional Information<ul><li>Fiber type: all glass graded index</li><li>Core diameter: two 50+/-3 microns</li><li>CLAD diameter: 125+/-2 microns</li><li>Primary coating diameter: 245+/-15 microns</li><li>Primary coating material: acrylate</li><li>Secondary coating diameter: 900+/-50 microns</li><li>Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum</li><li>Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum</li><li>Numeric apeture: .275 nominal</li><li>Proof test level: 100,000 PSI</li><li>Insertion loss testing performed on every connector (0.2db typical) and provided with cable</li></ul>
Manufacturer Part NumberN520-01M
Certifications & Standards<ul><li>FDDI</li></ul>
Connector Type on First EndLC - Male
Connector Type on Second EndLC - Male
Manufacturer Website Addresshttp://www.eaton.com
Shipping Weight (Approximate)0.37 oz
Connector on First End Details2 x LC - Male
Connector on Second End Details2 x LC - Male
