EATON

180V EXTENDED BATTERY MODULE SELECT 9PX G2 UPS SYSTEMS 3URM

SKU: SN0120VPN: 9PXEBM180RTG2

180V EXTENDED BATTERY MODULE SELECT 9PX G2 UPS SYSTEMS 3URM

Key Features

  • Keeps your UPS up and ready for use at all times
  • Valve-regulated/User Replaceable battery characteristics for reliable charging performance with maximum productivity
  • Once installed, it requires low maintenance
  • With 180 V DC battery, never run out of power and keep your UPS operational at all times
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

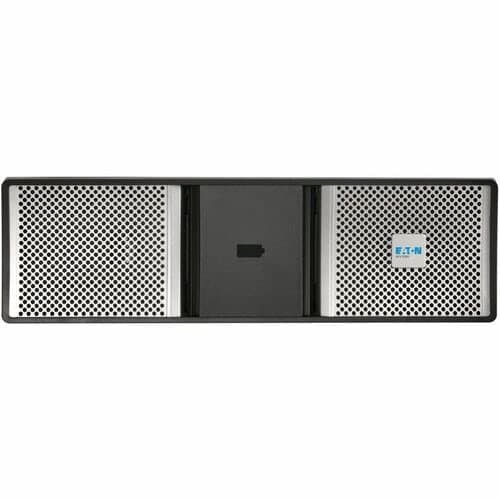

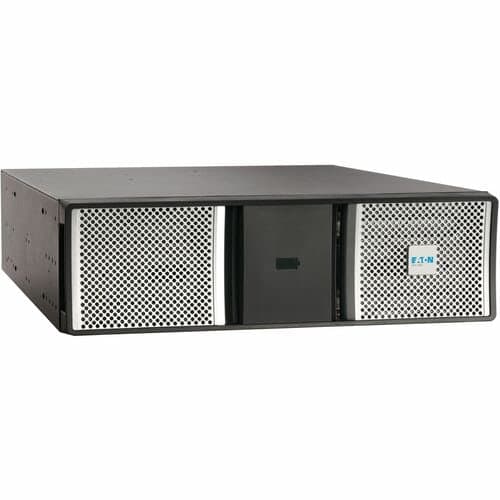

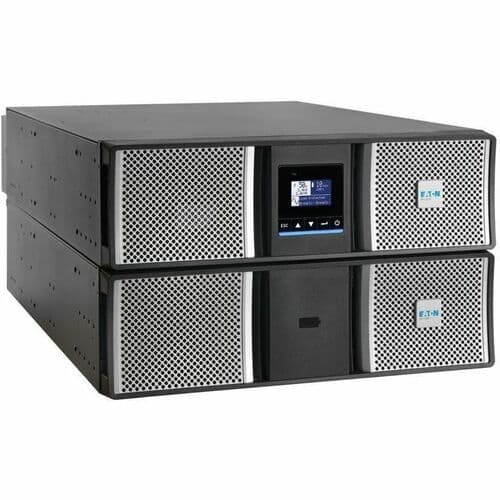

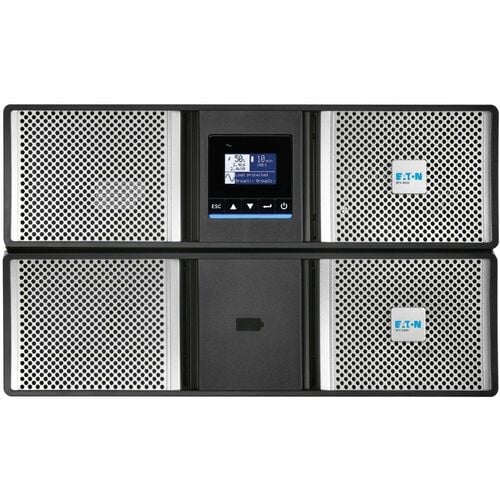

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

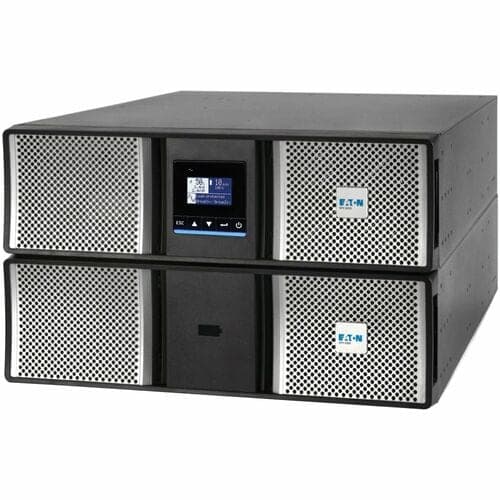

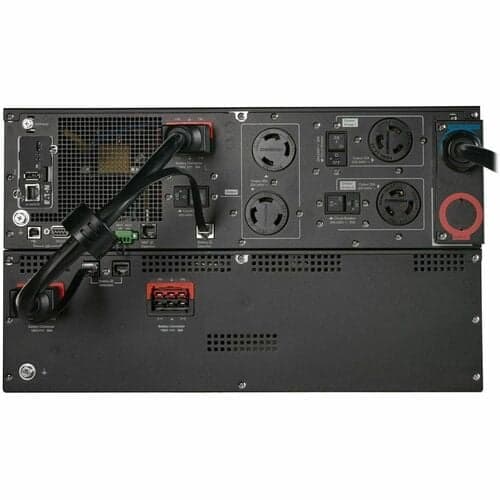

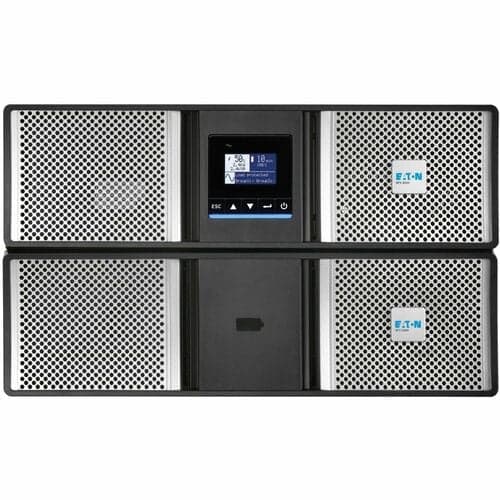

The 9PXEBM180RTG2 offers extended battery runtime when used in conjunction with Eaton's 9PX3K3UG2, 9PX3K3UNP1G2, 9PX3K3UNP2G2, 9PX3K3UNTF5G2, 9PX5KG2, 9PX5KP1G2, 9PX5KP2G2, 9PX5KTF5G2, 9PX6KG2, 9PX6KIECG2, 9PX6KP1G2, 9PX6KP2G2 and 9PX6KTF5G2 UPS systems. It can also be daisy-chained for a maximum of 12 auto-detected battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

Supports 3U Rack or Tower Installation

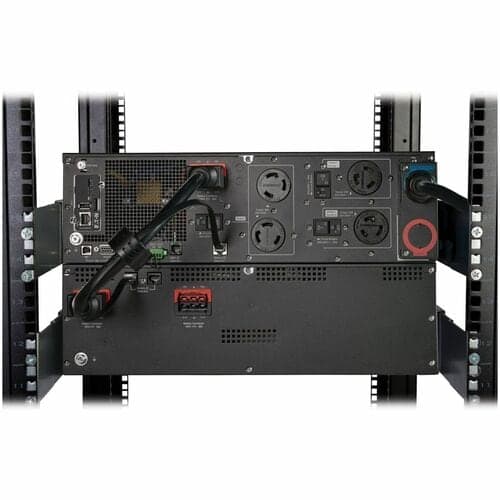

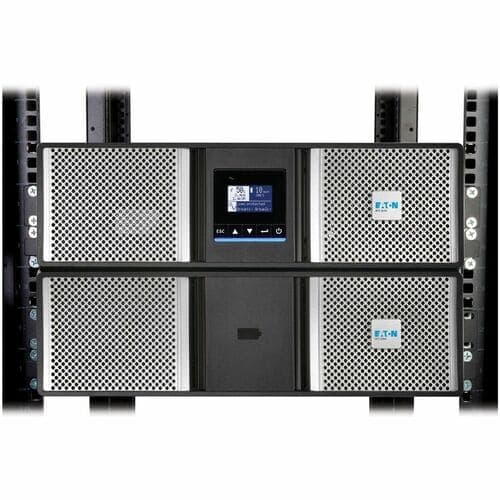

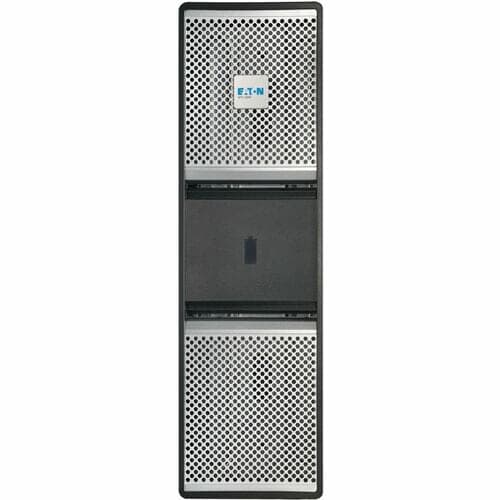

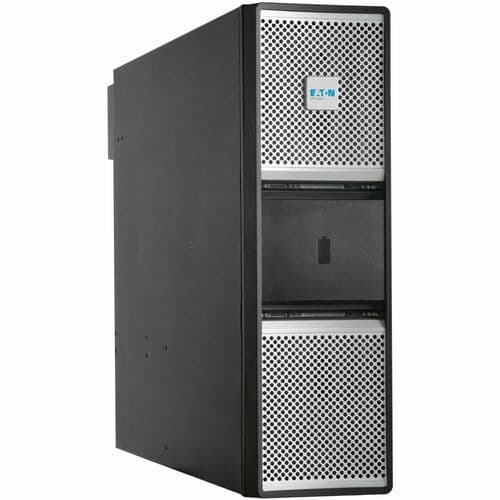

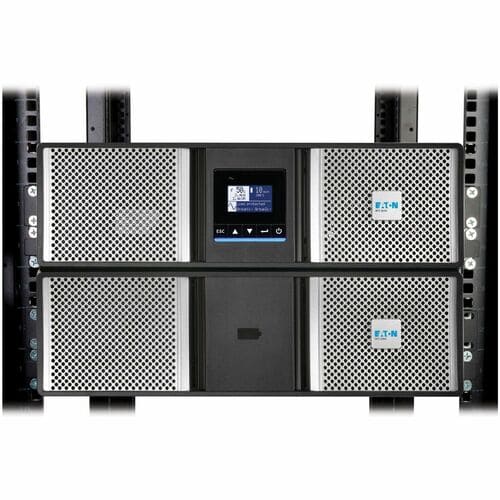

This backup battery pack's multi-use form factor supports mounting in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands. For installation in 2-post racks, one RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.

Tech Specs

180V EXTENDED BATTERY MODULE SELECT 9PX G2 UPS SYSTEMS 3URM specifications
Depth25"
Width17.3"
Height5.1"
Brand NameEaton
Energy StarYes
Battery SizeProprietary Battery Size
ManufacturerEaton Corporation
Product Name9PXEBM180RTG2 Battery Unit
Product TypeBattery Unit
Compatibility<p><strong>Eaton's 9PX G2 UPS Systems:</strong></p><ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX3K3UG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX3K3UNP1G2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX3K3UNP2G2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX3K3UNTF5G2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX5KG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX5KP1G2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX5KP2G2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX5KTF5G2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX6KG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX6KIECG2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX6KP1G2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX6KP2G2 </li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PX6KTF5G2 </li></ul>
Hot SwappableYes
Output Voltage180 V DC
Show all 23 specs
Package Contents<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>9PXEBM180RTG2 Battery Unit</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>External Battery Cable, 1 ft. (0.3 m)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Tower Support Stands</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Rack-mounting Hardware</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Quick Start Guide</li></ul>
Battery ChemistryLead Acid
Country of OriginPhilippines
Weight (Approximate)150 lb
Battery CharacteristicsValve-regulated/User Replaceable
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Manufacturer Part Number9PXEBM180RTG2
Certifications & Standards<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>cUL Listed</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>EN 62040-2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>NOM (Mexico)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>FCC Part 15 Class A (USA)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>FCC (USA)</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>CE (Europe)</li></ul>
Manufacturer Website Addresshttp://www.eaton.com
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
