1800W HG ISOLATION TRANSFORMER 120V MEDICAL GRADE 6 OUT UL60601-1

SKU: N16757VPN: IS1800HG

In Stock

$1,438.32$827.20

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

1800W HG ISOLATION TRANSFORMER 120V MEDICAL GRADE 6 OUT... Key Features

Complete line isolation, noise filtering and surge suppression; ideal for sensitive equipment
1800 watts, 6 outlets, 10-ft. power cord

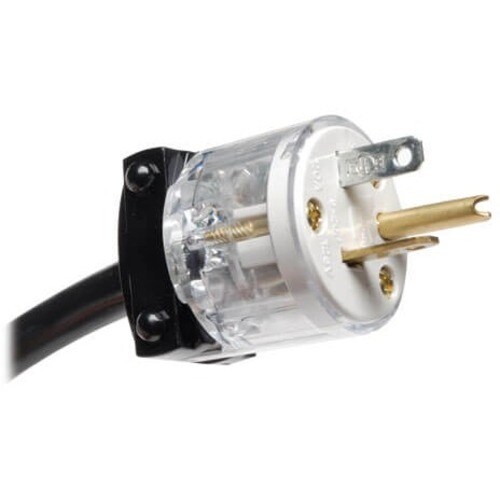

Hospital-grade plug and receptacles
Leakage current less than 100 microamps
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

1800W HG ISOLATION TRANSFORMER 120V MEDICAL GRADE 6 OUT... Overview

Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of sensitive electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at the line input and output combined with full line isolation offer continuous filtering of a full range of power line noise in all modes. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEE

1800W HG ISOLATION TRANSFORMER 120V MEDICAL GRADE 6 OUT... Tech Specs

1800W HG ISOLATION TRANSFORMER 120V MEDICAL GRADE 6 OUT UL60601-1 specifications
Depth	12.3"
Width	8.3"
Height	7.8"
Brand Name	Tripp Lite series
Form Factor	Small Tower Format
Manufacturer	Eaton Corporation
Power Rating	1800 VA
Product Name	Isolator IS1800HG 6 outlets Transformer
Product Type	Isolation Transformer
Input Voltage	120 V AC
Product Model	IS1800HG
TAA Compliant	Yes

Show all 22 specs

Package Contents	<ul><li>Isolator IS1800HG 6 outlets Transformer</li><li>IS1800HG Isolation Transformer</li><li>NEMA5-15P replacement plug</li><li>User manual with warranty information</li></ul>
Country of Origin	Taiwan
Output Receptacles	NEMA 5-20R
Maximum Line Current	15 A
Additional Information	<ul><li>Hospital Grade Outlets and Plug</li><li>20A circuit breaker</li><li>Total Harmonic Distortion: Less than 1%</li><li>Rugged all-metal unit housing</li><li>Cooling Method: Convection</li><li>Noise Suppression Rating: 35-65 DB</li><li>Suppression Joule Rating: 1190 (1020 input / 170 output)</li><li>Efficiency: 96%</li></ul>
Output Receptacle Type	NEMA 5-20R
Manufacturer Part Number	IS1800HG
Output Receptacle Detail	6 x NEMA 5-20R
Certifications & Standards	<ul><li>UL</li><li>cUL</li></ul>
Manufacturer Website Address	http://www.eaton.com
