EATON TRIPP LITE SERIES CONNECTIVIT

15M FIBER OPTIC CBL 40/100/400G MMF 50 OM4 3X8F MTP/MPO-PC F/F

SKU: 01FX51VPN: N858B-15M-3X8MG

15M FIBER OPTIC CBL 40/100/400G MMF 50 OM4 3X8F MTP/MPO-PC F/F

Key Features

  • OM4-rated cable recommended for 400 Gb speeds up to 100 meters (@ 850 nm)
  • Backward compatible with 10/25/40/100 Gb networks to facilitate future-proofing
  • Magenta LSZH jacket allows fast, easy identification in a crowded switch or patch panel
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

40/100/400 GbE Cable Supports Higher Bandwidths Needed for High-Density Data
Networking

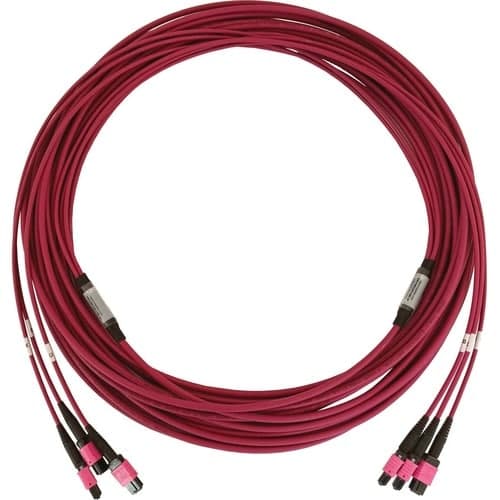

The N858B-15M-3X8MG is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb or 400 Gb.

Magenta-Colored Jacket Helps Avoid Misidentification That Can Cause Costly Downtime

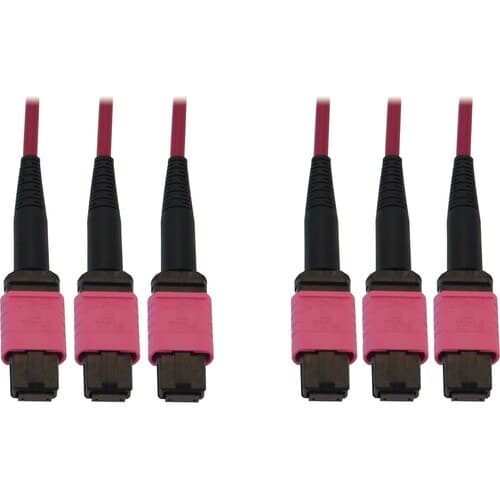

The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors' slim boots and magenta housings allow easy one-handed installation and removal of the cable.

Tech Specs

15M FIBER OPTIC CBL 40/100/400G MMF 50 OM4 3X8F MTP/MPO-PC F/F specifications
FeaturesBendable
Boot TypeSlim
Brand NameTripp Lite series
Cable TypeFiber Optic
Jacket TypeLSZH
Cable Length49.21 ft
Jacket ColorMagenta
ManufacturerEaton Corporation
Product NameN858B-15M-3X8MG Fiber Optic Trunk Network Cable
Product TypeNetwork Cable
Product ModelN858B-15M-3X8MG
Shipping Width10.50"
Show all 29 specs
Connector ColorMagenta
Shipping Height0.50"
Device SupportedSwitch
Fiber Optic ModeMulti-mode
Country of OriginChina
Data Transfer Rate400 Gbit/s
Cable CharacteristicTrunk Cable
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberN858B-15M-3X8MG
Connector Type on First EndMTP/MPO Network - Female
Connector Type on Second EndMTP/MPO Network - Female
Manufacturer Website Addresshttp://www.eaton.com
Shipping Weight (Approximate)1.17 lb
Connector on First End Details3 x MTP/MPO Network - Female
Connector on Second End Details3 x MTP/MPO Network - Female
Fiber Optic Cable Core/Cladding Specification50/125 µm
