EATON TRIPP LITE SERIES CONNECTIVIT

152M DUPLEX FIBER LC/LC MMF 50.125 PATCH CABLE

SKU: L50007VPN: N520-152M

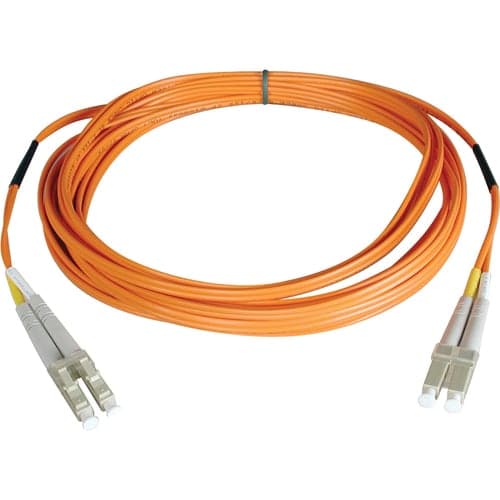

152M DUPLEX FIBER LC/LC MMF 50.125 PATCH CABLE

Key Features

  • Premium PVC multimode patch cables
  • Attenuation loss meets or exceeds the latest industry standards
  • Higher bandwidth optimized for gigabit and 10Gbps networks
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Tripp Lite's 152-meter ( 500ft ) multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 15, 20, 25, 30, 50, and 100 meter lengths. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-" , and for SC-SC, search "N506-". Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

Tech Specs

152M DUPLEX FIBER LC/LC MMF 50.125 PATCH CABLE specifications
Brand NameTripp Lite series
Cable TypeFiber Optic
Cable Length498 ft
Color FamilyOrange
ManufacturerEaton Corporation
Product NamePremium Fibre Channel Patch Cable
Product TypeNetwork Cable
Product ColorOrange
Product ModelN520-152M
Shipping Width10.20"
Jacket MaterialPolyvinyl Chloride (PVC)
Shipping Height4.60"
Show all 24 specs
Package Contents<ul><li>Premium Fibre Channel Patch Cable</li><li>152M Duplex MMF Cable LC/LC 50/125 Fiber</li></ul>
Country of OriginChina
Cable CharacteristicPatch Cable
Additional Information<ul><li>Color coded / labeled connectors</li><li>Fiber type: all glass graded index</li><li>Core diameter: two 50+/-3 microns</li><li>CLAD diameter: 125+/-2 microns</li><li>Primary coating diameter: 245+/-15 microns</li><li>Primary coating material: acrylate</li><li>Secondary coating diameter: 900+/-50 microns</li><li>Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum</li><li>Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum</li><li>Numeric apeture: .275 nominal</li><li>Proof test level: 100,000 PSI</li><li>Insertion loss testing performed on every connector (0.2db typical) and provided with cable</li><li>Beveled edge on ends of glass makes insertion of plug a breeze</li></ul>
Manufacturer Part NumberN520-152M
Connector Type on First EndLC - Male
Connector Type on Second EndLC - Male
Manufacturer Website Addresshttp://www.eaton.com
Shipping Weight (Approximate)3.30 lb
Connector on First End Details2 x LC - Male
Connector on Second End Details2 x LC - Male
Fiber Optic Cable Core/Cladding Specification50/125 µm
