ADVANTECH (B+B SMARTWORX)

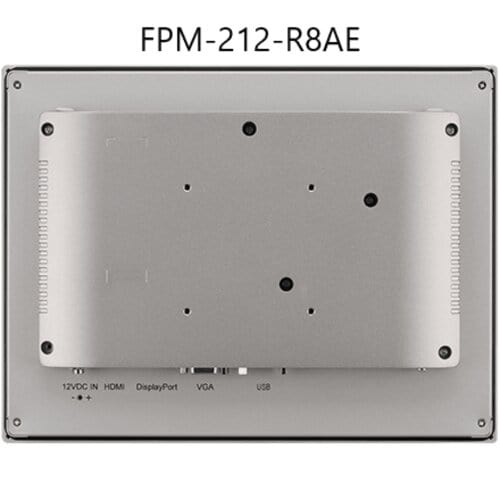

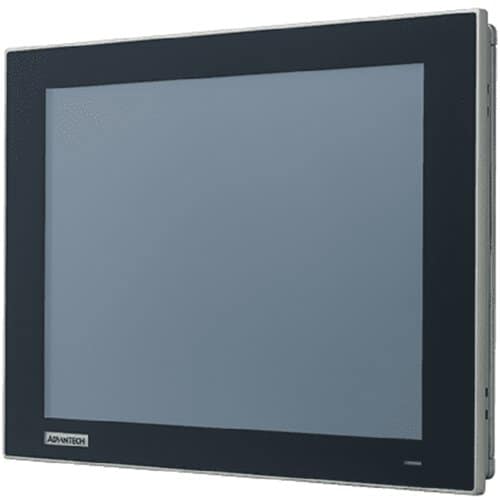

12.1IN XGA IND MONITOR W/RESISTIVE TS

SKU: 8DF977VPN: FPM-212-R8AE

12.1IN XGA IND MONITOR W/RESISTIVE TS

Key Features

  • 12" XGA/17" SXGA TFT LED LCD with 50,000 backlight lifetime15" XGA TFT LED LCD with 70,000 backlight lifetime
  • Direct HDMI, DP and VGA input interfaces
  • Anti-glare screen with tempered glass
  • Robust system with Die-casting aluminum chassis and IP66-rated aluminum
  • alloy front bezel
  • Lockable I/O connectors
  • Slim design enables easy installation
  • Supports various mount options: panel, desktop, and VESA arm
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-200 series is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen.

Tech Specs

12.1IN XGA IND MONITOR W/RESISTIVE TS specifications
USBYes
VGAYes
HDMIYes
Depth2.1"
Width12.3"
Height9.4"
FeaturesAnti-glare
Brand NameAdvantech
Brightness600 Nit
Mount TypeWall Mountable
Screen ModeXGA
ManufacturerAdvantech Co., Ltd
Show all 34 specs
Product Name12" XGA Ind Monitor w/Resistive TS
Product TypeLCD Touchscreen Monitor
Product ModelFPM-212
Product FamilyFPM-200
Product SeriesFPM-200
Color Supported16.2 Million Colors
Limited Warranty2 Year
Touchscreen Type5-wire Resistive
Country of OriginChina
Screen Size Class12"
Maximum Resolution1024 x 768
VESA Mount Standard75 x 75
Backlight TechnologyLED
Viewable Screen Size12"
Weight (Approximate)7.05 lb
Native Contrast Ratio1,000:1
VESA Mount CompatibleYes
Vertical Viewing Angle178°
Horizontal Viewing Angle178°
Manufacturer Part NumberFPM-212-R8AE
Operating Power Consumption36 W
Manufacturer Website Addresshttp://www.advantech.com
