EATON TRIPP LITE SERIES CONNECTIVIT

10M USB C FIBER ACTIVE OPTICS CABLE DATA ONLY USB 3.2 M/M BLACK

SKU: 11ZD50VPN: U420F-10M-D3

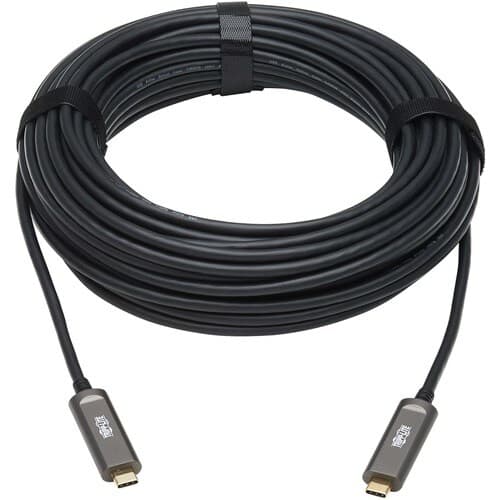

10M USB C FIBER ACTIVE OPTICS CABLE DATA ONLY USB 3.2 M/M BLACK

Key Features

  • 10 m (33 ft.) length allows flexibility in placing USB-C devices where most needed
  • Fiber optic construction ideal for long-distance connections not supported by copper
  • Supports only USB 3.2 Gen 2 speeds up to 10 Gbps to ensure fast data transfers
  • Plenum rated for horizontal premise applications in air ducts and drop ceilings
  • Slim, flexible cable easily installs around corners and through hard-to-reach areas
  • 3-year limited warranty
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Active Optical Cable Connects Servers, Hard Drives and Other USB-C Components
This USB 3.2 Gen 2 fiber optic cable (M/M) securely connects the USB-C port on your desktop, laptop or notebook computer to a USB-C device, such as a server, external hard drive or surveillance camera, located up to 10 meters (33 feet) away. This data-only cable supports USB 3.2 Gen 2 data transfer rates up to 10 Gbps.
Note: This USB-C cable is not backward compatible with USB 3.2 Gen 1, 2.0 or 1.1 devices.

Advanced Fiber Cable Is Easier to Install than Copper
Because the fiber cable is slimmer and more flexible than standard copper USB cables, the U420F-10M-D3 is easier to install around corners and in hard-to-reach spaces behind equipment. It draws power from the connected device, so no external power supply is needed to transmit the USB signal across the longer distances unique to fiber optic cabling.

CMP Jacket Designed for In-Wall Installations
The plenum-rated jacket has low smoke and flame characteristics, making it suitable for premise applications in ceilings, walls and ducts.

10 m Cable Lets You Design an Application to Your Custom Specifications
This long cable allows you greater flexibility in placing your USB components. For instance, your camera or hard drive may be located in a different room away from your office or in a central location where others have access to it. The plug-and-play U420F-10M-D3 supports all major operating systems, including Windows, macOS and Linux.
Note: This cable provides up to 1A of power to the connected USB device. If your device requires more than 1A, an external power supply will be required for the device.

Tech Specs

10M USB C FIBER ACTIVE OPTICS CABLE DATA ONLY USB 3.2 M/M BLACK specifications
FeaturesPlug & Play
Brand NameTripp Lite series
Cable TypeFiber Optic
Jacket TypePlenum
Cable Length32.81 ft
Jacket ColorBlack
ManufacturerEaton Corporation
Product NameUSB 3.2 Gen 2 Fiber Active Optical Cable, M/M, 10 m (33 ft.)
Product TypeData Transfer Cable
Product ModelU420F-10M-D3
Connector ColorLight Gray
Contact PlatingGold
Show all 26 specs
Jacket MaterialPolyvinyl Chloride (PVC)
Device SupportedDesktop Computer
Connector PlatingGold
Country of OriginChina
Connector MaterialZinc Alloy
Data Transfer Rate10 Gbit/s
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberU420F-10M-D3
Connector Type on First EndUSB 3.2 (Gen 2) Type C - Male
Connector Type on Second EndUSB 3.2 (Gen 2) Type C - Male
Manufacturer Website Addresshttp://www.eaton.com
Connector on First End Details1 x USB 3.2 (Gen 2) Type C - Male
Connector on Second End Details1 x USB 3.2 (Gen 2) Type C - Male
