EATON TRIPP LITE SERIES CONNECTIVIT

10M FIBER OPTIC CBL 100G MMF 50 OM4 12F MTP/MPO-PC LSZH F/F

SKU: 01FX34VPN: N845B-10M-12-MG

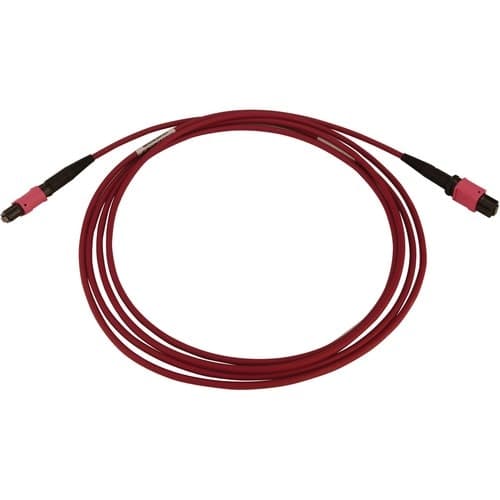

10M FIBER OPTIC CBL 100G MMF 50 OM4 12F MTP/MPO-PC LSZH F/F

Key Features

  • OM4-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1300 nm)
  • Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
  • Magenta LSZH jacket allows easy ID in a crowded switch or patch panel
  • This product is covered by a Lifetime Limited Warranty
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.

Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors' slim boots allow easy one-handed installation and removal of the cable.

Tech Specs

10M FIBER OPTIC CBL 100G MMF 50 OM4 12F MTP/MPO-PC LSZH F/F specifications
FeaturesPush-Pull Tab
Boot TypeSlim
Brand NameTripp Lite series
Cable TypeFiber Optic
Jacket TypeLSZH
Cable Length32.81 ft
Jacket ColorMagenta
ManufacturerEaton Corporation
Product NameN845B-10M-12-MG Fiber Optic Network Cable
Product TypeNetwork Cable
Product ModelN845B-10M-12-MG
Shipping Width7"
Show all 28 specs
Connector ColorMagenta
Shipping Height0.50"
Device SupportedPatch Panel
Fiber Optic ModeMulti-mode
Country of OriginChina
Data Transfer Rate400 Gbit/s
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberN845B-10M-12-MG
Connector Type on First EndMTP/MPO Network - Female
Connector Type on Second EndMTP/MPO Network - Female
Manufacturer Website Addresshttp://www.eaton.com
Shipping Weight (Approximate)3.23 oz
Connector on First End Details1 x MTP/MPO Network - Female
Connector on Second End Details1 x MTP/MPO Network - Female
Fiber Optic Cable Core/Cladding Specification50/125 µm
