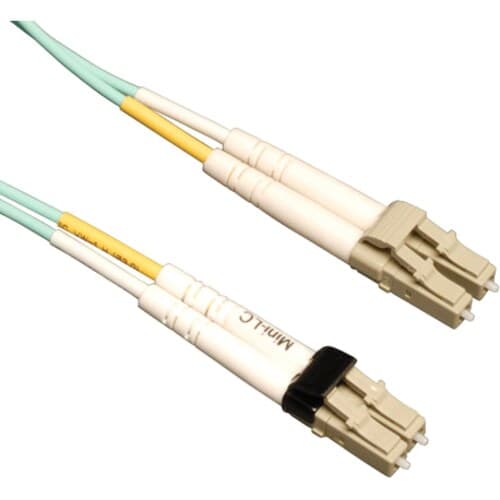

10M DUPLEX FIBER MMF MINI-LC/LC 50/125 10G OM3 CABLE AQUA
10M DUPLEX FIBER MMF MINI-LC/LC 50/125 10G OM3 CABLE AQUA
Key Features
- Mini-LC to LC Fiber Patch Cable, 10 Meter
- Designed for 10-Gig Ethernet applications...OM3 Rated
- For use with networking hardware employing mini-LC SFP transceivers
- Max 10Gb distance of 300 meters @850nm
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Tripp Lite introduces it's new, Mini-LC to LC, OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cables, for use with 10Gb Ethernet applications, utilizing mini SFP transceivers, such as Brocade FC8-64 High Density 64-port Fibre Channel Blade. These new technology, 50/125um, mini-LC/LC Fiber Optic cables, provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Singlemode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers. Tripp Lite warrants this product to be free from defects in material and workmanship for Life.
Tech Specs
| Brand Name | Tripp Lite series |
|---|---|
| Cable Type | Fiber Optic |
| Jacket Type | LSZH |
| Cable Length | 32.80 ft |
| Color Family | Green |
| Manufacturer | Eaton Corporation |
| Product Name | N836-10M Fiber Optic Duplex Patch Cable |
| Product Type | Network Cable |
| Compatibility | <p>Brocade FC8-64 Blade</p> |
| Product Color | Aqua |
| Product Model | N836-10M |
| Device Supported | Network Device |
Show all 24 specsShow fewer
| Fiber Optic Mode | Multi-mode |
|---|---|
| Country of Origin | China |
| Cable Characteristic | Patch Cable |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | N836-10M |
| Connector Type on First End | LC Network - Male |
| Connector Type on Second End | Mini-LC Network - Male |
| Manufacturer Website Address | http://www.eaton.com |
| Connector on First End Details | 2 x LC Network - Male |
| Connector on Second End Details | 2 x Mini-LC Network - Male |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm |
