10FT DISPLAYPORT KVM CABLE KIT 4K USB 3.5MM 3XM/3XM USB MM DP MM

SKU: 6XK617VPN: P783-010-DPU

In Stock

$55.00

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

10 ft. 3-in-1 DisplayPort, USB A/B and 3.5 mm cable connects KVM to your computer
10 ft. DisplayPort cable included for connecting a second monitor to the KVM switch
Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
Supports true 4:4:4 chroma subsampling to meet latest color standards
10 ft. USB A/B cable included for KVM's CAC port (smart cards, scanners, etc.)
This product is covered by a Lifetime Limited Warranty

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Cable Kit Specifically Designed for Select Tripp Lite KVMs to Save You Time and Money

Recommended for the Tripp Lite B002-DP2AC4 and B002-HD2AC4 NIAP KVM switches, this DisplayPort cable kit supports video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with true 4:4:4 chroma subsampling, as well as USB 2.0 data transfer speeds up to 480 Mbps. By combining several different cables into one convenient kit, you cut down on unnecessary clutter and costs.

10 ft. Cables Connect Your DisplayPort Computer to a Tripp Lite NIAP KVM Switch with CAC

This KVM cable kit includes three 10-foot cables for connecting a computer with two monitors to a KVM switch with a Common Access Card (CAC) port. The P783-010 features DisplayPort, USB A/B and 3.5 mm audio connectors on both ends for connecting your computer to a KVM switch. The P580-010 is a DisplayPort cable with male connectors on each end. The U022-010 is a USB cable that connects to the KVM's CAC port for accessing smart cards, scanners and biometric readers, including fingerprint readers, to bolster security.

Tech Specs

10FT DISPLAYPORT KVM CABLE KIT 4K USB 3.5MM 3XM/3XM USB MM DP MM specifications
Features	HDCP 2.2
Brand Name	Tripp Lite series
Cable Length	10 ft
Color Family	Black
Manufacturer	Eaton Corporation
Product Name	P783-010-DPU KVM Cable
Product Type	KVM Cable
Compatibility	<b>Tripp Lite KVM Switches:<br /></b> <ul> <li>B002-DP2AC4</li> <li>B002-HD2AC4</li> </ul>
Product Color	Black
Product Model	P783-010-DPU
Device Supported	Monitor
Package Contents	<ul> <li>P783-010-DPU KVM Cable</li> <li>P580-010 DisplayPort monitor cable (M/M), 10 ft.</li> <li>U022-010 USB A/B cable (M/M), 10 ft.</li> </ul>

Show all 23 specs

Country of Origin	China
Data Transfer Rate	480 Mbit/s
Supported Resolution	3840 x 2160
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	P783-010-DPU

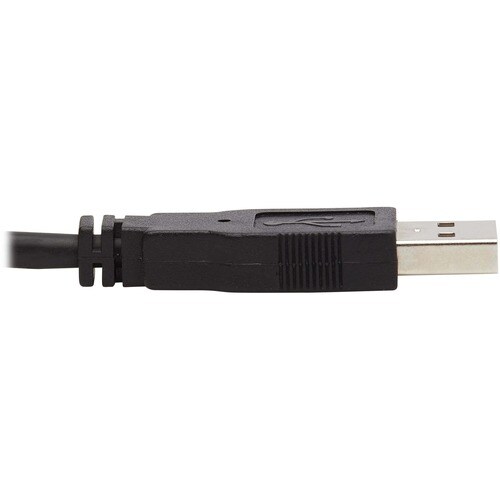

Connector Type on First End	USB 2.0 Type A - Male
Connector Type on Second End	Mini-phone Audio - Male
Manufacturer Website Address	http://www.eaton.com
Connector on First End Details	1 x DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details	1 x DisplayPort 1.2 Digital Audio/Video - Male
