EATON TRIPP LITE SERIES CONNECTIVIT

10FT 12FIBER MMF MTP/MTP MPO OM3 40GBE PLENUM AQUAN PATCH CABLE

SKU: PK9980VPN: N844-03M-12-P

10FT 12FIBER MMF MTP/MTP MPO OM3 40GBE PLENUM AQUAN PATCH CABLE

Key Features

  • Hi-density MTP/MPO 12-fiber connectors for reduced cabling
  • Push/Pull tab connectors offer maximum accessibility in high density installations; install / remove with one hand
  • OM3 rated 50/125 Multimode
  • Supports to 40GbE speeds
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

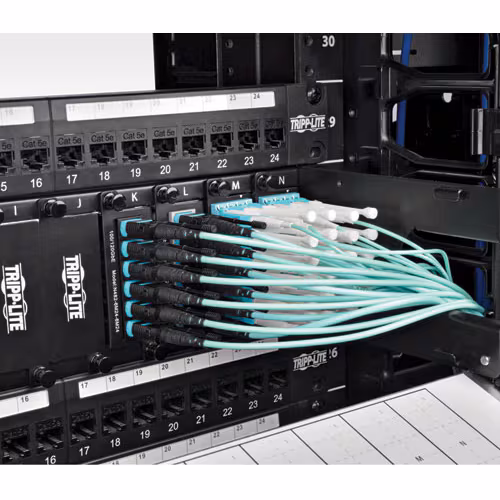

Tripp Lite MTP/MPO to MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms. They use a simple push-pull latching mechanism for easy and intuitive insertion and removal. The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 12 fibers, it provides up to 12 times the density, thereby offering savings in circuit card and rack space. N844 series cables are manufactured using laser-optimized, 50/125, OM3 multimode cable, and support speeds up to 40GbE.

Tech Specs

10FT 12FIBER MMF MTP/MTP MPO OM3 40GBE PLENUM AQUAN PATCH CABLE specifications
Brand NameTripp Lite series
Cable TypeFiber Optic
Jacket TypePlenum
Cable Length10 ft
Color FamilyGreen
ManufacturerEaton Corporation
Product Name3 Meter MTP / MPO Patch Cable, 12 Fiber, 40GbE Aqua OM3 Plenum
Product TypeNetwork Cable
Product ColorAqua
Product ModelN844-03M-12-P
Product SeriesN844
Shipping Width9"
Show all 27 specs
Shipping Height7"
Device SupportedNetwork Device
Fiber Optic ModeMulti-mode
Country of OriginChina
Cable CharacteristicPatch Cable
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberN844-03M-12-P
Connector Type on First EndMTP Network - Female
Connector Type on Second EndMTP Network - Female
Manufacturer Website Addresshttp://www.eaton.com
Shipping Weight (Approximate)1.28 oz
Connector on First End Details1 x MTP Network - Female
Connector on Second End Details1 x MTP Network - Female
Fiber Optic Cable Core/Cladding Specification50/125 µm
