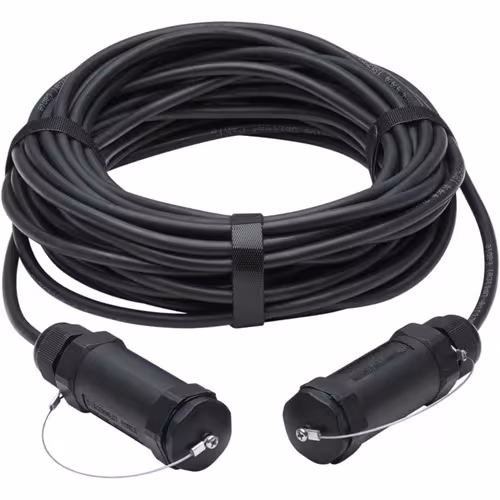

100M HDMI FIBER ACTIVE OPTICAL CABLE ARMORED HOODED 4K 60HZ M/M
100M HDMI FIBER ACTIVE OPTICAL CABLE ARMORED HOODED 4K 60HZ M/M
Key Features
- Reel of cable supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0
- Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
- Fiber optic strands transmit audio/video over longer distances than standard copper
- IP68-rated ends resist dust and endure immersion in 1.5 m of water up to 60 min.
- Armored cable with TPU jacket for outdoor use resists crushing, cutting and abrasions
- 3-year limited warranty
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
4K HDMI Cable Connects Industrial and Outdoor Security and Digital Signage Components
This high-speed HDMI cable securely connects HDMI-enabled laptops, tablets, Blu-ray players, game consoles, media servers or security cameras to 4K-ready HDTVs, HD monitors, projectors or home theater receivers. Because the cable uses optical fiber, it can transmit HDMI signals longer distances with no latency or loss. It also eliminates any EMI/RFI line noise that can interfere with your audio/video signal and disrupt the performance of your connected equipment.
Transmits Crystal-Clear 4K Video with HDR and 4:4:4 Color
The P568FA-100M-WR is rated up to 18 Gbps and supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified in HDMI 2.0. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. The cable also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor, as well as other current HDMI standards, including 3D, 48-bit Deep Color and Dolby 5.1-channel surround sound.
IP68-Rated Ends Resist Dust and Water

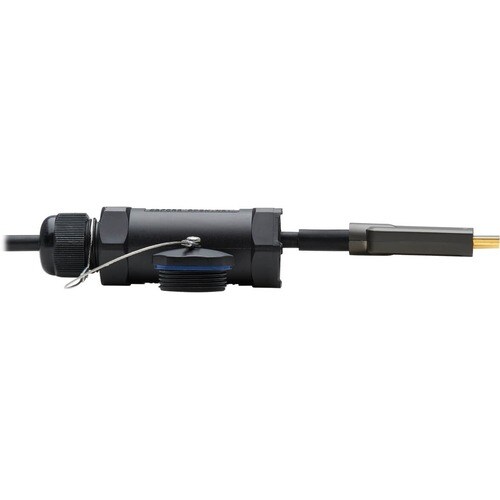

Both HDMI connectors are protected by molded, dust-resistant, IP68-rated watertight hoods, shells and caps. The IP68 rating means the connectors can endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance. The P568FA-100M-WR is ideal for industrial areas, such as factories and warehouses, and unforgiving outdoor installations, including malls, bus stops and stadiums, where dust, debris and water are present.
Armored Cable Jacket Ideal for Areas Where Extra Protection Is Needed
The thermoplastic polyurethane (TPU) jacket offers added protection against the elements, making the P568FA-100M-WR a recommended cable for outdoor applications, such as digital signage and surveillance systems. The TPU jacket is resistant to crushing, cuts and abrasion and is recommended for industrial spaces, including warehouses and medical facilities.
Advanced Fiber Cable Is Easier to Install than Copper
Because the fiber cable is slimmer and more flexible than standard copper HDMI cables, the P568FA-100M-WR is easier to install around corners and in hard-to-reach spaces behind equipment. It draws power from the connected device, so no external power supply is needed to transmit the HDMI signal across the longer distances unique to fiber optic cabling. Note: the cable must be installed in the correct direction to function properly, so please check the Source and Display labels on the connectors before installation.
Tech Specs
| Features | Removable Hood |
|---|---|
| Brand Name | Tripp Lite series |
| Cable Type | Fiber Optic |
| Jacket Type | Armored |
| Cable Length | 328.08 ft |
| Color Family | Black |
| Manufacturer | Eaton Corporation |
| Product Name | P568FA-100M-WR Fiber Optic Audio/Video Cable |
| Product Type | A/V Cable |
| Product Color | Black |
| Product Model | P568FA-100M-WR |
| Shipping Width | 11.61" |
Show all 28 specsShow fewer
| Contact Plating | Gold |
|---|---|
| Jacket Material | Thermoplastic Polyurethane (TPU) |
| Shipping Height | 14.37" |
| Device Supported | Notebook |
| Country of Origin | China |
| Data Transfer Rate | 18 Gbit/s |
| Supported Resolution | 3840 x 2160 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | P568FA-100M-WR |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video - Male |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video - Male |
| Manufacturer Website Address | http://www.eaton.com |
| Shipping Weight (Approximate) | 19.84 lb |
| Connector on First End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
