EATON TRIPP LITE SERIES CONNECTIVIT

100G MULTIMODE 50/125 OM4 FIBER CABLE 12F MPO/MPO-PC F/F AQUA 3M

SKU: S14715VPN: N845A-03M-12TAA

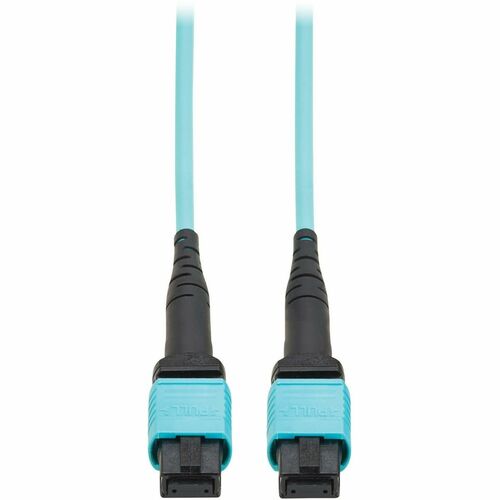

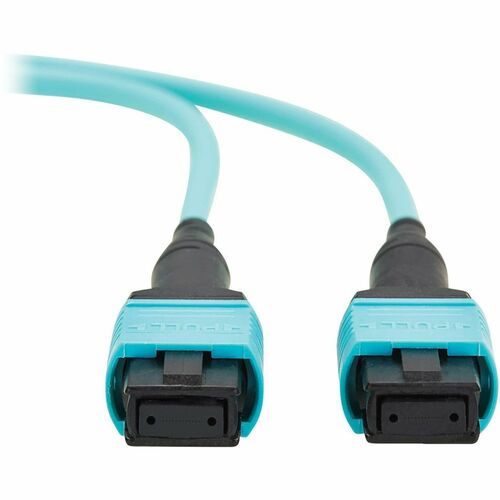

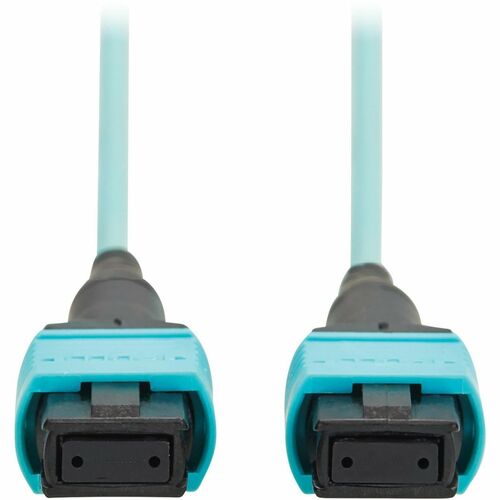

100G MULTIMODE 50/125 OM4 FIBER CABLE 12F MPO/MPO-PC F/F AQUA 3M

Key Features

  • OM4-rated cable recommended for 100 Gb speeds up to 100 meters (@ 1300 nm)
  • Type-A polarity ideal for straight through fiber applications
  • Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
  • Aqua OFNP jacket allows easy ID in a crowded switch or patch panel
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking

As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. The N845A-03M-12TAA is a Type-A cable, which is ideal for straight-through fiber applications.

Recommended for 100 Gb Ethernet Applications

This multimode 50/125 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1300 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.

Aqua Jacket Helps Avoid Misidentification That Can Cause Costly Downtime

The OM4-rated cable has an aqua jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. The connectors' slim boots allow easy one-handed installation and removal of the cable.

TAA-Compliant for GSA Schedule Purchases

The N845A-03M-12TAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.


Tech Specs

100G MULTIMODE 50/125 OM4 FIBER CABLE 12F MPO/MPO-PC F/F AQUA 3M specifications
Width7"
Height9"
FeaturesFire Resistant
Boot TypeSlim
Brand NameTripp Lite series
Cable TypeFiber Optic
Fiber Count12
Jacket TypeOFNP
Cable Length9.84 ft
Color FamilyGreen
Jacket ColorAqua
ManufacturerEaton Corporation
Show all 33 specs
Product NameN845A-03M-12TAA Fiber Optic Network Cable
Product TypeNetwork Cable
Product ColorAqua
Product ModelN845A-03M-12TAA
TAA CompliantYes
Fiber CategoryOM4
Connector ColorAqua
Jacket MaterialPolyvinyl Chloride (PVC)
Device SupportedNetwork Device
Fiber Optic ModeMulti-mode
Country of OriginTaiwan
Data Transfer Rate400 Gbit/s
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Manufacturer Part NumberN845A-03M-12TAA
Connector Type on First EndMPO Network
Connector Type on Second EndMPO Network
Manufacturer Website Addresshttp://www.eaton.com
Connector Gender on First EndFemale
Connector Gender on Second EndFemale
Connector on First End Details1 x MPO Network - Female
Connector on Second End Details1 x MPO Network - Female
