STARTECH.COM

10 PORT USB 3.0 HUB METAL TAA INDUSTRIAL MOUNTABLE HEAVY DUTY

SKU: 7AG139VPN: HB30A10AME

10 PORT USB 3.0 HUB METAL TAA INDUSTRIAL MOUNTABLE HEAVY DUTY

Key Features

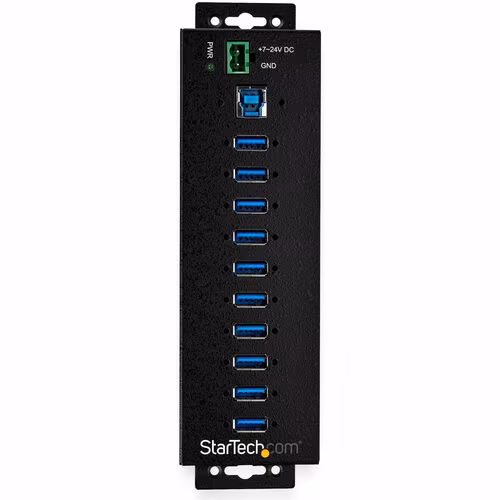

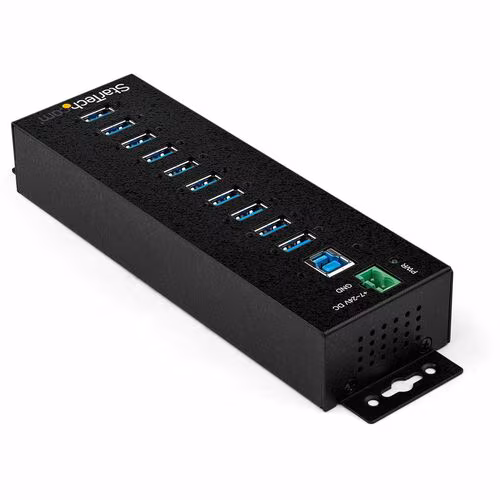

  • RUGGED & RELIABLE: With a metal housing, 15kV/8kV air/contact ESD protection & 350W surge protection this heavy duty USB 3.0 hub reliably connects 10 USB devices in harsh, industrial environments
  • MOUNTING OPTIONS: This mountable USB hub securely installs on/under a desk, to a wall or DIN rail using the built-in mounting ears & included DIN brackets, a 6ft (1.8 m) USB 3.0 cable is also included
  • POWER FLEXIBILITY: For unique power requirements the USB 3.0 hub supports a +7-24 volt DC range, powered via DC drop, LPS with a terminal block or by AC outlet with the included power supply adapter
  • POWER & CHARGE YOUR DEVICES: This USB 3.1 Gen 1 hub provides a total of 50W to power all downstream devices and can support BC 1.2 supplying up to 2.4A (12W) on any four ports based on available power
  • THE STARTECH.COM ADVANTAGE: StarTech.com offers a 2-year warranty and free lifetime technical support on this hub with a variety of USB cables available to connect downstream devices (sold separately)
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This TAA compliant 10-port industrial USB 3.0 hub gives you the scalability and power supply flexibility you need in harsh industrial environments, product, and repair labs, conference rooms or office workstations. With its rugged industrial-grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments. Perfect for Harsh Environments This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities. Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices. Connect & Charge More USB Devices Designed for a high volume of connections, this robust USB 3.0 hub offers 10 connection ports, for connecting more USB devices and peripherals. The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow. Locate the Hub Where You Need It Most With versatile installation options, you can install the hub where it's best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities. You have the option to power the industrial hub by connecting the hub directly to an outlet with the included external terminal block power adapter, for more convenient and flexible installation. StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com's line of industrial USB hubs. Works with Older USB Devices The rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions. The HB30A10AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

10 PORT USB 3.0 HUB METAL TAA INDUSTRIAL MOUNTABLE HEAVY DUTY specifications
Width2.2"
Height1.2"
Length7.8"
Brand NameStarTech.com
Form FactorExternal
Color FamilyBlack
ManufacturerStarTech.com
Product NameUSB Hub
Product TypeUSB Hub
UASP SupportYes
Product ColorBlack
TAA CompliantYes
Show all 25 specs
Host InterfaceUSB 3.0 Type B

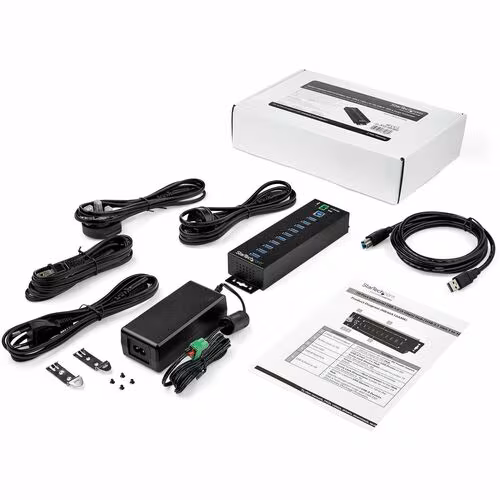

Package Contents<ul> <li>USB Hub</li> <li>USB 3.0 Host Cable</li> <li>Universal Power Adapter (NA/JP, ANZ, UK, EU)</li> <li>DIN Rail Brackets</li> <li>Mounting Screws</li> <li>Quick-Start Guide</li> </ul>
Country of OriginTaiwan
Packaged Quantity1 Each
Platform SupportedPC
Weight (Approximate)12.42 oz
Number of USB 3.1 Ports10
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberHB30A10AME
Total Number of USB Ports10
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
