1 PORT USB EXTENDER OVER CAT5E OR CAT6 ETHERNET CABLE RJ45 131FT

SKU: PQ7649VPN: USB110EXT2

In Stock

$141.69

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

1x USB 1.1 port, 1x RJ45 port
Support for a maximum distance of up to 40m (131ft), over Cat5 or Cat6 cabling
Full Speed USB 1.1 compliant host interface, with data bandwidth up to 12 Mbps
Efficient circuit design provides up to 300mA of power at the remote end
8kV Contact and 16kV Air Electrical Static Discharge (ESD) protection
Integrated USB cables
No driver or software required

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

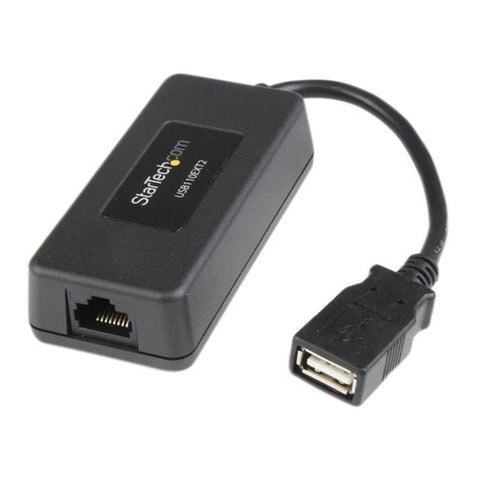

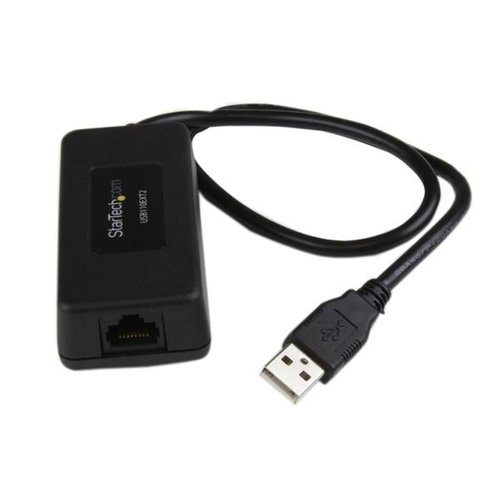

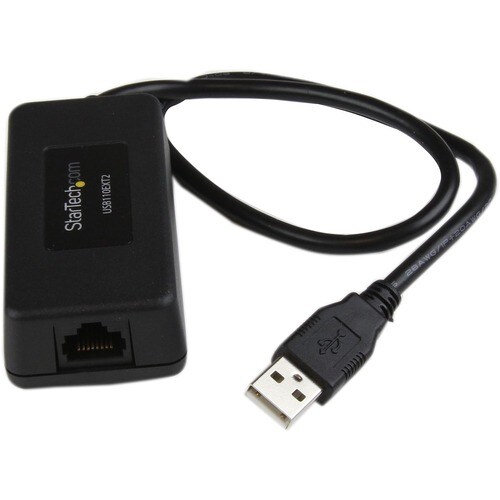

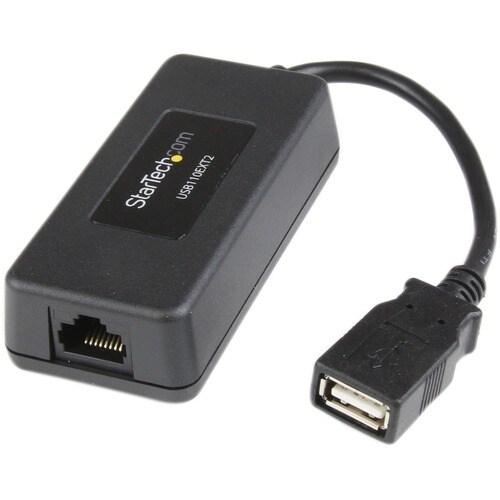

The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location. The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited. Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth. Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Tech Specs

1 PORT USB EXTENDER OVER CAT5E OR CAT6 ETHERNET CABLE RJ45 131FT specifications
USB	Yes
Width	1.6"
Height	1"
Length	3.3"
Brand Name	StarTech.com
Color Family	Black
Manufacturer	StarTech.com
Product Name	1 Port USB Over Cat5 / Cat6 Ethernet Extender - Up to 131ft (40m)
Product Type	USB Extender
Product Color	Black
Package Contents	<ul><li>1 x Local Unit</li><li>1 x Remote Unit</li><li>1 x Instruction Manual</li></ul>
Product Material	Plastic

Show all 25 specs

Country of Origin	China
Packaged Quantity	1 Each
Number of USB Ports	1
Additional Information	<ul><li>Provides more power at the remote end (up to 300mA), without external power, than most other similar USB Ethernet extenders, for more versatile device connection options</li><li>USB 1.1 extender supports any full-speed (12 Mbps) or low-speed (1.5 Mbps) USB peripheral at up to 165 feet (50 meters) - a cost-effective solution for extending USB devices that don't require the higher bandwidth offered by USB 2.0+</li><li>USB over Cat5/Cat6 eliminates the need to cascade expensive, inflexible and space consuming USB hubs or repeaters for extending the range of a USB device</li><li>1x USB 1.1 port, 1x RJ45 port</li><li>8kV Contact and 16kV Air Electrical Static Discharge (ESD) protection</li><li>Integrated USB cables</li><li>No driver or software required</li></ul>
Maximum Extended Range	131.23 ft
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	USB110EXT2
Certifications & Standards	<ul><li>CE</li><li>FCC</li></ul>
Maximum Data Transfer Rate	1.50 MB/s
Manufacturer Website Address	http://www.startech.com
Receiver Weight (Approximate)	3.88 oz
Transmitter Weight (Approximate)	3.88 oz
