SIERRA WIRELESS
XR60 5G ROUTER DUAL ETHERNET INCLUDES 5-YEAR AIRLINK COMPLETE
SKU: JN6472VPN: 1105099

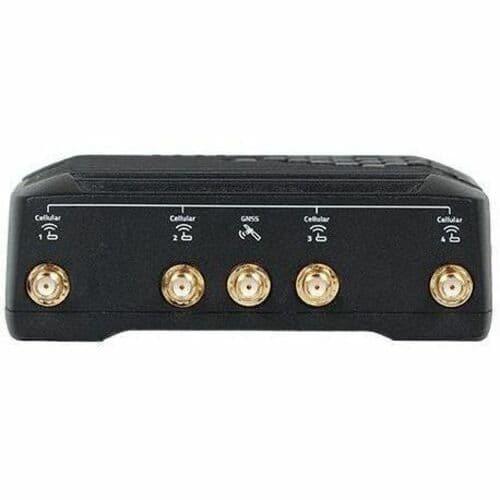

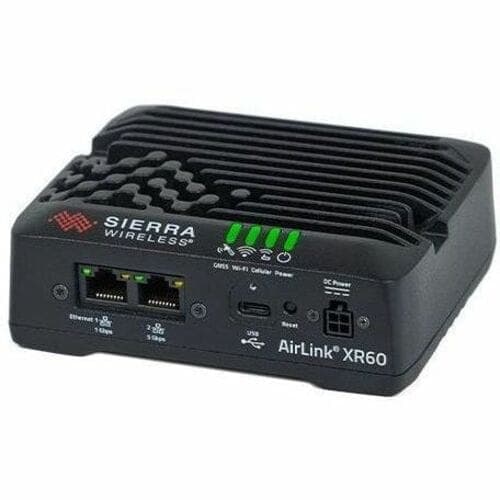

XR60 5G ROUTER DUAL ETHERNET INCLUDES 5-YEAR AIRLINK COMPLETE
Key Features
- 4x4 5G + LTE Cat-20
- 2x2 Wi-Fi 6 (optional)
- Dual-Band GNSS
- Single Serial / Single Ethernet (1 Gbps) or Dual Ethernet (1 Gbps + 5 Gbps)
- IP64 and MIL-STD-810H Rated
- Powered by AirLink® OS and AirLink® Complete
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The ultra-compact and highly ruggedized AirLink® XR60 delivers high performance 5G and Wi-Fi 6 connectivity to space-limited and harsh environments - from tight industrial enclosures to fast-moving vehicles. With advanced networking capabilities, private network support and edge computing capabilities, the XR60 future proofs your connectivity and accelerates your digital transformation.
A Fully Integrated Solution
The AirLink XR60 is fully integrated with AirLink Complete - a comprehensive service package that includes remote device and security management, expert technical support and extended hardware warranty. You can also opt for AirLink Premium - an advanced service package that includes all the benefits of AirLink Complete, enhanced with Advanced Mobility Reporting and Advance Replacement.
Ideal Applications
High-performance and reliable connectivity in fixed and mobile mission-critical applications:
- Critical Infrastructure
- Video Surveillance
- Smart Cities
- Manufacturing
- Public Safety Vehicles
- Fixed Wireless Access
- Fleet Vehicles
Benefits
- Designed for high performance with 5G, Wi-Fi 6, 5 Gbps Ethernet and USB-C technologies
- Ultra-compact design making it ideal for space-constrained industrial settings and vehicle applications
- Designed and thoroughly tested to thrive in the harshest conditions: shock and vibration resilience (MIL-STD-810H grade), extreme temperature and humidity operating range, intrinsic safety and power resilience
- Advanced networking capabilities with flexible software-defined routing functions
- Multi-band support for extensive public and private networking coverage
- Edge intelligence with industry-standard container support
- Redundant USB-C power supply input for increased reliability
XR60 Services and Support | AIRLINK COMPLETE
Maximize your AirLink XR60 hardware investment with AirLink Complete - a comprehensive service package designed to empower you with the tools and support necessary to secure, optimize and effortlessly scale your XR60 deployments.
AirLink Complete includes:
- AirLink Managerment Service (ALMS) for remote device and security management
- Extended hardware warranty up to 5 years maximum
- Expert technical support
Tech Specs
| USB | Yes |
|---|---|
| Depth | 3.9" |
| Width | 4.6" |
| Height | 1.5" |
| ISM Band | Yes |
| UNII Band | Yes |
| Brand Name | Sierra Wireless |
| Form Factor | DIN Rail Mountable |
| Manufacturer | Sierra Wireless |
| Network Band | Dual Band |
| Product Line | AirLink |
| Product Name | AirLink XR60 Modem/Wireless Router |
Show all 44 specsShow fewer
| Product Type | Modem/Wireless Router |
|---|---|
| USB Standard | USB 3.2 (Gen 1) |
| Firewall Type | NAT |
| Product Model | XR60 |
| VPN Supported | Yes |
| Processor Core | Quad-core (4 Core) |
| Processor Type | Cortex A53 |
| Product Family | AirLink |
| Standard Memory | 1.20 GB |
| Package Contents | <ul><li>AirLink XR60 Modem/Wireless Router</li><li>DC Power Cable</li><li>Quick Start Guide</li><li>AirLink Complete Leaflet</li></ul> |
| Wi-Fi Generation | Wi-Fi 6 |
| SIM Size Supported | Nano |
| Cellular Generation | 5G |
| Encryption Standard | SHA-384 |
| Ethernet Technology | 5 Gigabit Ethernet |
| Multi-SIM Supported | Yes |
| Weight (Approximate) | 1.15 lb |
| Flash Memory Capacity | 1.70 GB |
| ISM Maximum Frequency | 2.40 GHz |
| Wireless LAN Standard | IEEE 802.11ax |
| UNII Maximum Frequency | 5 GHz |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Manufacturer Part Number | 1105099 |
| Certifications & Standards | <ul><li> IECEE</li><li> E-Mark (UN ECE Regulation 10.05)</li><li> ISO7637-2</li><li> SAE J1455 (Shock, Vibration, Electrical)</li><li> ECEx</li><li> ATEX</li><li> EN50155</li><li> EN45545</li><li> FCC</li><li> IC/ISED</li><li> PTCRB</li><li> GCF</li><li> CE</li><li> RED</li><li> RCM</li></ul> |
| Manufacturer Website Address | http://www.sierrawireless.com |
| Number of SIM Card Supported | 2 |
| Total Number of Network Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Broadband Transmission Technology | Ethernet |
| Number of Broadband (RJ-45) Ports | 1 |
| Total Wireless Transmission Speed | 150 MB/s |
| Cellular Data Connectivity Technology | LTE |
