SIIG

WRLS IR SIGNAL EXTENDER KIT ALLOWS REMOTE CONTROL DEVICE

SKU: 9CY611VPN: CE-RC0111-S1

WRLS IR SIGNAL EXTENDER KIT ALLOWS REMOTE CONTROL DEVICE

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Extends IR signals allows remote control of your device from long distance

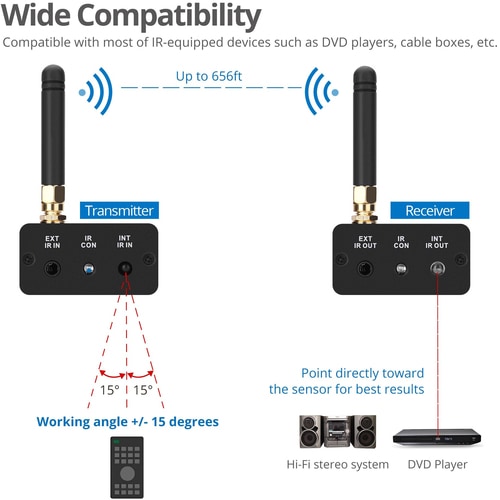

  • Wide coverage wireless signals penetrate walls and other obstructions allow you to move around freely and still have IR control of your A/V or other IR enabled equipment from remote locations up to 656ft (200m) away. Note: The wireless operating distance will vary depending on your building layout, surrounding obstructions, and electronic interference and may be less than the maximum distance
  • Compatible with IR remote controls using frequency range between 20KHz - 60KHz
  • High performance IR electronics provide real time signal transmission, virtually without delay, built-in LED indicator illuminates when the IR signal is received for easy status recognition
  • Portable size with included IR Blaster and IR Receiver extension cables allows easy and flexible placement anywhere in a home or office environment
  • Premium quality metal housing enhances heat dissipation and durability for dependable performance and long life

Tech Specs

WRLS IR SIGNAL EXTENDER KIT ALLOWS REMOTE CONTROL DEVICE specifications
Brand NameSIIG
ManufacturerSIIG, Inc
Product NameWireless IR Signal Extender Kit
Product TypeInfrared Extender
Package Contents<ul> <li>Wireless IR Signal Extender Kit</li> <li>2 x USB Power Cable</li> <li>IR Blaster Extension Cable</li> <li>IR Receiver Extension Cable</li> <li>User Reference Guide</li> </ul>
Product MaterialAluminum
Application/UsageA/V Equipment
Country of OriginChina
Packaged Quantity2
Additional Information<ul> <li>Wireless transmission distance: up to 656ft (200m), line-of-sight</li> <li>Wireless frequency: 915MHz</li> <li>Power gain: 10dBm</li> <li>IR frequency: 20KHz - 60KHz</li> <li>Housing: Aluminum</li> <li>Transmitter unit (TX): <ul> <li>Dimensions: 3.07" (L) x 1.22" (H) x 1.73" (W)</li> <li>Weight: 0.09 lbs</li> <li>Connector: <ul> <li>1x, 3.5mm, IR Jack, Receiver</li> <li>1x, DC Jack, USB power input</li> <li>1x, IR Receiver sensor</li> <li>1x, IR LED indicator</li> <li>1x, Click button, lock ID</li> </ul> </li> </ul> </li> <li>Receiver unit (RX): <ul> <li>Dimensions: 3.07" (L) x 1.22" (H) x 1.73" (W)</li> <li>Weight: 0.09 lbs</li> <li>Connector: <ul> <li>1x 3.5mm, IR Jack, Emitter</li> <li>1x DC Jack, USB power input</li> <li>1x IR Emitter sensor</li> <li>1x IR LED indicator</li> <li>1x Click button, lock ID</li> </ul> </li> </ul> </li> <li>USB Power cable: <ul> <li>Input: 4-Pin, USB Type-A, Power input</li> <li>Output: DC 5V output</li> <li>Power consumption: 300mW</li> </ul> </li> <li>Environmental conditions: <ul> <li>Operating temperature: 32 to 104 degrees F</li> <li>Storage temperature: -4 to 140 degrees F</li> <li>Relative humidity: 10 to 90% RH (non-condensing)</li> </ul> </li> </ul>
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Show all 14 specs
Manufacturer Part NumberCE-RC0111-S1
Manufacturer Website Addresshttp://www.siig.com
