WALL MOUNT WORKSTATION - WITH DESKTOP PC WALL MOUNT-BRACKET

SKU: JK5832VPN: 2PASTSC-WALL-MOUNT

In Stock

$680.59$662.89

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

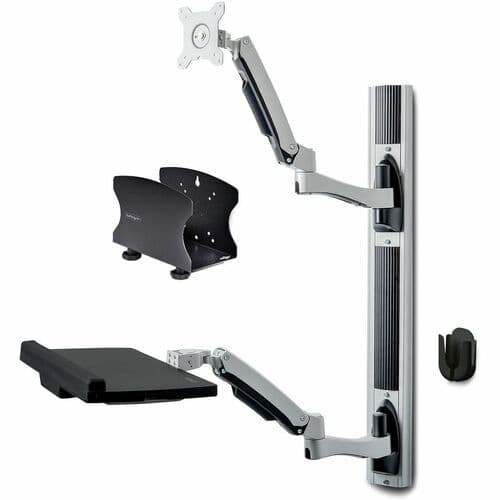

WALL MOUNT WORKSTATION: Ergonomic space-saving standing workstation w/ PC Wall Mount Bracket; Single-monitor VESA mount (75x75/100x100) for up to 32" displays (22lb/10kg); Fully articulating mechanical spring arms; Keyboard tray w/ removable wrist rest
STOW AWAY WORKSTATION: Independently adjustable arms allow for flush-to-wall positioning & feature a slide-out mouse tray and fold-away keyboard tray; For warehouse, office, clinic, & small areas; includes CPU/PC wall bracket & wall-mount mouse holder
DURABLE DESIGN: Die-cast aluminum arms with mechanical springs that passed 10,000 cycle test and are backed for 10 years for long-lasting performance; Sturdy keyboard arm is designed to reduce typing bounce and supports up to 3.5kg (7.7lb)
MOUNTING OPTIONS: Affix the computer/CPU Standing Desk to a single wall stud or concrete wall (wood screws and concrete anchors included); For maximum space-saving, mount only the spring arms; Adjust arm heights along the wall track up to 34.6in (88cm)
RANGE OF MOTION: Monitor arm features +90/-20° tilt, +/-90° swivel, 360° rotation; Keyboard Tray +90/- 20° tilt; Full-motion arms w/ height range of 12.4in (31.5cm); Monitor arm extends 24.1in (61.3cm) & keyboard tray 33.5in (85.3cm) from wall

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

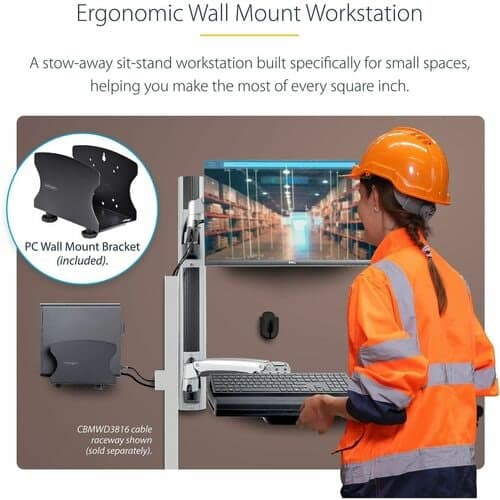

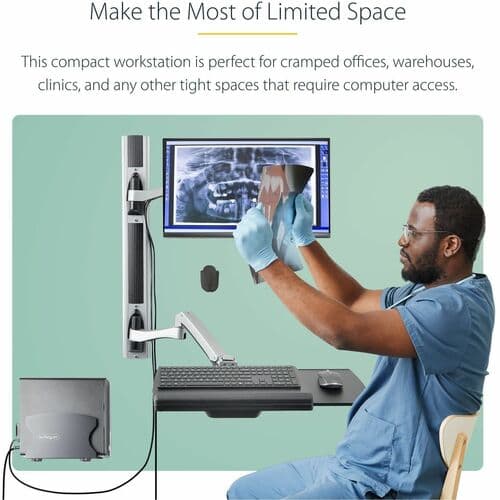

Mount this Wall Mount Workstation to create an ergonomic sit-stand desk setup for areas with limited space for a traditional desk. Use in offices, warehouses, (animal) clinics, or other limited space locations. The spring-assisted arms allow height adjustment to suit different users and maximize ergonomic positioning.

Height Adjustment with One Smooth Motion

The mechanical springs in the monitor and keyboard arms enable independent toolless height adjustment of up to 12.4in (31.5cm) with effortless one-touch motion. For additional adjustments, reposition the arms along the wall track (2.8ft / 88cm) for a different height range.

Optimal Adjustability

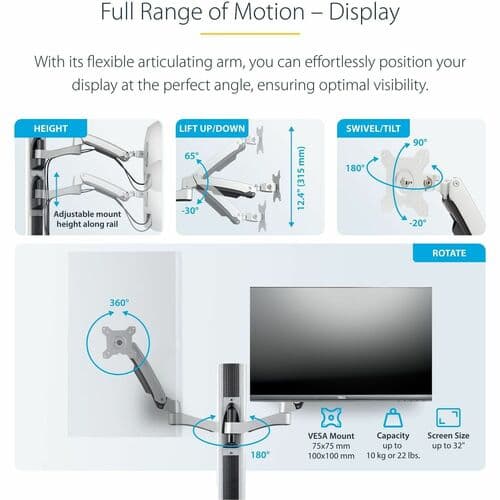

The VESA monitor mount supports a single standard 27" or 32" ultrawide monitor weighing up to 22lb (10kg) with 75x75 or 100x100 VESA mounting patterns. The monitor mount tilts +90°/ -20°; +/-90° swivels, and rotates up to 360° to accommodate vertical and horizontal monitor orientations.

The monitor arm extends 24.1in (61.3cm) from the wall, while the keyboard tray extends 33.5in (85.3cm) away from the wall.

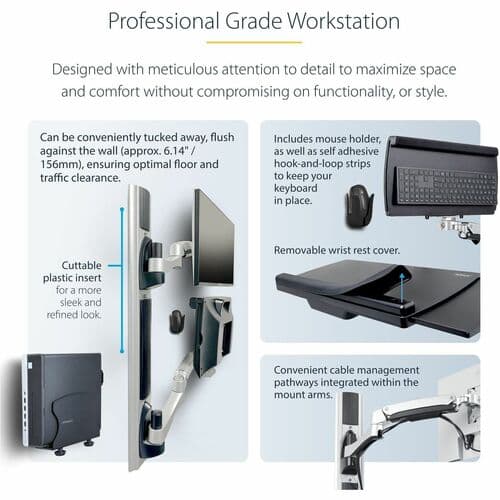

Keyboard and Mouse Trays

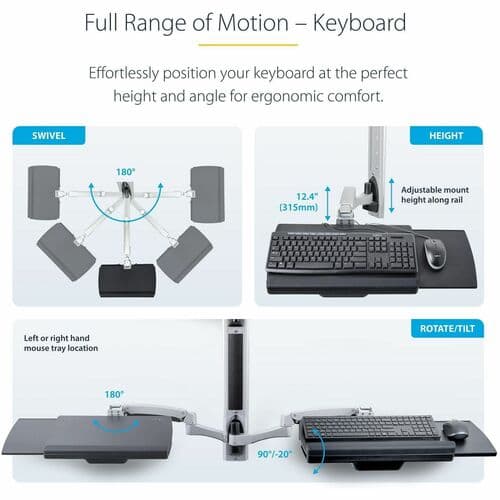

The workstation features a large keyboard tray (17.6x8.1in / 44.9x20.7cm) and a retractable ambidextrous mouse tray (8.5x8.4in / 21.7x21.3cm) that slides in and out of the keyboard tray to suit right and left-handed users. The mouse tray and wrist rest are removable enabling for frequent cleaning of all high-touch surfaces making it ideal for a shared workstation.

Free up additional floor space when the workstation is not in use by folding the workstation flush with the wall. Use the hook-and-loop strips to secure the keyboard to its tray and store the mouse in the dedicated holder.

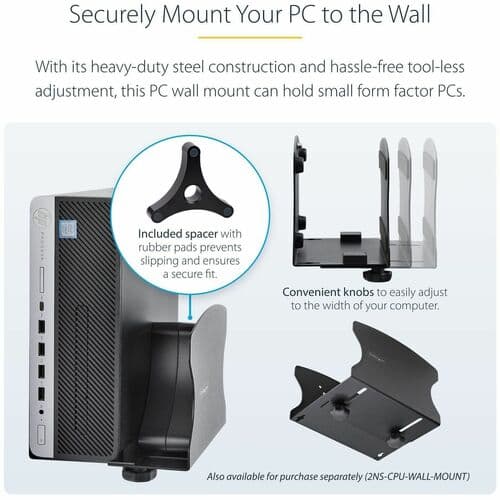

Desktop Computer Wall Mount

Optimize the workspace by mounting the desktop computer case to the wall under the keyboard tray with the included bracket (part 2NS-CPU-WALL-MOUNT). Enjoy unobstructed access to drive bays, peripheral ports, and wiring with the open design of the PC holder.

Included spacers ensure a snug fit with different CPU tower sizes ranging from 1.9 to 7.8in (50 to 20cm) for most Small Form Factor (SFF) computers.

For a neat and organized setup consider a wall cable management solution, part CBMWD3816 (sold separately).

Tech Specs

WALL MOUNT WORKSTATION - WITH DESKTOP PC WALL MOUNT-BRACKET specifications
Width	34.60"
Height	6.10"
Length	21.60"
Features	Easy One Touch
Brand Name	StarTech.com
Form Factor	Wall Mountable
Orientation	Horizontal/Vertical
Color Family	Black
Manufacturer	StarTech.com
Product Name	Wall Mount
Product Type	Wall Mount
Product Color	Black

Show all 29 specs

TAA Compliant	Yes
Device Supported	Workstation
Mounting Pattern	75 x 75

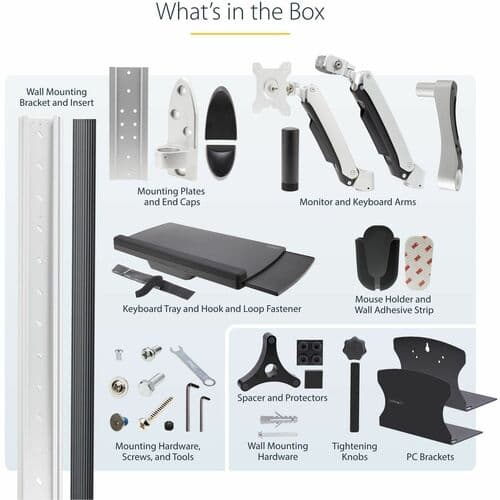

Package Contents	<ul><li> Wall Mount</li><li> 1 x Spring Arm, Display</li><li> 1 x Spring Arm, Keyboard Tray</li><li> 2 x Swivel Arms</li><li> 2 x Mounting Plates, Spring Arm</li><li> 2 x Upper Decorative Covers</li><li> 2 x Swivel Arm Mounts</li><li> 2 x Lower Decorative Covers</li><li> 2 x Spring Arm Post</li><li> 1 x Wall Mounting Rail, Track</li><li> 1 x Wall Mounting Rail, Track Cover</li><li> 1 x Keyboard Tray Assembly</li><li> 1 x Mouse Holder</li><li> 1 x Mouse Holder Adhesive Pad</li><li> 2 x Adhesive Hook And Loop Strips</li><li> 1 x Mounting Bracket, CPU Holder</li><li> 1 x Sliding Bracket, CPU Holder</li><li> 2 x Rubber Self-Adhesive Strips, CPU Holder</li><li> 2 x Wall Mounting Screws, CPU Holder</li><li> 2 x Plastic Spacers, CPU Holder</li><li> 8 x Rubber Self-Adhesive Spacers, CPU Holder</li><li> 4 x Rubber Self-Adhesive Pads, CPU Holder</li><li> 2 x Concrete Wall Anchors, CPU Holder</li><li> 2 - Hand Knobs, CPU Holder</li><li> 2 x 2.5mm Hex Key</li><li> 2 x 5mm Hex Key</li><li> 4 x M4 x 10mm Screws</li><li> 4 x M4 x 6mm Screws, Hex Key</li><li> 2 x M4x6mm Screws, Phillips</li><li> 8 x M6 x 8mm Screws</li><li> 4 x M6 x 18mm Screws</li><li> 6 x M5 x 4mm Set Screws</li><li> 12 x Concrete Anchors</li><li> 8 x Wall Mounting Screws</li><li> 6 x Wall Mounting Lag Screws</li><li> 1 x 10mm Wrench</li></ul><p><br /></p>
Product Material	Steel
Application/Usage	Office
Country of Origin	Taiwan
Height Adjustable	Yes
Packaged Quantity	1
Weight (Approximate)	23.20 lb
Maximum Load Capacity	22 lb
VESA Mount Compatible	Yes
Manufacturer Part Number	2PASTSC-WALL-MOUNT
Manufacturer Website Address	http://www.startech.com
Number of Displays Supported	1
Maximum Screen Size Supported	32"
Minimum Screen Size Supported	27"
