STARTECH.COM

WALL MOUNT PATCH PANEL CABINET 8U VERTICAL NETWORK ENCLOSURE

SKU: 2LQ985VPN: RK830WALVS

WALL MOUNT PATCH PANEL CABINET 8U VERTICAL NETWORK ENCLOSURE

Key Features

  • MOUNT YOUR SERVERS VERTICALLY: This 8U vertical wall mount server rack cabinet features a space saving low profile design & provides up to 30" of mounting depth while only extending 15" from the wall
  • INCLUDES AN EXTRA 2U OF MOUNTING SPACE: 2U of angled 2 post horizontal mounting space is provided above the vertical server mounting rails for switches, patch panels, and routers up to 4.7" in depth
  • TECH SPECS: 8U 19" Vertical Wallmount Enclosure | Pre-Assembled | EIA/ECA-310-E | Rear & Bottom Cable Routing | 200 lb (90 kg) Weight Capacity | Mounting Screws Incl. | Optional 2x 120mm Fans
  • MULTIPLE SECURITY FEATURES: Locking side panels w/ 4 keys, for multiple levels of security; cabling can routed into the cabinet from the wall without exposing cables for extra security
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; this vertical wallmount network/data rack is backed for 5 years by StarTech.com, includes free 24/5 North America based tech support
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

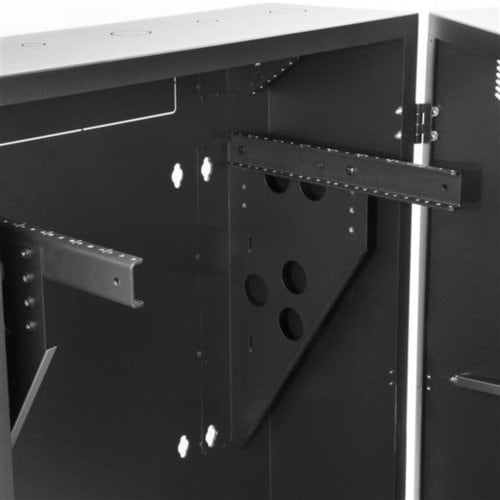

This 8U vertical server cabinet offers a space-saving way to keep your network and server equipment secure. With its 30 in. depth, and a weight capacity of up to 200 lb. (90.7 kg), the server rack/cabinet is designed to fit your needs. It also features an additional 2U mounting bracket positioned toward the top of the enclosure, that you can use to mount patch cables or other shallow rack-mount equipment.Free up spaceWall-mount your equipment, even if you don't have enough space for a full-sized rack or cabinet. This low-profile server cabinet is perfect for areas where space is at a premium, such as an office. The cabinet saves space by extending only minimally from the wall and housing the length of your equipment vertically. This reduces the horizontal footprint of your equipment while still providing plenty of room for your servers, patch panels, and switches.Keep your equipment cool and secureTo help keep your equipment secure, the vertical server cabinet/network rack features a sturdy metal design and a lock on both the door and access panel. It is also vented, providing passive cooling to help keep your equipment running at suitable temperatures.Easy, hassle-free installationThe server rack comes fully assembled and includes all of the necessary hardware to install equipment, making installation fast and easy. The mounting holes are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common North American wall-frame stud spacing.The RK830WALVS is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Tech Specs

WALL MOUNT PATCH PANEL CABINET 8U VERTICAL NETWORK ENCLOSURE specifications
Width25.4"
Height37"
Length15.1"
Brand NameStarTech.com
Rack Depth29.90"
Form FactorWall Mountable
Rack Height8U
Color FamilyBlack
ManufacturerStarTech.com
Product Name8U Vertical Server Cabinet - 30 in. depth
Product TypeRack Cabinet
Product ColorBlack
Show all 29 specs
Package Contents<ul> <li>8U Vertical Server Cabinet - 30 in. depth</li> <li>2 x Door Keys</li> <li>2 x Front-Panel Keys</li> <li>32 x 12-24 Screws</li> <li>32 x Plastic Washers</li> <li>1 x Instruction Manual</li> </ul>
Product MaterialSteel
Application/UsageServer
Assembly RequiredNo
Country of OriginChina
Packaged Quantity1 Each
REACH free of SVHCYes
Weight (Approximate)80.47 lb
REACH Declaration URLhttps://media.startech.com/cms/pdfs/rk830walvs_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/rk830walvs_rohs.pdf
Maximum Weight Capacity198.42 lb
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberRK830WALVS
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
End of Life Manual AvailabilityYes
