VGA VIDEO OVER CAT5 EXTENDER REMOTE VIDEO DISPLAY RECEIVER
SKU: N72333VPN: ST121R
VGA VIDEO OVER CAT5 EXTENDER REMOTE VIDEO DISPLAY RECEIVER
Key Features
- Extends video cables by up to 500 ft. (150m)
- Pure hardware design, no software or drivers required

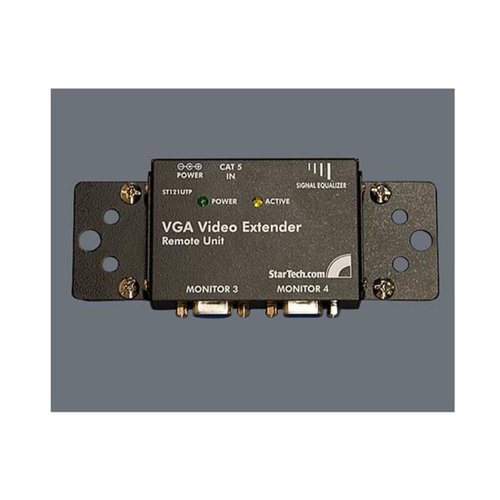

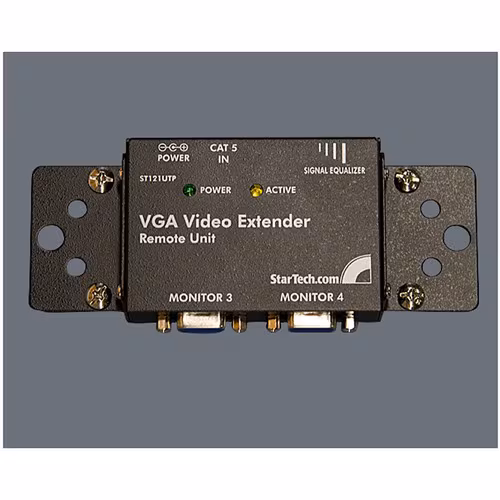

- Included mounting brackets
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

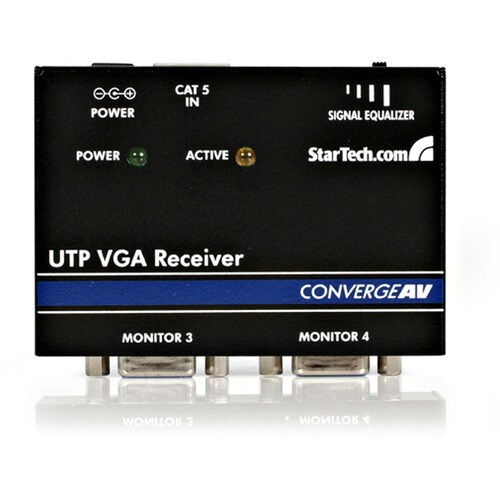

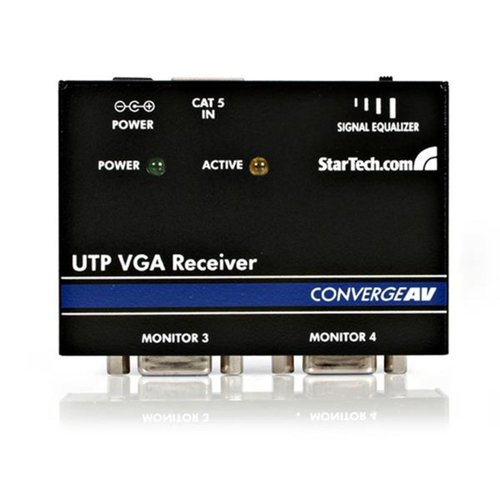

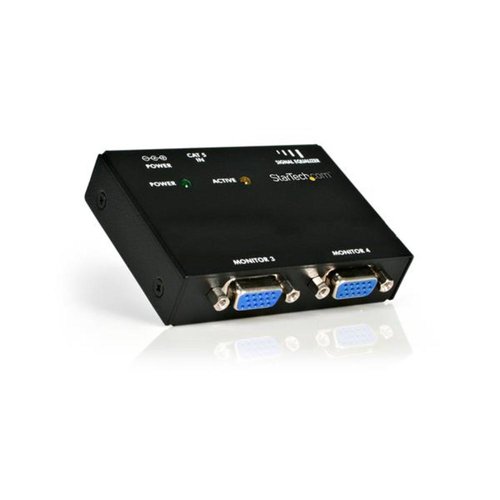

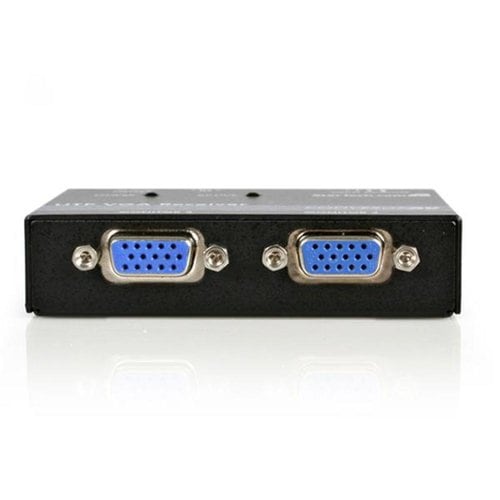

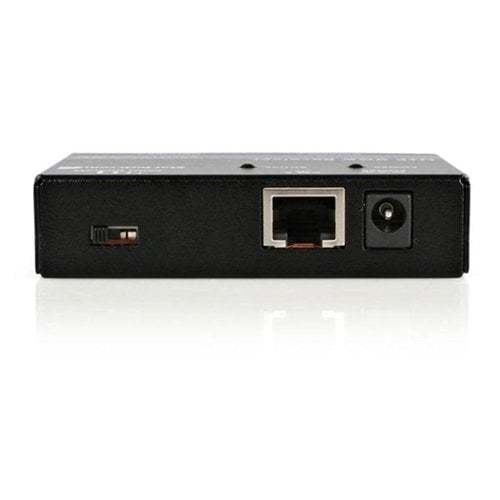

The ST121R VGA over Cat5 Video Extender Receiver is specifically designed for use as the receiver unit to the StarTech.com ST1218T 8 Port VGA over Cat5 UTP Extender transmitter units, allowing you to split and extend a single VGA source to up to four remote displays. From the transmitter device, the VGA video signal is sent over standard 4 pair Category 5 or better UTP cable to remote monitors, each connected to an ST121R Cat 5 VGA receiver - supporting distances of up to 150 meters (500 feet). A cost-effective video extension solution, this receiver is ideal for a wide range of environments including airports, bus depots, retail, or any large buildings where VGA video needs to be extended to long connection distances. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
Tech Specs
| VGA Out | Yes |
|---|---|
| Brand Name | StarTech.com |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Product Name | VGA Video Extender Remote Receiver over Cat 5 |
| Product Type | Video Extender Receiver |
| Input Voltage | 9 V DC |
| Product Color | Black |
| TAA Compliant | Yes |
| Graphics Modes | VGA |
| Receiver Depth | 2.60" |
| Receiver Width | 3.30" |
Show all 30 specsShow fewer
| Network (RJ-45) | Yes |
|---|---|
| Receiver Height | 0.80" |
| Package Contents | <ul> <li>VGA Over CAT5 UTP Receiver</li> <li>1 x 9V Power Adapter</li> <li>1 x Instruction Manual</li> </ul> |
| Country of Origin | Taiwan |
| Packaged Quantity | 1 Each |
| Media Type Supported | Twisted Pair |
| Number of VGA Outputs | 2 |
| Additional Information | <ul><li>Cat5 extension design allows you to make use of existing Cat 5 or better wiring infrastructure</li><li>Extends the connection distance of VGA displays by up to 500 feet (150 meters) offering flexibility in the placement of your equipment</li><li>Included mounting brackets provide versatile mounting options such as a wall, desk, or cabinet for a clean and manageable solution</li></ul> |
| Connectivity Technology | Wired |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | ST121R |
| Maximum Video Resolution | 1024 x 768 |
| Maximum Operating Distance | 492.13 ft |
| Twisted Pair Cable Standard | Category 5 |
| Manufacturer Website Address | http://www.startech.com |
| Receiver Weight (Approximate) | 5.93 oz |
| Number of Network (RJ-45) Ports | 1 |
| Number of Output Devices Supported | 2 |
