VGA VIDEO OVER CAT5 EXTENDER 80M VIDEO MONITOR DISPLAY EXTENDER

SKU: BH3733VPN: ST121UTPEP

In Stock

$156.81$144.65

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Extends video signal by up to 250 ft. (80m)
Supports 1920x1200 or 1600x1200 resolutions at 150 ft. (50m)
Supports 1280x1024 or 1024x768 resolutions at 250 ft. (80m)
Mounting bracket included
Single power adapter can be connected at local or remote end of the extension
Uses standard Cat 5 or better cabling
Kit consists of 1 Base unit and 1 Remote unit
Pure hardware design - no software or drivers required

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

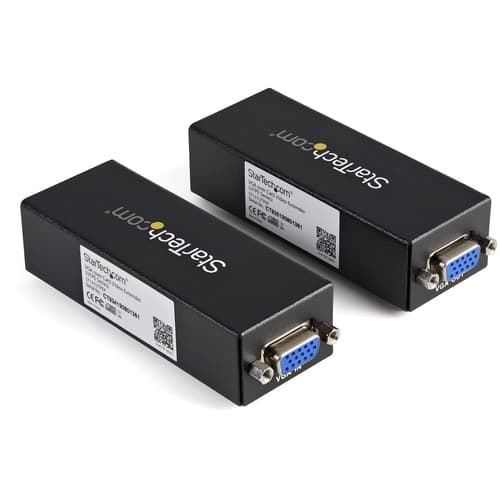

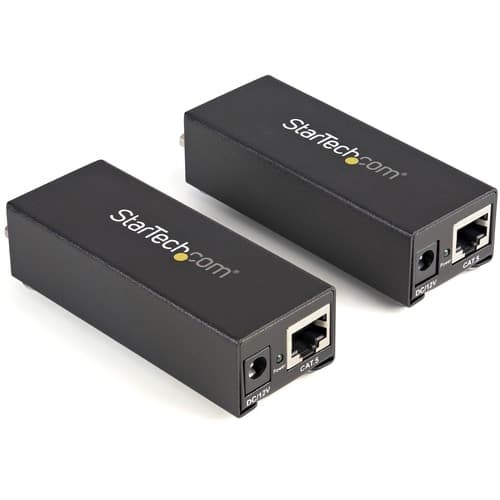

The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5or better UTP cable, terminated with RJ45 connectors). Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application. To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

VGA VIDEO OVER CAT5 EXTENDER 80M VIDEO MONITOR DISPLAY EXTENDER specifications
VGA In	Yes
VGA Out	Yes
Brand Name	StarTech.com
Color Family	Black
Manufacturer	StarTech.com
Product Name	VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender
Product Type	Video Extender Transmitter/Receiver
Product Color	Black
TAA Compliant	Yes
Graphics Modes	WUXGA
Receiver Depth	3.90"
Receiver Width	5.40"

Show all 37 specs

Network (RJ-45)	Yes
Receiver Height	1"
Package Contents	<ul> <li>1 x VGA over Cat5 Transmitter</li> <li>1 x VGA over Cat5 Receiver</li> <li>1 x Installation Bracket (w/ screws)</li> <li>1 x VGA Cable</li> <li>1 x Universal Power Adapter (NA/UK/EU/AUS)</li> <li>1 x Instruction Manual</li> </ul>
Country of Origin	Taiwan
Packaged Quantity	1 Kit
Transmitter Depth	3.90"
Transmitter Width	5.40"
Transmitter Height	1"
Media Type Supported	Twisted Pair
Number of VGA Inputs	1
Number of VGA Outputs	1
Additional Information	<ul><li>Extends the connection distance of VGA displays by up to 250 feet (80 meters) offering flexibility in the placement of your equipment</li><li>Included mounting bracket provides versatile mounting options such as a wall, desk or cabinet, for a clean and manageable installation</li><li>The ST121UTPEP only requires one power adapter, installed at either the local or remote unit, wherever is most convenient for the application.</li></ul>
Connectivity Technology	Wired
Environmentally Friendly	Yes
Manufacturer Part Number	ST121UTPEP
Maximum Video Resolution	1920 x 1200
Certifications & Standards	<ul><li>CE</li><li>FCC</li></ul>
Maximum Operating Distance	262.47 ft
Twisted Pair Cable Standard	Category 5e
Manufacturer Website Address	http://www.startech.com
Receiver Weight (Approximate)	9.28 oz
Number of Network (RJ-45) Ports	2
Transmitter Weight (Approximate)	9.28 oz
Number of Input Devices Supported	1
Number of Output Devices Supported	1
