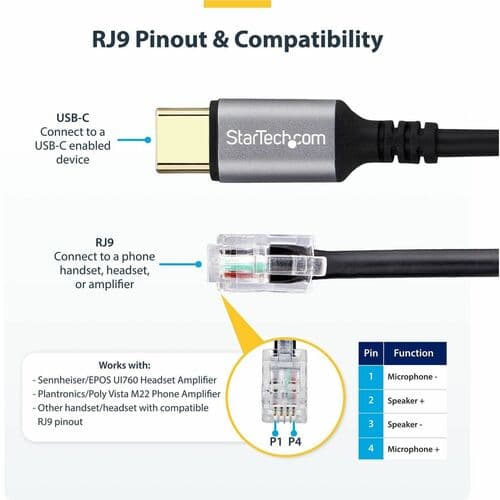

USB-C TO RJ9 ADAPTER/DONGLE - FOR OFFICE PHONE HANDSET/HEADSET
$47.14$35.19
STARTECH.COM
VGA VIDEO EXTENDER OVER CAT5 (ST121 SERIES)
SKU: 006986VPN: ST121UTP
VGA VIDEO EXTENDER OVER CAT5 (ST121 SERIES)
Key Features
- Consists of 1 Base unit for the local display, and 1 Remote unit for the remote display (up to 2 monitors can be connected at each location)
- Extends video cables by up to 500 ft. (150m)
- Uses standard Category 5 straight-wired, twisted-pair, network patch cable for economical and reliable data transmission
- Included mounting brackets
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

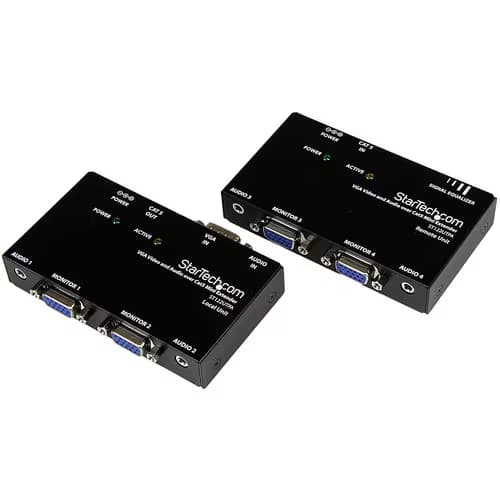

The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required.

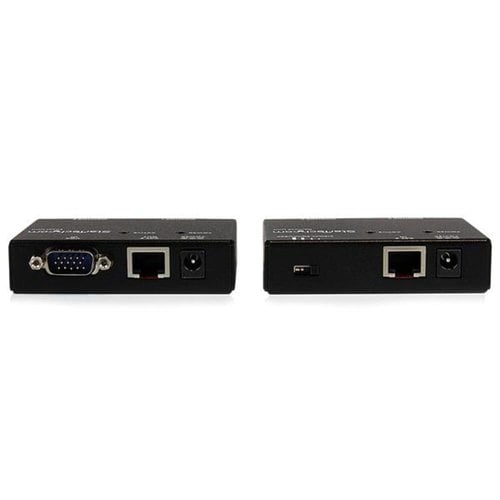

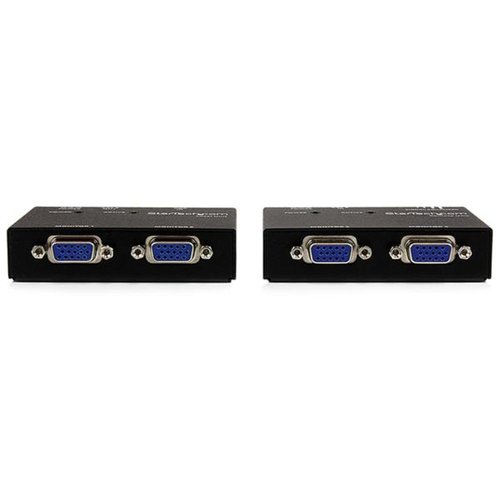

The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total.
The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall, desk or cabinet.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
Tech Specs
| Brand Name | StarTech.com |
|---|---|
| Manufacturer | StarTech.com |
| Product Name | VGA Video Extender over CAT5 (ST121 Series) |
| Product Type | Video Extender Transmitter/Receiver |
| TAA Compliant | Yes |
| Graphics Modes | SXGA |
| Receiver Depth | 2.40" |
| Receiver Width | 3.30" |
| Network (RJ-45) | Yes |
| Receiver Height | 0.80" |
| Package Contents | <ul> <li>VGA Video Extender over CAT5 (ST121 Series)</li> <li>1 x Mounting Bracket for Receiver (w/ screws)</li> <li>2 x Sets Rubber Feet</li> <li>2 x Power Adapter</li> <li>1 x Instruction Manual</li> </ul> |
| Country of Origin | Taiwan |
Show all 31 specsShow fewer
| Transmitter Depth | 2.40" |
|---|---|
| Transmitter Width | 3.30" |
| Transmitter Height | 0.80" |
| Media Type Supported | Twisted Pair |
| Additional Information | <ul><li>Cat5 extension design allows you to make use of existing Cat 5 or better wiring infrastructure</li><li>Extends the connection distance of VGA displays by up to 500 feet (150 meters) offering flexibility in the placement of your equipment</li></ul> |
| Connectivity Technology | Wired |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | ST121UTP |
| Maximum Video Resolution | 1280 x 1024 |
| Maximum Operating Distance | 500 ft |
| Environmental Certification | EU RoHS |
| Twisted Pair Cable Standard | Category 5e |
| Manufacturer Website Address | http://www.startech.com |
| Receiver Weight (Approximate) | 11.82 oz |
| Number of Network (RJ-45) Ports | 2 |
| Transmitter Weight (Approximate) | 11.82 oz |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 4 |
