STARTECH.COM

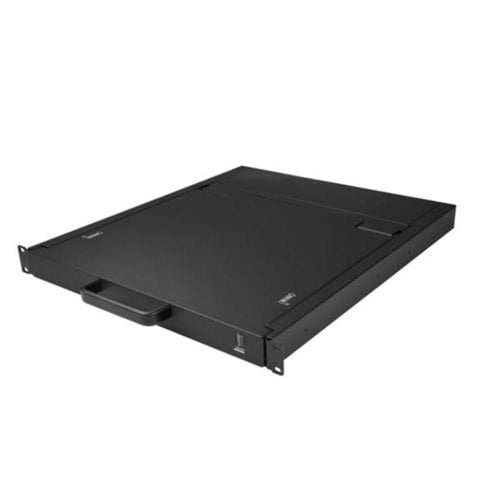

VGA RACKMOUNT KVM CONSOLE INTEGRATED LCD MONITOR KVM SWITCH

SKU: 5BH436VPN: RKCONS1901

VGA RACKMOUNT KVM CONSOLE INTEGRATED LCD MONITOR KVM SWITCH

Key Features

  • FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
  • VERSATILE INTERFACES: Rack mount monitor w/ 19" Active Matrix TFT 1280 x 1024 LCD| 1U height | 99 key full keyboard with numeric keypad + Trackpad | Supports VGA and USB | Integrated Power Supply
  • MAX DURABILITY: Features durable steel housing design and rails that withstand frequent use, rated to work in environments from 0 to 40 deg. C and a 50,000 hour MTBF
  • TESTED AND PROVEN: Our KVM consoles are backed by a 2 year warranty with 24/5 by multi-lingual tech support based in North America with free technical support for the life of the product
  • KVM Collection: Can be purchased with integrated 8-port (RKCONS1908K) or 16-port (RKCONS1916K) KVM or use with StarTech.com enterprise KVM switches: SV831DUSB, SV831DUSBUK, SV1631DUSBU, SV1631DUSBUK
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control. Maximize your IT budget, minimize your hassle This KVM console provides all the essential controls you'll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024. Maximize your screen space This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity. Clutter-free monitoring The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free. Hassle-free system integration The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure. The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

VGA RACKMOUNT KVM CONSOLE INTEGRATED LCD MONITOR KVM SWITCH specifications
VGAYes
Depth21"
Width19"
Height1.7"
KeyboardYes
Brand NameStarTech.com
Daisy ChainNo
Device TypeLCD Rack Console
Rack Height1U
Screen ModeSXGA
Screen Size19"
ManufacturerStarTech.com
Show all 34 specs
Product Name1U Single Port KVM Console for Server Rack - VGA KVM - 19in
Product TypeLCD Rack Console
Product ModelRKCONS1901
WEEE Statementhttps://media.startech.com/cms/pdfs/rkcons1901_weee.pdf
Package Contents<ul> <li>1U Single Port KVM Console for Server Rack - VGA KVM - 19in</li> <li>12 x Mounting Rails </li> <li>1 x KVM Cable </li> <li>8 x M5 Cage Nuts </li> <li>8 x M5 Screws </li> <li>5 x Regional Power Cords (NA, JP, UK, EU, ANZ) </li> <li>1 x Quick-Start Guide </li> </ul>
Country of OriginChina
Packaged Quantity1 Each
Power Consumption17 W
Screen Resolution1280 x 1024
Platform SupportedPC
REACH free of SVHCYes
Display Screen TypeLCD
Number of VGA Ports1
Pointing Device TypeTouchPad
REACH Declaration URLhttps://media.startech.com/cms/pdfs/rkcons1901_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/rkcons1901_rohs.pdf
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Manufacturer Part NumberRKCONS1901
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
End of Life Manual AvailabilityYes
