USB VGA KVM CONSOLE EXTENDER OVER CAT5 UTP W/ CABLES

SKU: BH1601VPN: SV565UTPU

In Stock

$263.41$242.06

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

REMOTE OPERATION: Use the VGA over CAT5 extender to control a USB & VGA KVM or PC up to 500ft (150m) away; Supports hotkey commands, auto-switching between host and remote unit or dedicated control
COST-EFFECTIVE KVM EXTENSION: The KVM Extender provides a cost-effective way to convert existing standard KVM units into remote-access hardware, extending the capabilities of your hardware
FLEXIBLE CONFIGURATION: KVM console extender can be used with a single computer or connected to an existing KVM switch; Offers broad support for USB keyboards, mice, and even most combo/wireless configurations
EASY INSTALLATION: Plug and play KVM over Ethernet extender is easy to install using industry-standard UTP network cables and is OS independent, requiring no software or drivers to install
THE IT PRO'S CHOICE: Designed and built for IT Professionals, this CAT5 KVM extender is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

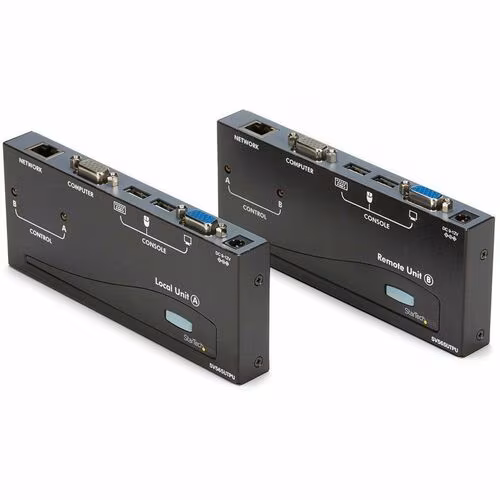

The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

Tech Specs

USB VGA KVM CONSOLE EXTENDER OVER CAT5 UTP W/ CABLES specifications
USB	Yes
VGA	Yes
Brand Name	StarTech.com
Form Factor	Desktop
Color Family	Black
Graphic Mode	XGA
Manufacturer	StarTech.com
Product Name	USB VGA KVM Console Extender over CAT5 UTP - 500 ft
Product Type	KVM Console/Extender
Input Voltage	240 V AC
Product Color	Black
Product Model	SV565UTPU

Show all 48 specs

TAA Compliant	Yes
KVM Technology	Analog
Receiver Width	6.10"
WEEE Statement	https://media.startech.com/cms/pdfs/sv565utpu_weee.pdf
Network (RJ-45)	Yes
Receiver Height	0.80"
Receiver Length	3"
Package Contents	<li>USB VGA KVM Console/Extender</li><li>2 x 6 ft 2-in-1 USB VGA KVM Cables</li><li>8 x Rubber Feet</li><li>1 x Power Adapter</li><li>1 x Instuction Manual</li>
Country of Origin	Taiwan
Packaged Quantity	1 Kit
Power Consumption	5.40 W
Transmitter Width	6.10"
REACH free of SVHC	Yes
Transmitter Height	0.80"
Transmitter Length	3"
Input Voltage Range	110V AC to 240V AC
Number of USB Ports	4
Number of VGA Ports	4
REACH Declaration URL	https://media.startech.com/cms/pdfs/sv565utpu_rohs.pdf
Connectivity Technology	Wired
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/sv565utpu_rohs.pdf
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmentally Friendly	Yes
Manufacturer Part Number	SV565UTPU
Maximum Video Resolution	1024 x 768
Maximum Operating Distance	500 ft
Environmental Certification	EU RoHS
Manufacturer Website Address	http://www.startech.com
Number of Computers Supported	2
Receiver Weight (Approximate)	1.32 lb
Additional Warranty Information	This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
End of Life Manual Availability	Yes
Number of Local Users Supported	1
Number of Network (RJ-45) Ports	2
Number of Remote Users Supported	1
Transmitter Weight (Approximate)	1.32 lb
