STARTECH.COM

USB DUAL VGA KVM EXTENDER OVER CAT5 UTP - 650FT/200M

SKU: PX1680VPN: SV565DUTPU

USB DUAL VGA KVM EXTENDER OVER CAT5 UTP - 650FT/200M

Key Features

  • Dual VGA KVM extender at 1920x1200 resolution
  • Can be used with a single computer or connected to an existing KVM switch
  • Extend up to 650 ft. (200 m) using 2 industry-standard UTP network cables
  • KVM console connections available on both the local and remote end
  • Supports most combo keyboard and mouse sets (including Wireless)
  • Intuitive hot-key commands for fine-tuning video
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

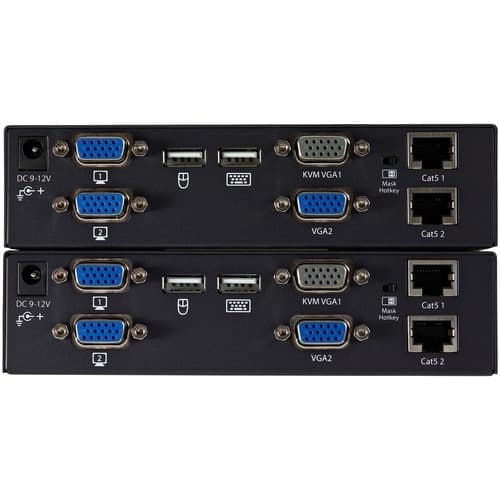

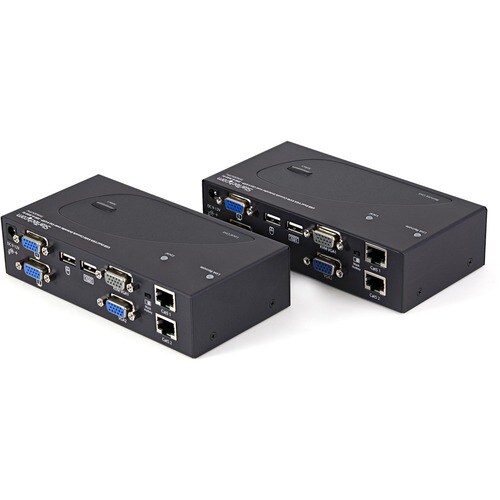

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution. The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Tech Specs

USB DUAL VGA KVM EXTENDER OVER CAT5 UTP - 650FT/200M specifications
USBYes
VGAYes
Brand NameStarTech.com
Form FactorDesktop
Color FamilyBlack
Graphic ModeWUXGA
ManufacturerStarTech.com
Product NameUSB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m
Product TypeKVM Console/Extender
Input Voltage240 V AC
Product ColorBlack
TAA CompliantYes
Show all 39 specs
KVM TechnologyAnalog
Receiver Depth6.10"
Receiver Width3.10"
Network (RJ-45)Yes
Receiver Height1.60"
Package Contents<ul> <li>1 x Local Unit </li> <li>1 x Remote Unit</li> <li>2 x 6 ft 2-in-1 USB VGA KVM Cables</li> <li>8 x Rubber Feet</li> <li>1 x Universal Power Adapter (NA/EU/UK/AU) </li> <li>1 x Instruction Manual</li> </ul>
Country of OriginTaiwan
Packaged Quantity1 Kit
Power Consumption5.40 W
Transmitter Depth6.10"
Transmitter Width3.10"
Transmitter Height1.60"
Input Voltage Range110V AC to 240V AC
Number of USB Ports4
Number of VGA Ports8
Connectivity TechnologyWired
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberSV565DUTPU
Maximum Video Resolution1920 x 1200
Maximum Operating Distance650 ft
Manufacturer Website Addresshttp://www.startech.com
Number of Computers Supported2
Receiver Weight (Approximate)1.18 lb
Number of Local Users Supported2
Number of Network (RJ-45) Ports4
Transmitter Weight (Approximate)1.18 lb
