USB 3.1 TYPE C TO DISPLAYPORT ADAPTERM/F
USB 3.1 TYPE C TO DISPLAYPORT ADAPTERM/F
Key Features
- Supports resolutions f up to 4K UHD (3840 x 2160 32-bit color @ 60Hz).
- Portable Design: Bus powered, does not require a power adapter.
- Does not transmit audio signal.
- No drivers required.
- Plug 'n Play with no power input requirement.
- OS Support: Windows 10, 8.1, 8, 7, Linux, Mac OSX.
- One Year Warranty.
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

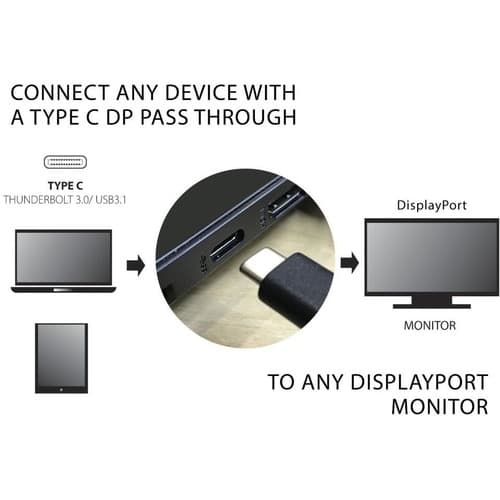

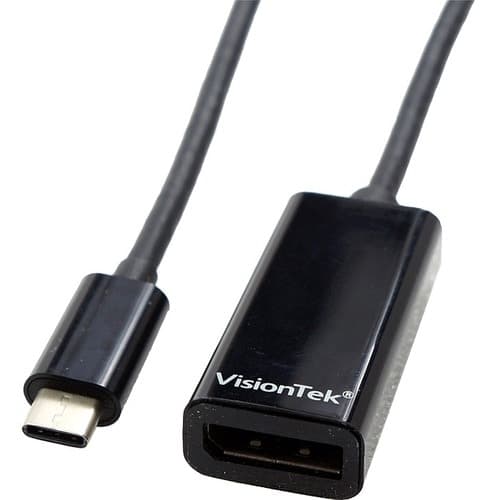

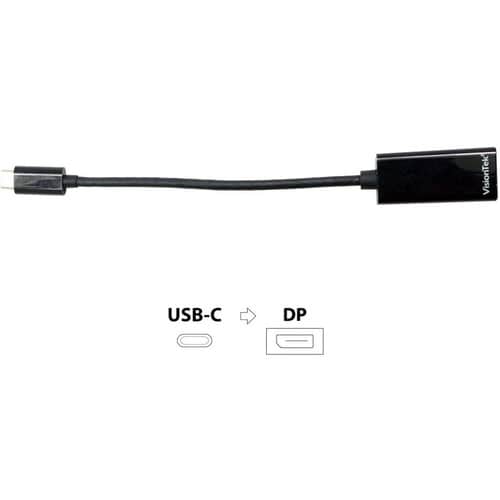

The VisionTek USB 3.1 Type-C to DisplayPort Adapter lets you connect your Mac, PC or laptop with DisplayPort over USB-C port to a DisplayPort monitor, TV or projector. This adapter is also compatible with all systems that have a Thunderbolt 3 port. You can run mirrored or extended desktop display configurations at resolutions up to 4K UHD (3840 x 2160) at 60Hz. Simply connect the adapter to the USB-C port on your Macbook, PC or laptop to your DP display. Plug and play operation - no software drivers to install. Perfect for projectors and TVs that have a DP connection. DisplayPort cable required (not included).
Requires USB-C port which supports "DisplayPort Alternate Mode" (not all USB-C ports/systems support Alternate Mode functionality) or Thunderbolt 3 port. Plug and Play installation on any Windows, Mac, or Linux host which supports DisplayPort Alternate Mode (Alt Mode) video output functionality.
Most current phones and tablets with USB-C ports do not support Alt Mode video output.
Compatible systems include USB-C or Thunderbolt 3 equipped MacBook Pro 2019/2018/2017, MacBook Air 2018, Microsoft Surface, Microsoft Surface Go, Dell, Lenovo or HP laptops.
Key Features
- Supports resolutions f up to 4K UHD (3840 x 2160 32-bit color @ 60Hz).
- Portable Design: Bus powered, does not require a power adapter.
- Does not transmit audio signal.
- No drivers required.
- Plug 'n Play with no power input requirement.
- OS Support: Windows 10, 8.1, 8, 7, Linux, Mac OSX.
- One Year Warranty.
Tech Specs
| Features | Plug and Play |
|---|---|
| Brand Name | VisionTek |
| Adapter Type | DisplayPort/USB-C |
| Manufacturer | VisionTek Products, LLC |
| Product Name | USB-C to DisplayPort Active Adapter(M/F) |
| Product Type | A/V Adapter |
| Country of Origin | China |
| Weight (Approximate) | 7.20 oz |
| Manufacturer Part Number | 900817 |
| Connector Type on First End | USB 3.1 Type C - Male |
| Connector Type on Second End | DisplayPort Digital Audio/Video - Female |
| Manufacturer Website Address | http://www.visiontek.com |
Show all 14 specsShow fewer
| Connector on First End Details | USB 3.1 Type C Male |
|---|---|
| Connector on Second End Details | DisplayPort Digital Audio/Video Female |
