MINUTEMAN POWER

UPS AVR 750VA/675W 2U RACK/TWR AVR 208V PF 0.9 EXT RUNTIME LCD

SKU: 9BK824VPN: EXR1500RTHV

UPS AVR 750VA/675W 2U RACK/TWR AVR 208V PF 0.9 EXT RUNTIME LCD

UPS AVR 750VA/675W 2U RACK/TWR AVR 208V PF 0.9 EXT RUNTIME... Key Features

  • Works adequately in situations where the supply is prone to sags and surges
  • Up to 2.50 minute runtime on full load to preserve critical data from power shortage interruptions
  • 1350 W load capacity - backup power for your valuable electronics
  • 1500 VA load capacity provides sufficient backup during power failures
  • NEMA 6-15P plug/connector type for convenient usage with added dependability
  • NEMA 5-15R receptacle type provides secure, reliable connection with added productivity
  • Single Phase phase for better usability and increased efficiency
  • Line-interactive UPS with network application/usage to ensure maximum productivity with added feasibility
  • 120 V AC input voltage for maximum feasibility and added productivity
  • 120 V AC output voltage for optimal performance with maximum feasibility
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

UPS AVR 750VA/675W 2U RACK/TWR AVR 208V PF 0.9 EXT RUNTIME... Overview

The EXR Series offers users a robust and advanced line interactive UPS offering. New features include a higher power factor for improved UPS efficiency, auto-recognition of external battery packs for a smarter extended run-time solution, tool-less battery connection and replacement and so much more!

The EXR Series UPSs offer complete protection from all electrical problems, including spikes, surges, sags, brownouts, and blackouts, in a versatile rack/tower convertible format. True sine wave electrical output ensures the best power for sensitive electronic equipment.

EXR® Key Features

Key Features Include:

  • 0.9 power factor - increased capacity without migrating to larger models
  • NEW Alphanumeric LCD Dot Matrix display - easy access to key UPS statuses
  • UPS configuration options via front panel - make key adjustments utilizing the front panel LCD
  • Load shedding - two power banks allow equipment prioritizing for increased runtime
  • Independent Battery Bypass™ - provides voltage regulation with surge and spike protection even when batteries are weak or dead.
  • Auto-recognition of external battery packs - automatically recalculate runtimes
  • Unlimited runtime capability with external battery packs - extended runtime solution to meet any backup power demand
  • Flexible installation - rack or tower configurable; wall mount kits available
  • Simultaneous USB, RS232, and SNMP communications
  • Minuteman® SentryHD™ - UPS monitoring and control software included
  • Industry-leading product warranty - featuring a 3-year non-prorated warranty (including batteries)
  • Dedicated remote Emergency Power Off (EPO) port
  • 120V & 208V - 208V models available (1500 & 3000VA models)
  • cULus certification - NOM certification (Mexico)
  • RoHS 2 compliant
  • Energy Star 2.0 certification

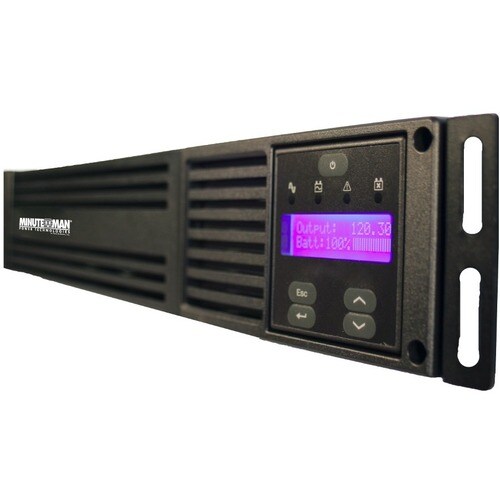

Front LCD Panel

The NEW Alphanumeric LCD Dot-Matrix EXR Series Display
Provides more detailed information about the UPS status than the previous LCD display, including:

  • Input and Output Voltage
  • Estimated runtime
  • UPS Operating Mode
  • UPS Self-test results
  • Battery Condition
  • Display model and serial number
  • View load bank status and capacities
  • Display battery module part number
  • Replace Error Codes with descriptions

The LCD panel is designed so that it can be oriented vertically or horizontally depending on the installation orientation of the UPS.

UPS AVR 750VA/675W 2U RACK/TWR AVR 208V PF 0.9 EXT RUNTIME... Tech Specs

UPS AVR 750VA/675W 2U RACK/TWR AVR 208V PF 0.9 EXT RUNTIME LCD specifications
PhaseSingle Phase
Width19"
Height3.5"
EPO PortYes
Brand NameMinuteman
Energy StarYes
Form FactorTower/Rack/Wall Mountable
Serial PortYes
ManufacturerPara Systems, Inc
Product NameEXR Series Line Interactive Uninterruptible Power Supply
Product TypeLine-interactive UPS
Hot SwappableYes
Show all 44 specs
Input Voltage120 V AC
Product ModelEXR1500RTHV
Waveform TypeTrue Sine Wave
Output Voltage208 V AC
Product FamilyEXR
Product SeriesEXR
Input Frequency60 Hz
Network (RJ-45)Yes
Receptacle TypeNEMA 6-15R
Application/UsageMission Critical Equipment
Country of OriginChina
Receptacle Detail8 x NEMA 5-15R
Software IncludedMinuteman SentryHD
Status Indicators<p><b>Front LCD Panel</b><b>:</b></p> <ul> <li>Input and Output Voltage</li> <li>Estimated runtime</li> <li>UPS Operating Mode</li> <li>UPS Self-test results</li> <li>Battery Condition</li> <li>Display model and serial number</li> <li>View load bank status and capacities</li> <li>Display battery module part number</li> <li>Replace Error Codes with descriptions</li> </ul>
Load Capacity (VA)1500 VA
Network ManagementSNMP
Dataline ProtectionRJ-45
Input Voltage Range80 V AC - 164 V AC
Plug/Connector TypeNEMA 6-15P
Surge Energy Rating1000 J
Load Capacity (Watt)1350 W
Weight (Approximate)43 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2
Environmentally FriendlyYes
Manufacturer Part NumberEXR1500RTHV
USB (HID Compliant) PortYes
Backup/Run Time (Full Load)2.50 Minute
Backup/Run Time (Half Load)9 Minute
Maximum Operating Elevation9842.52 ft
Manufacturer Website Addresshttp://www.minutemanups.com
Maximum Operating Temperature104°F (40°C)
Energy Efficiency CertificationENERGY STAR 2.0
