UNIFI 16PORT GIGABIT SWITCH POE SFP

SKU: 7AY305VPN: USW-16-POE

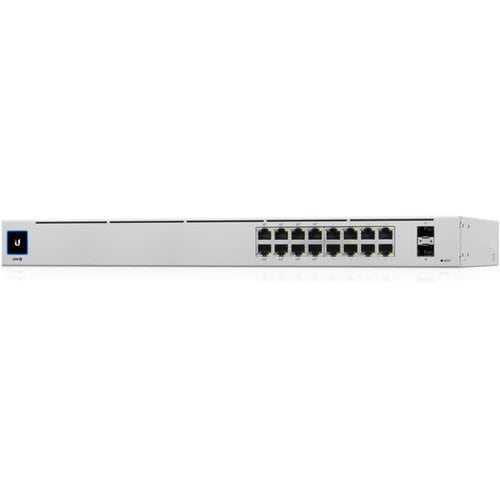

UNIFI 16PORT GIGABIT SWITCH POE SFP

Key Features

  • Effectively reduces downtime with improved network performance
  • Features 16 networking ports to easily establish a local network or expand your existing one
  • Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
  • Rack mounting enables you to organize wires & secure cables for professional installation
  • Management capability provides control over setup and configuration of your network
  • Gigabit Ethernet port for ultra-fast network speeds
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Ubiquiti USW-16-POE Ethernet Switch - 16 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - 2 SFP Slots - 60 W Power Consumption - 42 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable

Tech Specs

UNIFI 16PORT GIGABIT SWITCH POE SFP specifications
Depth7.9"
Width17.4"
Height1.7"
FeaturesReset Button
Frequency60 Hz
Brand NameUbiquiti
ManageableYes
PoE Budget42 W
Form FactorRack-mountable
ManufacturerUbiquiti Inc.
Power SourceAC/DC
Product NameUSW-16-POE Ethernet Switch
Show all 38 specs
Product TypeEthernet Switch
Input Voltage120 V AC
Product ModelUSW-16-POE
Layer Supported2
Network (RJ-45)Yes
PoE (RJ-45) PortYes
Product MaterialSGCC Steel
Application/UsageWireless Access Point
Power Consumption60 W
Network Technology1000Base-X
Ethernet TechnologyGigabit Ethernet
Expansion Slot TypeSFP
Number of SFP Slots2
Compatible Rack Unit1U
Media Type SupportedTwisted Pair
Networking StandardsIEEE 802.1x
Weight (Approximate)6.17 lb
Additional Information<ul> <li>Switching Capacity: 36 Gbps</li> <li>Total Non-Blocking Throughput: 18 Gbps</li> <li>Forwarding Rate: 27 Mpps</li> <li>Supported VLANs: 1,000</li> <li>MAC Address Table Size: 8,000</li> <li>Packet Buffer Size: 0.5 MB</li> <li>Management: Ethernet, AR</li> <li>Heat Dissipation: 61.4 BTU/hr</li> <li>Supported Rack Depth: 400~1200 mm (15.7-47.2")</li> <li>LCM Display: 1.3" touchscreen</li> <li>ESD Protection: Air: ± 16kV, contact: ± 12kV</li> <li>Ambient Operating Temperature: -5 to 40° C (23 to 104° F)</li> <li>Ambient Operating Humidity: 10 to 90% noncondensing</li> <li>NDAA Compliant: Yes</li> <li>LACP Port Aggregation: Yes</li> <li>STP & RSTP: Yes</li> <li>Advanced IGMP Configuration (Querier, Fast Leave, Router Port): Yes</li> <li>MAC-Based ACLs & Device Isolation: Yes</li> <li>DHCP Snooping & Guarding: Yes</li> <li>Egress Rate Limit: Yes</li> <li>Storm Control: Yes</li> <li>Multicast & Broadcast Rate Limiting: Yes</li> <li>MAC Address Blocking: Yes</li> <li>IP-Based ACLs & Network Isolation: Yes</li> <li>MAC-Based Port Restriction: Yes</li> <li>Port Isolation: Yes</li> <li>Jumbo Frames: Yes</li> <li>LLDP-MED: Yes</li> <li>Voice VLAN: Yes</li> <li>Virtual Network Override: Yes</li> </ul>
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Manufacturer Part NumberUSW-16-POE
Certifications & Standards<ul><li>CE</li><li>FCC</li><li>IC</li><li>Anatel: 00593-21-08356</li></ul>
Maximum Data Transfer Rate128 MB/s
Port/Expansion Slot Details2 x Gigabit Ethernet Expansion Slot
Manufacturer Website Addresshttp://www.ui.com
Total Number of Network Ports16
Total Number of Expansion Slots2
