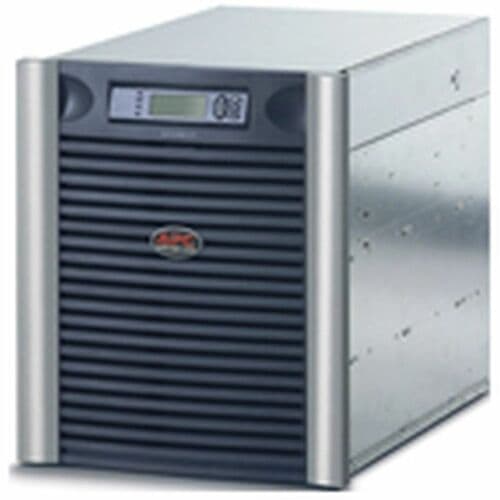

SYMMETRA LX 8KVA SCALABLE 8KVA N+1 RACK-MOUNT 220/230/240V

SKU: 9CB137VPN: SYA8K8RMI

In Stock

$26,095.00$17,099.44

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

APC UPS
Tower
Symmetra LX
8kVA

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.

Tech Specs

SYMMETRA LX 8KVA SCALABLE 8KVA N+1 RACK-MOUNT 220/230/240V specifications
Depth	27.1"
Phase	Single Phase/Three Phase
Width	18.6"
Height	22.5"
Brand Name	APC by Schneider Electric
Form Factor	Rack-mountable
Rack Height	13U
Color Family	Dual Color
Manufacturer	Schneider Electric SA
Product Line	Symmetra
Product Name	Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mountable UPS
Product Type	Online UPS

Show all 57 specs

Bypass Switch	Manual
Input Current	36 A
Input Voltage	220 V AC
Modular Slots	1 x SmartSlot
Product Color	Silver
Waveform Type	Sine Wave
Output Voltage	220 V AC
Product Family	Symmetra LX
Product Series	LX
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Input Frequency	65 Hz
Receptacle Type	IEC 60320 C13
Output Frequency	60 Hz
Package Contents	<li>Symmetra LX 8kVA Scalable to 8kVA N+1 Rack-mountable UPS </li><li>CD with software</li><li>Documentation CD</li><li>Installation guide</li><li>User manual</li><li>Web/SNMP management card</li>
Battery Chemistry	Lead Acid
Mounting Location	Front
Receptacle Detail	6 x IEC 60320 C19
For Country/Region	United States
Load Capacity (VA)	8000 VA
Network Management	SNMP Manageable
REACH free of SVHC	No
Emergency Power OFF	Yes
Mounting Preference	Lower
Overload Protection	Yes
Plug/Connector Type	Hard Wire 3-wire
Thermal Dissipation	809.46 W
Weight (Approximate)	392.82 lb
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SYA8K8RMI_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Additional Information	<ul><li>Automatic restart of loads after UPS shutdown</li><li>InfraStruXure Manager Compatible</li><li>Plug-and-Play external batteries</li><li>Audible and visible alarms prioritized by severity</li><li>Configurable for 220, 230 or 240 nominal output voltage</li></ul>
Battery Characteristics	Spill-proof/Maintenance-free
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=SYA8K8RMI_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	SYA8K8RMI
Product Take Back Program	Yes
Certifications & Standards	C-tick\|CE\|GOST\|VDE
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SYA8K8RMI_ROHS_DECLARATION&p_FileName=SYA8K8RMIKIT_ROHS_DECLARATION_US.pdf
Backup/Run Time (Full Load)	7.50 Minute
Backup/Run Time (Half Load)	20.20 Minute
Manufacturer Website Address	http://www.schneider-electric.com
Maximum Operating Temperature	104°F (40°C)
Typical Battery Recharge Time	3 Hour
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712017_V1
Number of Battery & Surge Outlets	15
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712017_V1
