SWINGOUT MOUNT 37-63IN FLAT PANEL

SKU: GC5569VPN: AM175

In Stock

$569.85$304.72

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Makes it quick, convenient, and simple to adjust and reposition connectors in a secure mounting system
Sustains a maximum load capacity of 175 lb

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Swing-out mount for flat-panel displays up to 175 lb.

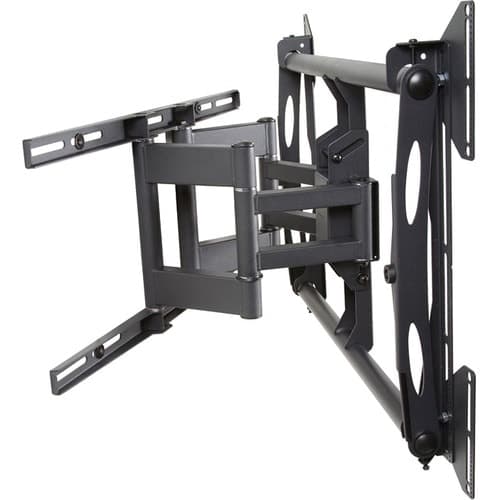

The AM175 is a swingout mount for flat-panel displays up to 175 lb./79.5 kg. With versatility at the core of its design, it features 10° of continuous tilt and 45° of swivel that allow for dynamic viewing at a variety of angles. If you need an extension from the wall, the AM175 has a scissor-style construction that can bring the display 16 inches from the wall.

Engineered with safety as a top priority, the patented Griplates™ (US Patent number 8,035,757 B2) support the flat-panel and hold the display tight on its mounting brackets. In addition, capture screws secure displays to the wall plate. Another great feature that Premier Mounts built into the AM175 is the ability to level the mount post-installation. Fine-tune adjustment knobs help to get the display level either after installation or on maintenance calls.

Tech Specs

SWINGOUT MOUNT 37-63IN FLAT PANEL specifications
Depth	15.99"
Brand Name	Premier Mounts
Manufacturer	Premier Mounts
Product Name	AM175 Swingout Mount
Product Type	Mounting Arm
Compatibility	<p>Daewoo 37" - 63" L710 Flat Panel Display</p>
Product Color	Black
Product Model	AM175
Package Contents	<ul><li>Adapters Reach Extra Wide Mounting Patterns</li><li>4 x 5/16" Flat Washers</li><li>Adapter Plates and Hardware</li><li>4 x Adapter Plates</li><li>4 x M8 Nylon Nuts</li><li>1 x Swingout Arm</li><li>2 x Universal Mounting Brackets</li><li>6 x 5/16" Flat Washers</li><li>8 x Griplate</li><li>6 x 5/16" x 3" Lag Bolts</li><li>1 x Thread Depth Indicator</li><li>1 x Level</li><li>8 x (M4 x 16mm) Screws</li><li>4 x (M4 x 25mm) Screws</li><li>6 x (M5 x 12mm) Screws</li><li>6 x (M5 x 16mm) Screws</li><li>4 x (M5 x 25mm) Screws</li><li>6 x (M5 x 20mm) Screws</li><li>4 x (M5 x 50mm) Screws</li><li>8 x (M6 x 12mm) Screws</li><li>6 x (M6 x 20mm) Screws</li><li>6 x (M6 x 30mm) Screws</li><li>6 x (M8 x 20mm) Screws</li><li>6 x (M8 x 25mm) Screws</li><li>6 x (M8 x 30mm) Screws</li><li>4 x (M8 x 35mm) Screws</li><li>4 x (M8 x 70mm) Screws</li><li>6 x ¼" Nylon Spacer (Large)</li><li>12 x ½" Nylon Spacer (Large)</li><li>6 x 1" Nylon Spacer</li><li>6 x ¼" Nylon Spacer (Small)</li><li>6 x 9/16" Nylon Spacer</li><li>4 x Nylon Sleeve</li><li>6 x 5/16" Flat Washer (Metal)</li></ul>
Country of Origin	Taiwan
Maximum Load Capacity	175 lb
Additional Information	<ul><li>Scissor-style mount extends straight from wall</li><li>Extends from 3.5"-16"</li><li>Lightweight tubular design makes installation easy</li><li>Features patented Griplate System</li><li>Combine with INW-AM325 In-wall box for a "zero profile" installation</li><li>Pivot: +/-45°</li><li>Mounting Pattern: 200mm x 200mm (Min) - 700mm x 500mm (Max)</li></ul>
