STARTECH.COM

STEREO USB SOUND CARD EXTERNAL SPDIF AUDIO EXTERNAL SOUND CARD

SKU: RZ4403VPN: ICUSBAUDIO2D

STEREO USB SOUND CARD EXTERNAL SPDIF AUDIO EXTERNAL SOUND CARD

Key Features

  • 96KHz / 24-bit Hi-Fi USB Audio
  • S/PDIF digital output with AC3 (Dolby Digital) and DTS pass-through support
  • 5.1 Surround Sound supported (Windows only)
  • 3.5mm headphone/microphone ports
  • 4 position TRRS headset with Mic supported
  • Hardware volume knob and Bass/Treble boost EQ switch
  • LED sample rate indicators

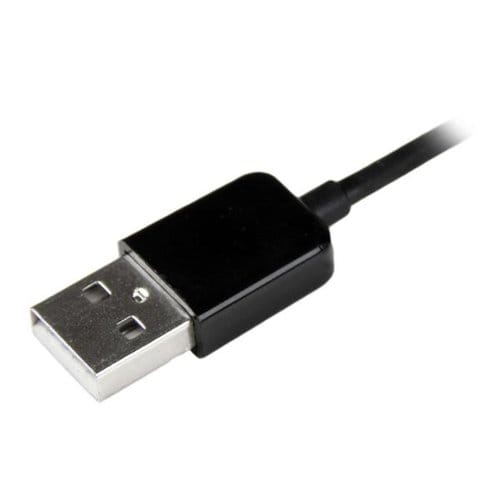

  • 16in attached USB cable
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

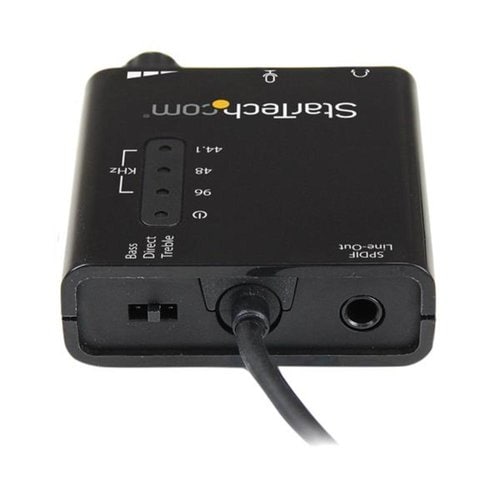

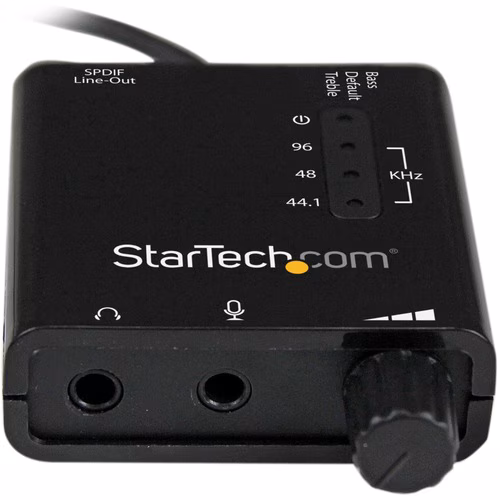

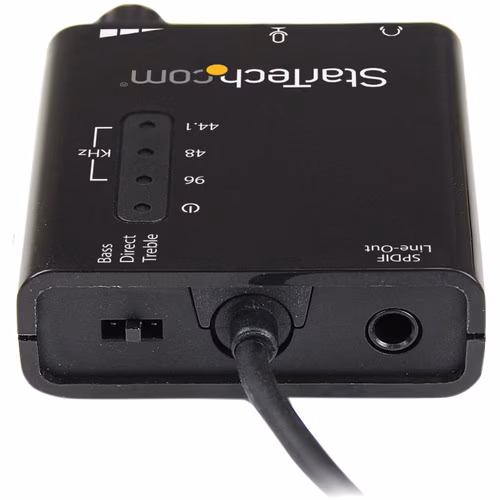

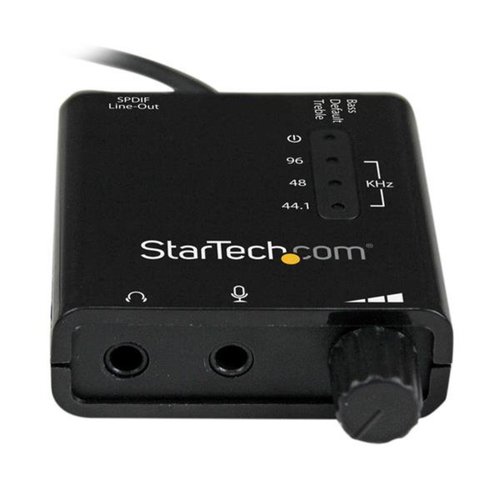

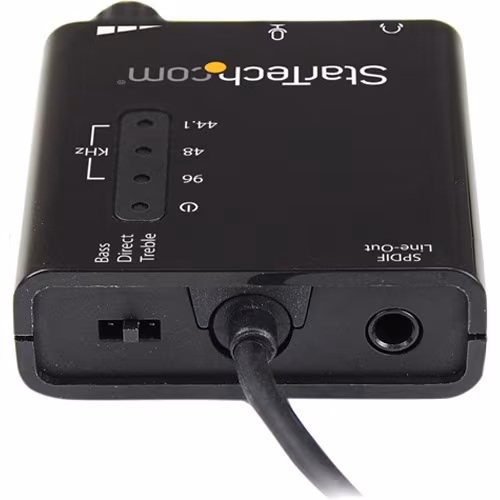

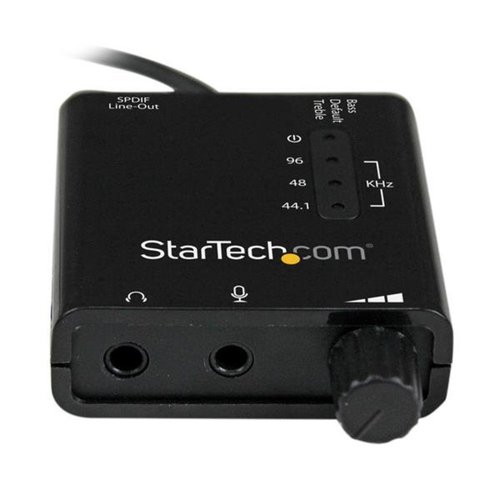

The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an internal sound card without having to open the computer case. For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for both playback and recording, and a 3.5mm S/PDIF port with support for Dolby® Digital 5.1 surround sound (AC3) and DTS® pass-through (Note: 5.1 surround sound is supported in Windows® only). This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone. Also a convenient external volume control for quick adjustments, a hardware EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate. Please note that the microphone input is stereo only. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

STEREO USB SOUND CARD EXTERNAL SPDIF AUDIO EXTERNAL SOUND CARD specifications
Width1.8"
Height0.6"
Thickness1.9"
Brand NameStarTech.com
Form FactorExternal
Color FamilyBlack
ManufacturerStarTech.com
Product NameUSB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio
Product TypeExternal Sound Box
Product ColorBlack
DAC Data Width24 bit
Host InterfaceUSB 2.0
Show all 28 specs
Sound Channels5.1
Package Contents<ul><li>USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio</li><li>1 x Software CD</li><li>1 x Instruction Manual</li></ul>
Country of OriginChina
Packaged Quantity1 Each
Platform SupportedMac
System Requirements<p><b>Operating System(s):</b></p><ul><li>Windows XP (32/64 bit)</li><li>Windows Vista (32/64 bit)</li><li>Windows 7 (32/64 bit)</li><li>Windows 8 (32/64 bit)</li><li>Windows Server 2008 R2</li><li>Windows Server 2003(32/64)</li><li>Mac OS 10.x (Tested up to 10.8)</li><li>Linux</li></ul>
Weight (Approximate)1.16 oz
Audio Processor ModelVT1630A
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberICUSBAUDIO2D
Environmental CertificationEU RoHS
Signal to Noise Ratio (SNR)91 dB
Audio Processor ManufacturerVIA
Manufacturer Website Addresshttp://www.startech.com
Maximum Playback Sampling Frequency96 kHz
