SMART-UPS LI-ION SHORT DEPTH 750VA 120V WITH SMARTCONNECT

SKU: 6HY054VPN: SMTL750RM2UC

SMART-UPS LI-ION SHORT DEPTH 750VA 120V WITH SMARTCONNECT

Key Features

  • Uninterruptible Power Supply
  • Battery backup
  • Rackmount UPS
  • Remote monitoring ups
  • Short depth UPS
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

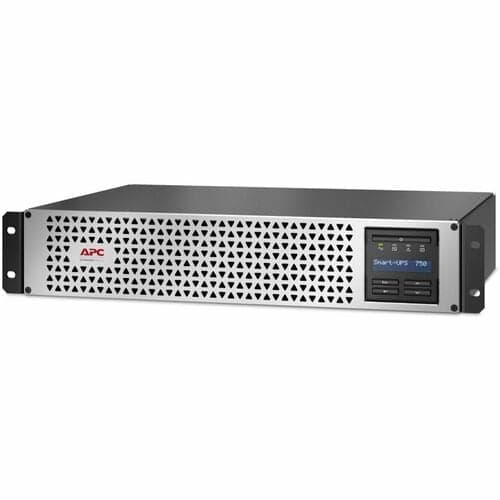

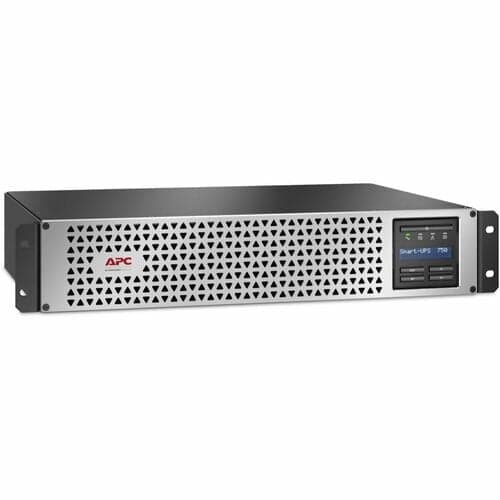

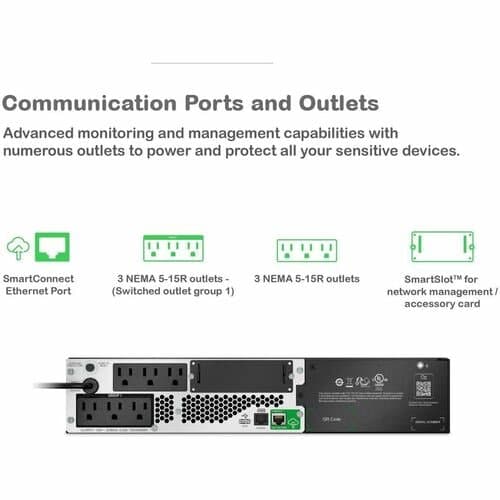

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Tech Specs

SMART-UPS LI-ION SHORT DEPTH 750VA 120V WITH SMARTCONNECT specifications
AVRYes
AlarmConfigurable Delay
Depth12.5"
PhaseSingle Phase
Width17.2"
Height3.4"
Brand NameAPC by Schneider Electric
Cord Length8 ft
Form FactorRack-mountable
Rack Height2U
Serial PortYes
Color FamilyDual Color
Show all 70 specs
ManufacturerSchneider Electric SA
Product LineSmart-UPS
Product NameSmart-UPS SMTL750RM2UC Rack-mountable 750VA UPS
Product TypeLine-interactive UPS
Hot SwappableYes
Input Voltage120 V AC
Product ColorBlack
Product ModelSMTL750RM2UC
Transfer Time10 ms
Waveform TypeSine Wave
Output Voltage120 V AC
Product FamilySmart-UPS
WEEE StatementThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Input Frequency60 Hz
Network (RJ-45)Yes
Receptacle TypeNEMA 5-15P
Output Frequency60 Hz
Package Contents<li>Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS </li><li>CD with software</li><li>Documentation CD</li><li>Installation guide</li><li>Rack mounting support rails</li><li>Smart UPS signalling RS-232 cable</li><li>USB cable</li>
Application/UsageSwitch
Battery ChemistryLithium Ion (Li-Ion)
Country of OriginPhilippines
Packaged Quantity1 Each
Receptacle Detail6 x NEMA 5-15R
Software IncludedPowerchute Serial Edition
Status Indicators<p>LED status indicators:<b> </b>Quickly understand unit and power status with visual indicators.</p> <p><b></b></p>
For Country/RegionUnited States
Load Capacity (VA)750 VA
REACH free of SVHCNo
Input Voltage Range82 V AC - 144 V AC
Mounting PreferenceLower
Overload ProtectionYes
Plug/Connector TypeNEMA 5-15P
Replaceable BatteryYes
Surge Energy Rating680 J
Thermal Dissipation20.51 W
Load Capacity (Watt)600 W
Weight (Approximate)34 lb
REACH Declaration URLhttps://download.schneider-electric.com/files?p_Doc_Ref=SMTL750RM2UC_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URLhttps://download.schneider-electric.com/files?p_Doc_Ref=SMTL750RM2UC_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberSMTL750RM2UC
USB (HID Compliant) PortYes
Maximum Storage Elevation25000 ft
Product Take Back ProgramYes
Certifications & StandardsNOM
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL750RM2UC_ROHS_DECLARATION&p_FileName=SMTL750RM2UCKIT_ROHS_DECLARATION_US.pdf

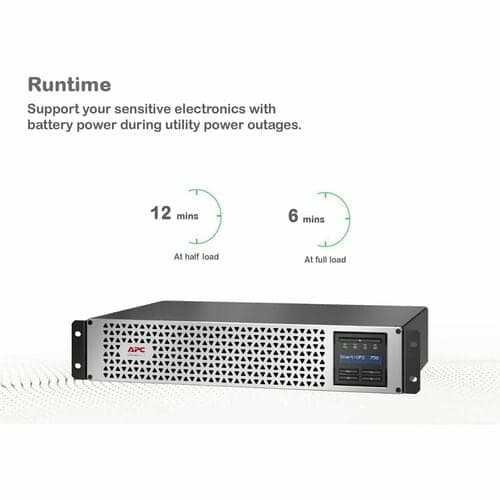

Backup/Run Time (Full Load)5.70 Minute
Backup/Run Time (Half Load)13.80 Minute
Maximum Operating Elevation10000 ft
Optimized Energy EfficiencyYes
Sound Emission (A-Weighted)41 dB(A)
Manufacturer Website Addresshttp://www.schneider-electric.com
Maximum Operating Temperature104°F (40°C)
Typical Battery Recharge Time3 Hour
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
Number of Battery & Surge Outlets6
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001EN
