HP INC. - SB WORKSTATIONS

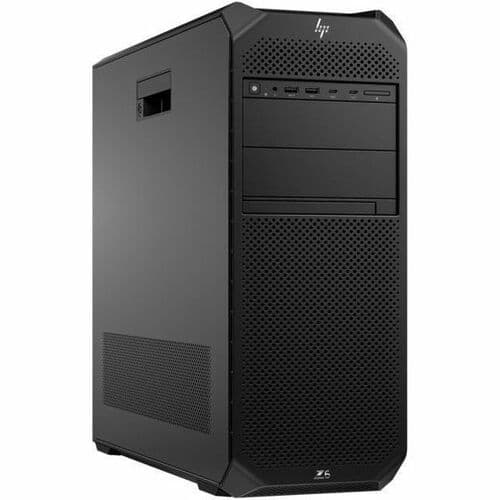

SMART BUY Z6 G5T W53535X 16GB/512 NVD RTX 4000 W11 PRO 64

SKU: SM1904VPN: BG9A2UT#ABA

SMART BUY Z6 G5T W53535X 16GB/512 NVD RTX 4000 W11 PRO 64

Key Features

  • Remarkable performance. Extraordinary expandability.
  • Engineered to stay cool and quiet.
  • Ignite AI innovation
  • Designed with the planet in mind.
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Accelerate AI and graphics-heavy projects on the Z6 AI workstation—from data visualization and machine learning to real-time ray tracing and advanced VFX—with powerful single socket technology, up to 3 high-end GPUs, and plenty of room to expand.

Tech Specs

SMART BUY Z6 G5T W53535X 16GB/512 NVD RTX 4000 W11 PRO 64 specifications
Depth18.3"
Width6.7"
Height17.5"
ChipsetIntel W790
Frequency50 Hz
AI-poweredYes
Brand NameHP
Drive TypeSSD
Cooler TypeAir Cooler
DisplayPortYes
Energy StarYes
Form FactorTower
Show all 72 specs
RAID Levels0, 1, 5, 10
Color FamilyBlack
ManufacturerHP Inc.
Product NameZ6 G5 Tower Workstation Wolf Pro Security Edition
Product TypeWorkstation
Chipset ModelW790
Input Voltage120 V AC
Product ColorBlack
TCO CertifiedYes
Error CheckingNon-ECC
Maximum Memory1 TB
Optional Ports<p><strong>Details regarding optional ports aggregated from the information available for this product's family/series.</strong></p><ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Serial Port v3</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Dual USB-A 3.2 Gen1</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>USB-C 3.2 Gen2</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>10GbE single port</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>2.5GbE LAN single port</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>1 GbE single port</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>1GbE Fiber single port LC</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>WiFi6 + BT5.2 WLAN w/ INTAnt</li></ul>
Processor CoreIcosa-core (20 Core)
Processor TypeXeon
Product FamilyZ6 G5
Product SeriesZ6 G5
RAID SupportedYes
Controller TypeSerial ATA/600
Processor Modelw5-3535X
Processor Speed2.90 GHz
Standard Memory16 GB
Operating SystemWindows 11 Pro
Package Contents<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Z6 G5 Tower Workstation Wolf Pro Security Edition</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Keyboard</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Mouse</li></ul>
Processor SocketSocket LGA-4677
Memory TechnologyDDR5 SDRAM
Packaged Quantity1
Processor Threads40
Signal ProcessingRegistered
Ethernet TechnologyGigabit Ethernet
Chipset ManufacturerIntel
Memory Configuration1 x 16GB
Weight (Approximate)28.22 lb
Keyboard LocalizationEnglish
Processor ManufacturerIntel
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Graphics Memory Capacity20 GB
Manufacturer Part NumberBG9A2UT#ABA
Maximum Memory Bandwidth360 GB/s
Number Of Ethernet Ports1
Operating System LanguageEnglish
Operating System PlatformWindows
Total Number of USB Ports14
Environmental CertificationElectronic Product Environmental Assessment Tool Gold (EPEAT Gold)
Solid State Drive InterfacePCI Express NVMe 4.0 x4
Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
Manufacturer Website Addresshttp://www.hp.com
Maximum Power Supply Wattage1125 W
Total Number of Memory Slots8
Graphics Memory AccessibilityDedicated
Number of DisplayPort Outputs4
Number of USB 3.1 Gen 1 Ports8
Number of USB 3.2 Gen 1 Ports2
Number of Processors Installed1
Number of Processors Supported1
Additional Warranty InformationHP 1 Year Wolf Pro Security Edition Service. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA8-1150ENW & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123ENUS.pdf
Energy Efficiency CertificationChina Energy Conservation Program (CECP)
Number of Onboard USB 2.0 Ports3
Graphics Controller ManufacturerNVIDIA
Total Solid State Drive Capacity512 GB
