CISCO SMALL BUSINESS 1

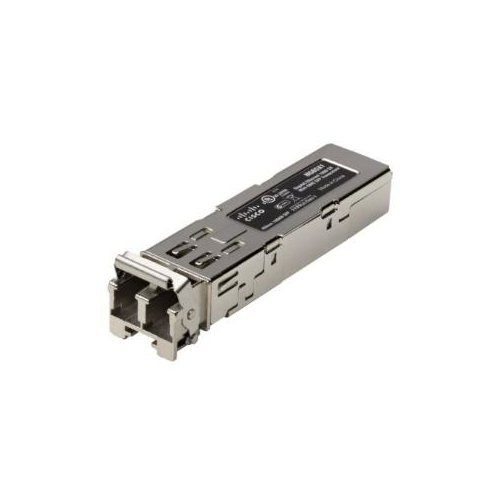

SMALL BUSINESS GBE SX MINI-GBIC SFP TRANSCEIVER LC CONN
SKU: D61718VPN: MGBSX1
SMALL BUSINESS GBE SX MINI-GBIC SFP TRANSCEIVER LC CONN
Key Features
- SFP (mini-GBIC) offers better usage with maximum efficiency and convenience
- Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
- With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
- SFP (mini-GBIC) with data networking application/usage for maximum dependability and convenience
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
This easy-to-install Mini-GBIC (or SFP) module provides a simple way to add Gigabit functionality to your Linksys switch. Gigabit fiber is often used to connect two switches together. The technology used depends on the distance between the two switches.The SX module uses 850 nanometer wavelength light in multimode fiber optic cables, and can achieve distances up to 220 or 550 meters, depending on the fiber used.
Tech Specs
| Brand Name | Cisco |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Product Name | MGBSX1 - Gigabit Ethernet SX Mini-GBIC SFP Transceiver |
| Product Type | SFP (mini-GBIC) |
| Compatibility | <ul><li>SR2024 - 24-Port 10/100/1000 Gigabit Switch</li><li>SR224G - 24-Port 10/100 + 1-Port Gigabit Switch + 1 MiniGBIC</li><li>SRW2016 - 16-Port 10/100/1000 Gigabit Switch with WebView</li><li>SRW2024 - 24-Port 10/100/1000 Gigabit Switch with WebView</li><li>SRW224 - 24-port 10/100 + 2-Port Gigabit Switch with WebView</li></ul> |
| Product Model | MGBSX1 |
| Connector Type | LC |
| Application/Usage | Data Networking |
| Country of Origin | China |
| Fiber Mode Supported | Multi-mode |
| Media Type Supported | Optical Fiber |
| Weight (Approximate) | 0.04 lb |
Show all 18 specsShow fewer
| Total Number of Ports | 1 |
|---|---|
| Additional Information | <ul><li>Transmitter Spec: Power: -9.5 to -4 dBm</li><li>Reciever Spec: Sensitivity: -20 to -17dBm</li><li>Input Power: -20 to -17 dBm</li><li>Stress Sensitivity: 50/125 um: -13.5dBm, 62.5/125 um: -12.5dBm</li><li>Wavelength: 850 nm (850nm TYP., 830-860nm) MMF</li></ul><p><b>Modular Bandwidth for MMF:</b></p><ul><li>62.5/125um MMF at 160 MHz/km, up to 220m</li><li>62.5/125um MMF at 200 MHz/km, up to 275m</li><li>50/125um MMF at 400 MHz/km, up to 500m</li><li>50/125um MMF at 500 MHz/km, up to 550m</li></ul> |
| Interfaces/Ports Details | 1 x LC 1000Base-SX |
| Manufacturer Part Number | MGBSX1 |
| Maximum Distance Supported | 0.55 km |
| Manufacturer Website Address | http://www.cisco.com |
Related Products
More in MEDIAC from CISCO SMALL BUSINESS 1 and similar brands
EATON TRIPP LITE SERIES CONNECTIVIT
CAT6 IN-LINE COUPLER COMPACT STRAIGHT-THROUGH MODULAR F/F TAA
$17.19$6.82
BLACK BOX CORPORATION
DIN RAIL CLIP
$9.29$7.12
AXIOM
SINGLE WALL MOUNT BRACKET FOR MINI MEDIA CONVERTER
$9.00$7.29
More from CISCO SMALL BUSINESS 1
Other products available from this brand
BUSINESS 110 SERIES UNMANAGED SWITCH 16PORT GE CBS110-16T
$192.53$143.95

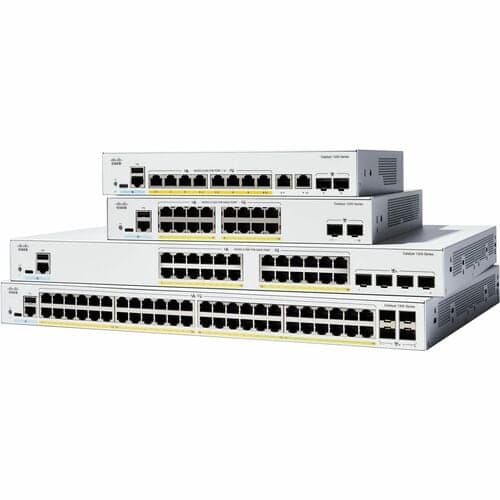

CATALYST 1200 8-PORT GE POE EXT PS 2X1G COMBO
$433.68$325.89
CATALYST 1200 24-PORT GE 4X1G SFP
$472.52$382.44

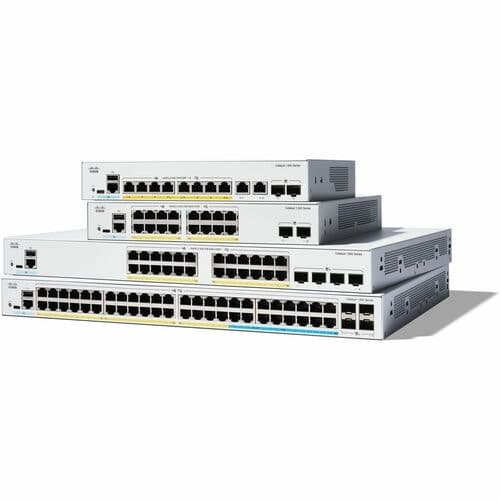

CATALYST 1300 8-PORT GE FULL POE 2X1G COMBO
