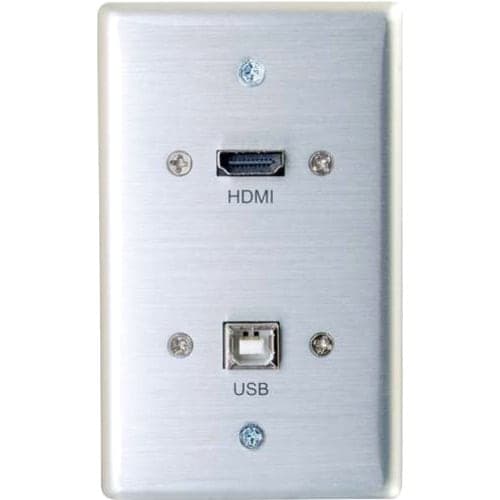

SINGLE GANG USB AND HDMI WALL PLATE AL

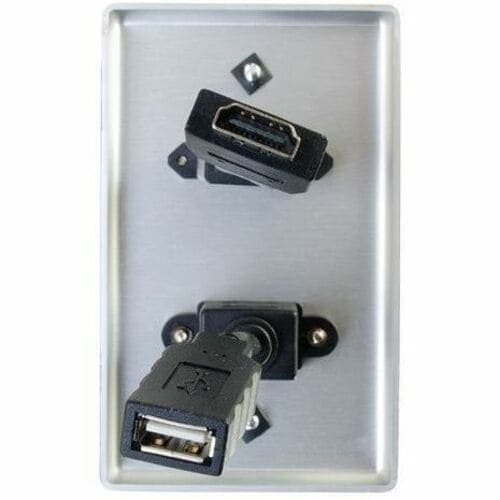

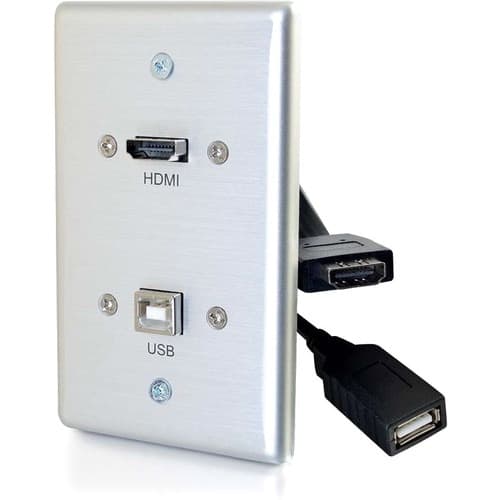

The HDMI and USB Pass Through Single Gang Wall Plate is perfect for the transition to in-wall cabling. This solution offers a clean, professional look and is ideal for classrooms, conference rooms and houses of worship. Convenience The HDMI and USB pass-through ports include thin, flexible pigtails that accommodate the tight bend radius required for installations within a standard junction box. Durability Constructed of high quality aluminum, this wall plate is designed for durability and a long life in commercial environments where constant wear and tear causes damage. Additional Technical Specifications HDMI Electrical Specifications: Voltage Rating: 30V Nominal Capacitance: 58PF/M Conductor Resistance: @ 20°C max, 30AWG: 376.96{OHM]/KM Insulation Resistance: 10M /km @ 20°C DC 500V Attenuation: @ 0.30~825MHz 5dB/3.0M @ 825~2475MHz 12dB/3.0M @ 2475~4125MHz 20dB/3.0M @ 4125~5100MHz 25dB/3.0M USB Electrical Specifications: Voltage Rating: 30V Conductor Resistance: @ 20°C max, 28AWG: 232{OHM]/KM; 24AWG: 93.25/KM Insulation Resistance: 10M /km @ 20°C DC 500V Time Delay: 5.2ns/m (max) Impedance: 90±15% Propagation Delay Skew: 100ps (Full-/High-speed only) Attenuation: (Full-/High-speed only) Differential Impedance: cable@200ps Tr(10-90%) 90±7 Intra-Pair Skew: 15ps/m@200ps Tr(10-90%) Attenuation/Insertion Loss: 1.5dB/2M@0.1GHz 5.0dB/2M@1.25GHz 7.5dB/2M@2.5GHz 25dB/2M@7.5GHz Differential to Common mode(max): 20dB/cable@0.1~7.5GHz Next: 32dB@0.1GHz 32dB@2.5GHz 23dB@3.0GHz 23dB@7.5GHz Physical Specifications: Jacket: Black PVC HDMI Jacket Thickness: 0.51mm HDMI Minimum Bend radius: 30mm USB Jacket Thickness: 0.38mm Min AVG USB Minimum Bend radius: R47mm Approvals: CE and conforms to 2011/65/EU ROHS 2 Conductor (2 Conductors, 5 Pair): Conductor: 30AWG(7/0.10TC)X5PR Insulation: FM-PE, ID: 0.75±0.05mm Color: Brown/White, Red/White, Orange/White, Green/White, Blue/White Drain: 30AWG(7/0.10TC)X5 Shield: AL Foil WrapX5 Braid: (16/5/0.08TC)X5 Conductor (4 Conductors): Conductor: 30AWG(7/0.10TC)X4C Insulation: PP, ID: 0.55±0.05mm Color: Red/Yellow/Orange/White Drain: 30AWG(7/0.10TC) Shield: AL Foil Wrap Conductor (2 Conductors): Conductor: 24AWG(7/0.2TC)X2 Insulation: SR-PVC ID: 0.23±0.05 Color: Red/Black Conductor (2 Conductors, 1 Pair): Conductor: 28AWG(7/0.127TC)X2 Insulation: HD-PE, ID: 0.90±0.05mm(Green/White) Drain: 28AWG(7/0.127TC) Shield 1: AL Foil Wrap Shield 2: Braid(16*5/0.10TC) Wall Plate Material: Brushed Aluminum 5052 Hardness: HRB22 Anodizing
