VERTIV-IT SYSTEMS

SINGLE EXTENDER DP 4K60 USB2.0

SKU: 9HR496VPN: LV5500R-400

SINGLE EXTENDER DP 4K60 USB2.0

Key Features

  • Delivers seamless KVM control and 4k video transmission.
  • Allows for greater distance with the Fiber Option.
  • Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
  • Plug-and-play with no drivers or software to install, and no on-site configuration required.
  • Faster throughput with updated USB.
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

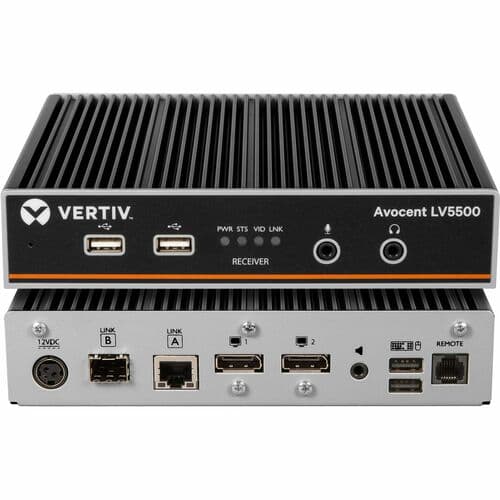

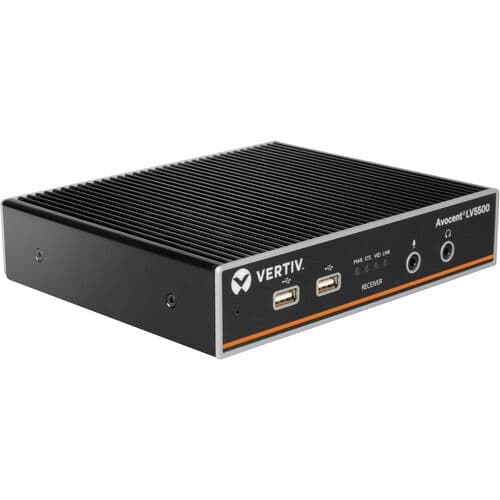

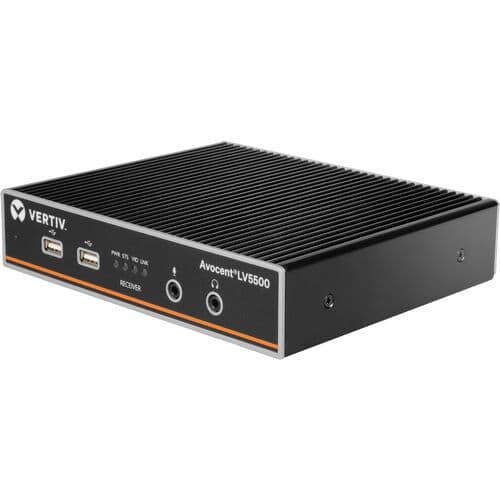

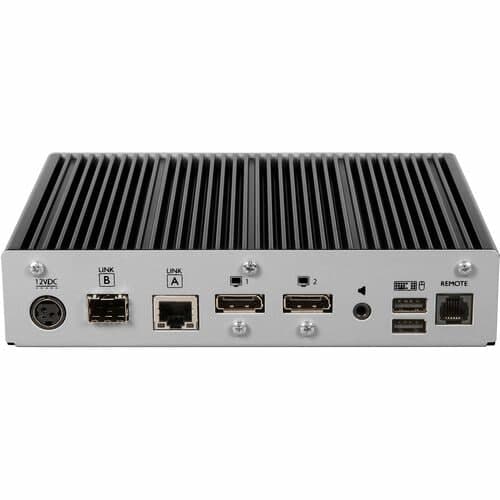

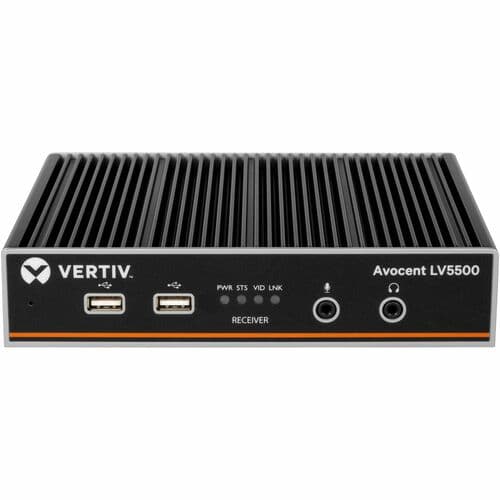

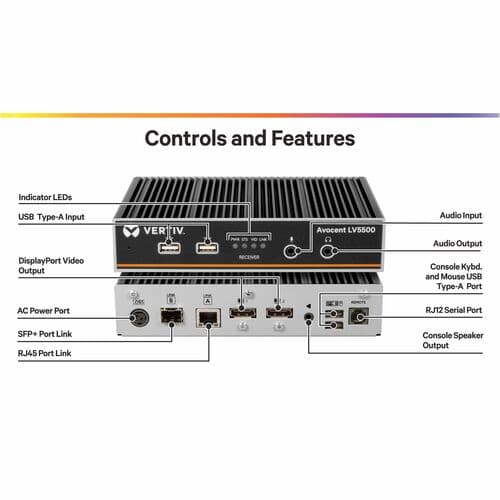

The Vertiv Avocent LongView 5500 Receiver (LV5500R) is the latest in the Avocent high-performance family of products. Coupled with the Avocent LV5500T, the LV5500R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, local port pass through, and HD analog audio, the LV5500R provides an effortless and automatic connection for up to two users, local and remote, over the IP network without the need for extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5500R is ideal for broadcasting, control centers, and other industries requiring high performance, 4K video.

Tech Specs

SINGLE EXTENDER DP 4K60 USB2.0 specifications
DVINo
USBYes
VGANo
HDMINo
HeadphoneYes
PS/2 PortNo
Brand NameVertiv AVOCENT
MicrophoneYes
DMS-59 PortNo
Device TypeHigh Performance KVM
DisplayPortYes
Form FactorRack-mountable
Show all 56 specs
Rack Height1U
Color FamilyBlack
Graphic Mode4K
ManufacturerVertiv
Product LineLongView
Product NameLV5500 High-Performance KVM Extender | Receiver
Product TypeKVM Extender Receiver
Input Voltage230 V AC
Product ColorBlack
Product ModelLV5500R
TAA CompliantYes
KVM TechnologyDigital
Product FamilyLongView 5000
Product Series5000
Receiver Depth5.83"
Receiver Width7.32"
Network (RJ-45)Yes
Receiver Height1.54"
Package Contents<ul> <li>LV5500 High-Performance KVM Extender | Receiver</li> <li>1 x LV5500 Extender Quick Installation Guide</li> <li>1 x Extender RMK Quick Installation Guide</li> <li>1 x Compliance/Safety Sheet (See PLM BOM) 1 each</li> <li>1 x Customer Support/Warranty Card (See PLM BOM)</li> <li>1 x 3.5mm stereo plug to plug audio cable, 3meter </li> <li>1 x USB cable, Type A to Type B, 1.8meter</li> <li>1 x DisplayPort cable, M-M, High Bit-Rate, 2meter </li> <li>1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56 </li> <li>1 x China RoHS Declaration</li> <li>1 x Vertiv document wallet </li> </ul>
Country of OriginUnited Kingdom
Packaged Quantity1
Power Consumption18 W
Number of ST Ports0
Platform SupportedLinux
Digital Audio/VideoYes
Input Voltage Range100-240 VAC
Number of DVI Ports0
Number of USB Ports2
Number of VGA Ports0
Number of HDMI Ports0
Number of PS/2 Ports0
Proprietary InterfaceNo
Connectivity TechnologyWired
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberLV5500R-400
Maximum Video Resolution4096 x 2160
Maximum Operating Distance13123.36 ft
Manufacturer Website Addresshttp://www.vertiv.com/
Number of Computers Supported1
Receiver Weight (Approximate)2.73 lb
Number of Local Users Supported1
Number of Network (RJ-45) Ports1
Number of Remote Users Supported1
