VERTIV-IT SYSTEMS

SINGLE EXTENDER DP 4K60 USB2.0

SKU: 9HR495VPN: LV5500T-400

SINGLE EXTENDER DP 4K60 USB2.0

Key Features

  • Delivers seamless KVM control and 4k video transmission.
  • Allows for greater distance with the Fiber Option.
  • Provides ultra-high-resolution video images for single-monitor and high-res video for dual-head.
  • Plug-and-play with no drivers or software to install, and no on-site configuration required.
  • Faster throughput with updated USB.
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

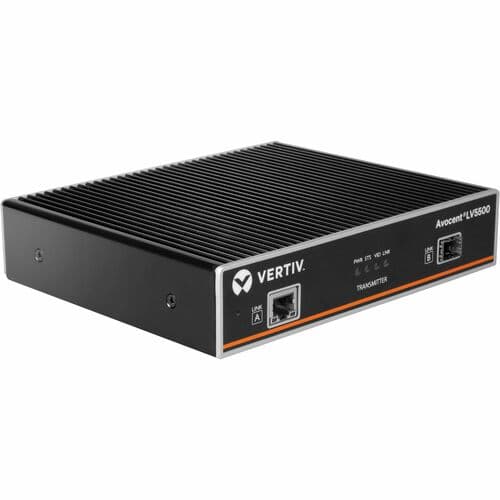

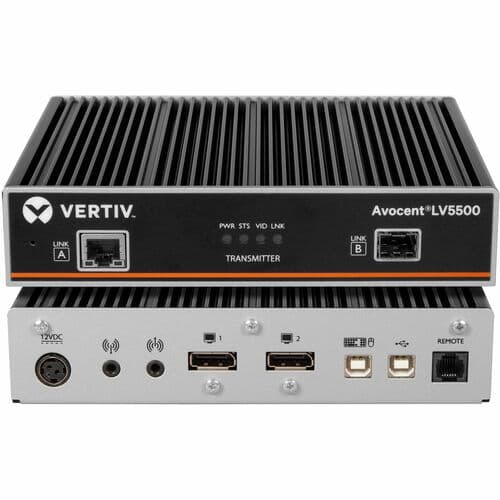

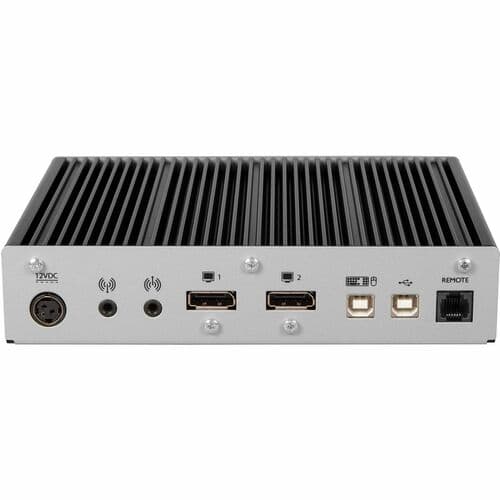

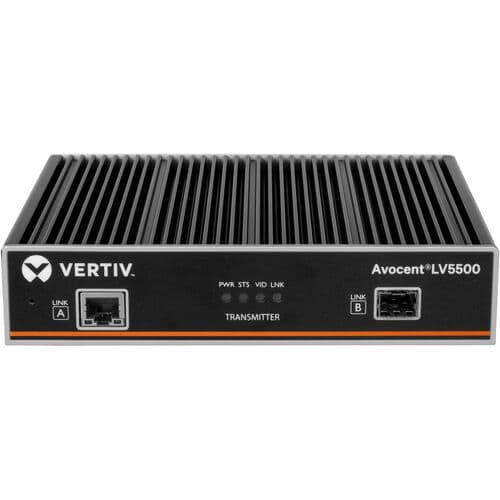

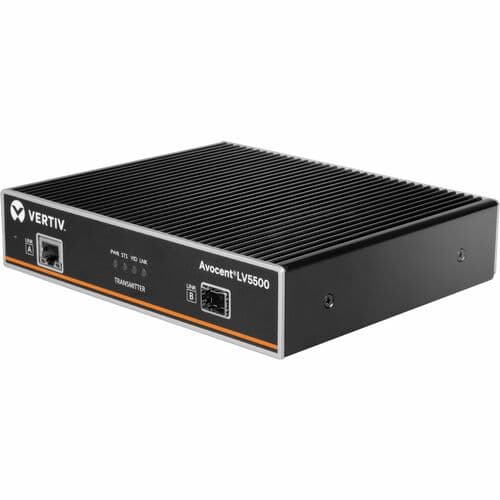

The Vertiv Avocent LongView 5500 Transmitter (LV5500T) is the latest in the Avocent high-performance KVM Extender family of products. The LV5500T comes equipped with a dependable performance along with intelligent EDID management. Coupled with the Avocent LV5500R, the LV5500T is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K @ 60Hz. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. It provides users with real-time access, high resolution clarity, and local console video output. The LV5500T connects either via a copper or fiber link and comes with a LED indicator that shows the quality of the link connection.

Tech Specs

SINGLE EXTENDER DP 4K60 USB2.0 specifications
DVINo
USBYes
VGANo
HDMINo
HeadphoneYes
PS/2 PortNo
Brand NameVertiv AVOCENT
MicrophoneYes
DMS-59 PortNo
Device TypeHigh Performance KVM
DisplayPortYes
Form FactorRack-mountable
Show all 56 specs
Rack Height1U
Color FamilyBlack
Graphic Mode4K
ManufacturerVertiv
Product LineLongView
Product NameLV5500 High-Performance KVM Extender | Transmitter
Product TypeKVM Extender Transmitter
Input Voltage120 V AC
Product ColorBlack
Product ModelLV5500T
TAA CompliantYes
KVM TechnologyDigital
Product FamilyLongView 5000
Product Series5000
Network (RJ-45)Yes

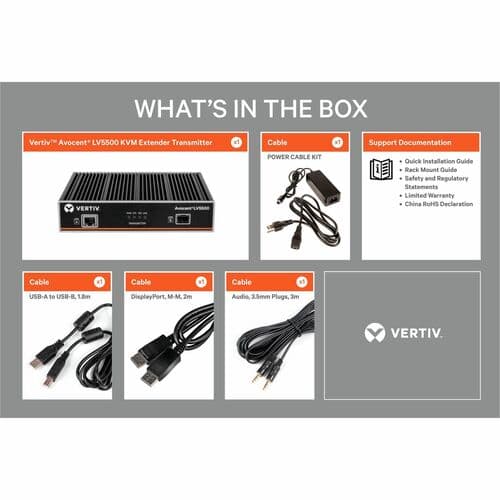

Package Contents<ul> <li>LV5500 High-Performance KVM Extender | Transmitter </li> <li>1 x LV5500 Extender Quick Installation Guide</li> <li>1 x Extender RMK Quick Installation Guide</li> <li>1 x Compliance/Safety Sheet (See PLM BOM) 1 each</li> <li>1 x Customer Support/Warranty Card (See PLM BOM)</li> <li>1 x 3.5mm stereo plug to plug audio cable, 3meter </li> <li>1 x USB cable, Type A to Type B, 1.8meter</li> <li>1 x DisplayPort cable, M-M, High Bit-Rate, 2meter </li> <li>1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56 </li> <li>1 x China RoHS Declaration</li> <li>1 x Vertiv document wallet </li> </ul>
Country of OriginUnited Kingdom
Packaged Quantity1
Power Consumption18 W
Transmitter Depth5.83"
Transmitter Width7.32"
Number of ST Ports0
Platform SupportedUnix
Transmitter Height1.54"
Digital Audio/VideoYes
Input Voltage Range100-240 VAC
Number of DVI Ports0
Number of USB Ports2
Number of VGA Ports0
Number of HDMI Ports0
Number of PS/2 Ports0
Proprietary InterfaceNo
Connectivity TechnologyWired
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberLV5500T-400
Maximum Video Resolution4096 x 2160
Maximum Operating Distance13123.36 ft
Manufacturer Website Addresshttp://www.vertiv.com/
Number of Computers Supported1
Number of Local Users Supported1
Number of Network (RJ-45) Ports1
Number of Remote Users Supported1
Transmitter Weight (Approximate)2.84 lb
