SECURE UPGRADE BUNDLE 3YR APSS FOR TZ580 INCLUDING 1YR CSE

SKU: Z31514VPN: 03-SSC-7462

In Stock

$5,065.00$3,929.60

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

SECURE UPGRADE BUNDLE 3YR APSS FOR TZ580 INCLUDING 1YR CSE Key Features

Supports up to 10/5/2.5/1 G interfaces in a desktop form factor
SD-Branch ready
Secure SD-WAN capability
SonicExpress App onboarding
Zero-Touch Deployment
SonicWall Unified Management support
Centralized,simplifiedmanagementvia Network SecurityManager (NSM)
Power over Ethernet (PoE) support for 4 PoE/PoE+ devices
SonicWall Switch, SonicWave Access Point and Capture Client integration
Built-in and expandable storage

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

SECURE UPGRADE BUNDLE 3YR APSS FOR TZ580 INCLUDING 1YR CSE Overview

Designed for small to mid-sized organizations and distributed enterprise with SD-Branch locations, the TZ 580 Series delivers industry-validated security effectiveness with best-in-class price-performance.

SECURE UPGRADE BUNDLE 3YR APSS FOR TZ580 INCLUDING 1YR CSE Tech Specs

SECURE UPGRADE BUNDLE 3YR APSS FOR TZ580 INCLUDING 1YR CSE specifications
USB	Yes
Depth	5.1"
Width	7.5"
Height	1.4"
Frequency	60 Hz
AI-powered	Yes
Brand Name	SonicWall
Manageable	Yes
Form Factor	Desktop
Manufacturer	SonicWall Inc.
Product Name	TZ580 Network Security/Firewall Appliance
Product Type	Network Security/Firewall Appliance

Show all 39 specs

Functionality	Intrusion Prevention
Product Model	TZ580
IPS Throughput	320 MB/s
Product Family	TZ
Product Series	TZ
VPN Throughput	281.60 MB/s
Application/Usage	Network
Power Consumption	15.60 W
Data Link Protocols	L2TP
Encryption Standard	TLS 1.3
Ethernet Technology	2.5 Gigabit Ethernet
Expansion Slot Type	SFP+
Firewall Throughput	4.50 Gbit/s
Number of SFP+ Slots	2
Weight (Approximate)	2.14 lb
Total Number of Ports	8

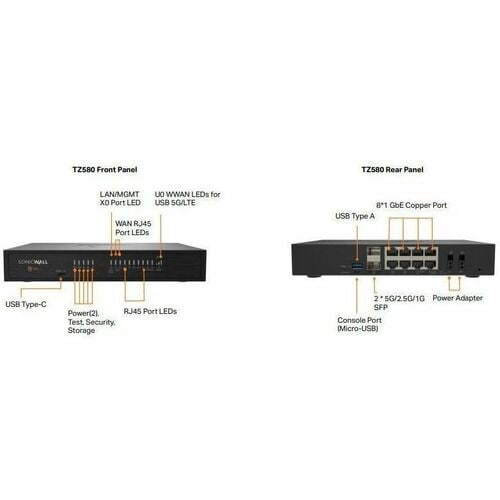

Additional Information	<li>Operating system - SonicOS 8</li> <li>Interfaces - 8x1GbE, 2x 10/5/2.5/1G SFP+, 1 USB (type-C), 1 console (Micro-USB)</li> <li>Storage /(expansion) - (Optional: Up to 512 GB)</li> <li>Centralized Management - Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs</li> <li>Logical VLAN and tunnel interfaces (maximum) - 256</li> <li>SAML Single Sign-On (SSO) Users - 2,500</li> <li>Access points supported (maximum) - 32</li> <li>Firewall inspection throughput - 4.5 Gbps</li> <li>Threat prevention throughput - 2.2 Gbps</li> <li>Application inspection throughput - 2.5 Gbps</li> <li>IPS throughput - 2.5 Gbps</li> <li>Anti-malware inspection throughput - 2.3 Gbps</li> <li>TLS/SSL inspection and decryption throughput - 750 Mbps</li> <li>IPSEC VPN throughput - 2.2 Gbps</li> <li>Connections per second - 20,000</li> <li>Maximum connections (SPI) - 1,400,000</li> <li>Maximum connections (DPI) - 500,000</li> <li>Maximum connections (TLS) - 60,000</li> <li>Site-to-site VPN tunnels - 250</li> <li>IPSec VPN clients (maximum) - 10 (500)</li> <li>SSL-VPN licenses (maximum) - 2 (200)</li> <li>Encryption/authentication - AES (128, 192, 256-bit)/MD5, SHA-256, SHA-384, Suite B Cryptography</li> <li>Key exchange: Diffie Hellman Groups 1, 2, 5, 14v</li> <li>Route-based: VPN RIP, OSPF, BGP</li> <li>Certificate support - Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP</li> <li>VPN features - Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN</li> <li>Global VPN client platforms supported - Microsoft® Windows 7, Windows 8, Windows 8.1 and Windows 10</li> <li>NetExtender - Microsoft® Windows 10, Windows 10/11 and Linux</li> <li>Mobile Connect - Apple® iOS, Mac OS X, Google® Android™ Chrome OS, Windows</li> <li>IP address assignment - Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay</li> <li>NAT modes - 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode</li> <li>Routing protocols - BGP, OSPF, RIPv1/v2, static routes, policy-based routing</li> <li>QoS - Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)</li> <li>Authentication - LDAP (multiple domains), XAUTH/RADIUS,TACACS+, SAML SSO1, Radius accounting NTLM, internal user</li> <li>database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)</li> <li>VoIP - Full H3230v1.5 SIP</li> <li>Standards - TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3</li> <li>Certifications - IPv6</li> <li>High availability - Active/Standby with stateful synchronization</li> <li>Power supply (W) - 60</li> <li>Input power - 100-240 VAC, 50-60Hz</li> <li>Total heat dissipation (BTU) - 56.74</li> <li>WEEE weight (kg) - 1.42</li> <li>MTBF @25oC in years - 30.7</li> <li>Environment (Operating/Storage): 0°C to +40°C / -40°C to +70°C</li> <li>Humidity - 5-95% non-condensing</li>
Connectivity Technology	Wired
Number of VPN Supported	500
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Manufacturer Part Number	03-SSC-7462
Certifications & Standards	<ul><li>FCC Class B</li><li>ICES Class B</li><li>CE (EMC, LVD)</li><li>UL</li><li>cUL</li><li>Mexico DGN Notice by UL</li><li>ANATEL</li><li>SCIP</li><li>RCM</li><li>MIC Terminal</li><li>VCCI Class B</li><li>KCC/MSIP</li><li>BSMI</li><li>MTCTE/TEC</li><li>CB</li></ul>
New Connections Per Second	20000
Manufacturer Website Address	http://www.sonicwall.com
Firewall Protection Supported	SSL Inspection
Number of Network (RJ-45) Ports	8
Total Number of Expansion Slots	2
