SECURE UPGRADE BUNDLE 2YR APSS FOR TZ380W

SKU: Z31197VPN: 03-SSC-7442

Limited Stock

$1,444.72

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Supports up to 10/5/2.5/1 G interfaces in a desktop form factor
SD-Branch ready
Secure SD-WAN capability
SonicExpress App onboarding
Zero-Touch Deployment
SonicWall Unified Management support
Centralized,simplifiedmanagementvia Network SecurityManager (NSM)
Power over Ethernet (PoE) support for 4 PoE/PoE+ devices
SonicWall Switch, SonicWave Access Point and Capture Client integration
Built-in and expandable storage

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Designed for small organizations and lean branches, the TZ 380 Series delivers industry-validated security effectiveness with best-in-class price-performance.

Tech Specs

SECURE UPGRADE BUNDLE 2YR APSS FOR TZ380W specifications
USB	Yes
Depth	5.1"
Width	7.5"
Height	1.4"
Frequency	60 Hz
AI-powered	Yes
Brand Name	SonicWall
Manageable	Yes
Form Factor	Desktop
Manufacturer	SonicWall Inc.
Network Band	Dual Band

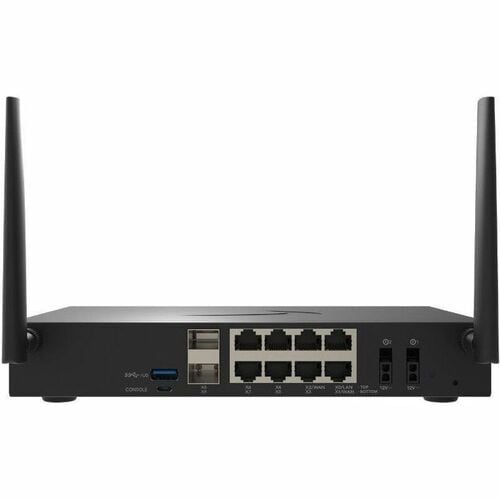

Product Name	TZ380W Network Security/Firewall Appliance

Show all 44 specs

Product Type	Network Security/Firewall Appliance
Wireless LAN	Yes
Functionality	Intrusion Prevention
Product Model	TZ380W
IPS Throughput	256 MB/s
Product Family	TZ
Product Series	TZ
VPN Throughput	204.80 MB/s
Application/Usage	Security
Power Consumption	17.40 W
Data Link Protocols	HTTPS
Encryption Standard	TLS 1.3
Ethernet Technology	5 Gigabit Ethernet
Expansion Slot Type	SFP+
Firewall Throughput	3.50 Gbit/s
Number of SFP+ Slots	2
Support/Service Type	SECURE UPGRADE PLUS ADVANCED EDITION
Weight (Approximate)	1.87 lb
Total Number of Ports	8
Wireless LAN Standard	IEEE 802.11a/b/g/n/ac/ax/i
Additional Information	<li>Operating system - SonicOS 8</li> <li>Interfaces - 8x1GbE, 2x 5/2.5/1G SFP+, 1 USB (type-C), 1 console (Micro-USB)</li> <li>Wireless Support - 2x2 802.11ax (TZ 380W)</li> <li>Storage /(expansion) - (Optional: Up to 512 GB)</li> <li>Centralized Management - Network Security Manager (NSM) 3.0 and above, CLI, SSH, Web UI, REST APIs</li> <li>Logical VLAN and tunnel interfaces (maximum) - 128</li> <li>SAML Single Sign-On (SSO) Users - 1,000</li> <li>Access points supported (maximum) - 16</li> <li>Firewall inspection throughput - 3.5 Gbps</li> <li>Threat prevention throughput - 1.5 Gbps</li> <li>Application inspection throughput - 2 Gbps</li> <li>IPS throughput - 2 Gbps</li> <li>Anti-malware inspection throughput - 2 Gbps</li> <li>TLS/SSL inspection and decryption throughput - 600 Mbps</li> <li>IPSEC VPN throughput - 1.6 Gbps</li> <li>Connections per second - 15,000</li> <li>Maximum connections (SPI) - 1,100,000</li> <li>Maximum connections (DPI) - 250,000</li> <li>Maximum connections (TLS) - 40,000</li> <li>Site-to-site VPN tunnels - 200</li> <li>IPSec VPN clients (maximum) - 5 (200)</li> <li>SSL-VPN licenses (maximum) - 2 (100)</li> <li>Encryption/authentication - AES (128, 192, 256-bit)/MD5, SHA-256, SHA-384, Suite B Cryptography</li> <li>Key exchange: Diffie Hellman Groups 1, 2, 5, 14v</li> <li>Route-based: VPN RIP, OSPF, BGP</li> <li>Certificate support - Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP</li> <li>VPN features - Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN</li> <li>Global VPN client platforms supported - Microsoft® Windows 7, Windows 8, Windows 8.1 and Windows 10</li> <li>NetExtender - Microsoft® Windows 10, Windows 10/11 and Linux</li> <li>Mobile Connect - Apple® iOS, Mac OS X, Google® Android™ Chrome OS, Windows</li> <li>IP address assignment - Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay</li> <li>NAT modes - 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode</li> <li>Routing protocols - BGP, OSPF, RIPv1/v2, static routes, policy-based routing</li> <li>QoS - Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)</li> <li>Authentication - LDAP (multiple domains), XAUTH/RADIUS,TACACS+, SAML SSO1, Radius accounting NTLM, internal user</li> <li>database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)</li> <li>VoIP - Full H3230v1.5 SIP</li> <li>Standards - TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3</li> <li>Certifications - IPv6</li> <li>High availability - Active/Standby with stateful synchronization</li> <li>Power supply (W) - 60</li> <li>Input power - 100-240 VAC, 50-60Hz</li> <li>Total heat dissipation (BTU) - 46.95</li> <li>WEEE weight (kg) - 1.18</li> <li>MTBF @25oC in years - 46.4</li> <li>Environment (Operating/Storage): 0°C to +40°C / -40°C to +70°C</li> <li>Humidity - 5-95% non-condensing</li> <li>Standards - 802.11a/b/g/n/ac/ax WPA,WPA2, WPA3, 802.11i, EAP-PEAP, EAP-TTLS</li> <li>Frequency bands - 802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz; 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz; 802.11ac: 5.180-5.825 GHz, 802.11ax; 5.180-5.825 GHz</li>
Connectivity Technology	Wired/Wireless
Number of VPN Supported	200
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Manufacturer Part Number	03-SSC-7442
Support/Service Duration	2 Year
Certifications & Standards	<ul><li>FCC Class B</li><li>ICES Class B</li><li>CE (EMC, LVD)</li><li>UL</li><li>cUL</li><li>Mexico DGN Notice by UL,</li><li>ANATEL</li><li>SCIP</li><li>RCM</li><li>MIC Terminal & Radio</li><li>VCCI Class B</li><li>KCC/MSIP</li><li>BSMI</li><li>NCC SRRC</li><li>MTCTE/TEC</li><li>CB</li></ul>
New Connections Per Second	15000
Manufacturer Website Address	http://www.sonicwall.com
Firewall Protection Supported	Gateway Antivirus
Number of Network (RJ-45) Ports	8
Total Number of Expansion Slots	2
