RPDU SWITCHED UNIT LV MONITORING EC 15A 120V 1.4KW

SKU: NP5777VPN: VP5N11A0

In Stock

$1,004.39

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
VP5N11A0 is a rack mount PDU with (6) NEMA 5-15R receptacles and a NEMA 5-15P plug

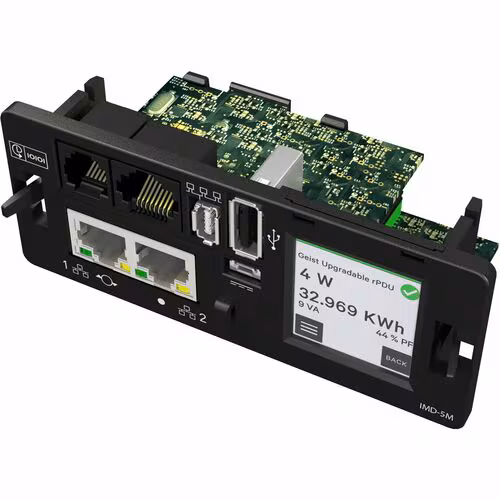

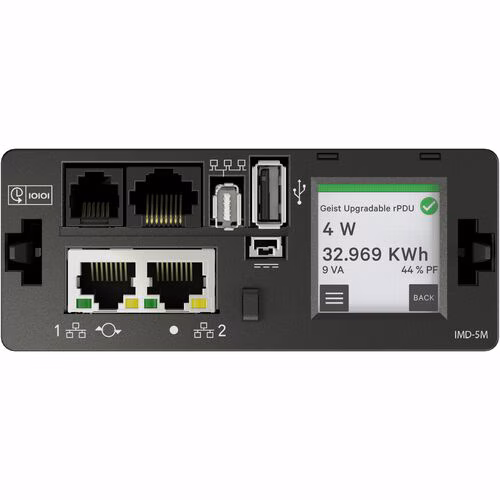

Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
Helps ensure that data and operations are protected with the enhanced security features
Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The Vertiv Geist Switched RPDU VP5N11A0 is a 15A, 120V, 1U, horizontal rack power distribution unit with input power monitoring and outlet level switching. It has (6) NEMA 5-15R receptacles and a NEMA 5-15P plug providing 1.4kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.

Tech Specs

RPDU SWITCHED UNIT LV MONITORING EC 15A 120V 1.4KW specifications
USB	Yes
Depth	12"
Phase	Single Phase
Width	17"
Height	1.7"
Features	Touch Screen Display
PDU Type	Switched
Brand Name	Vertiv Geist
Management	<li>DHCP </li><li>HTTP </li><li>HTTPS </li><li>IPv4 </li><li>IPv6 </li><li>LDAP </li><li>NTP </li><li>RADIUS </li><li>RSTP </li><li>SSH </li><li>SMTP </li><li>SNMP (v1/v2c/v3) </li><li>Syslog </li><li>TACACS+</li>
Mount Type	Rack-mountable
Cord Length	10 ft
Form Factor	Rack

Show all 47 specs

Rack Height	1U
Serial Port	Yes
Color Family	Black
Manufacturer	Vertiv
Product Line	Geist Upgradeable
Product Name	GU VP511A0 PDU
Product Type	PDU
Input Current	15 A
Input Voltage	120 V AC
Modem (RJ-11)	No
Modem (RJ-12)	Yes
Modem (RJ-22)	No
Product Color	Black
Product Model	MNS3E1R5-06S153-1ST5A0H10-S
TAA Compliant	Yes
Product Family	Geist Upgradeable N
Product Series	N
Network (RJ-45)	Yes
Receptacle Type	NEMA 5-15R
Country of Origin	United States
Receptacle Detail	6 x NEMA 5-15R
Input Voltage Range	100 V AC - 120 V AC
Plug/Connector Type	NEMA 5-15P
Power Rating (Watt)	1400 W
Mounting Orientation	Horizontal
Output Voltage Range	100 V AC - 120 V AC
Weight (Approximate)	10 lb
Plug/Connector Detail	1 x NEMA 5-15P
Remote Outlet Switching	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	VP5N11A0
Certifications & Standards	<li>UL</li><li>c-UL Listed 62368</li><li>c-UL Listed 60950</li>
Manufacturer Website Address	http://www.vertiv.com/
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
